Saab 900 1986-1989 Body Heating and ventilation

Group 8c Heating and ventilation, section 400

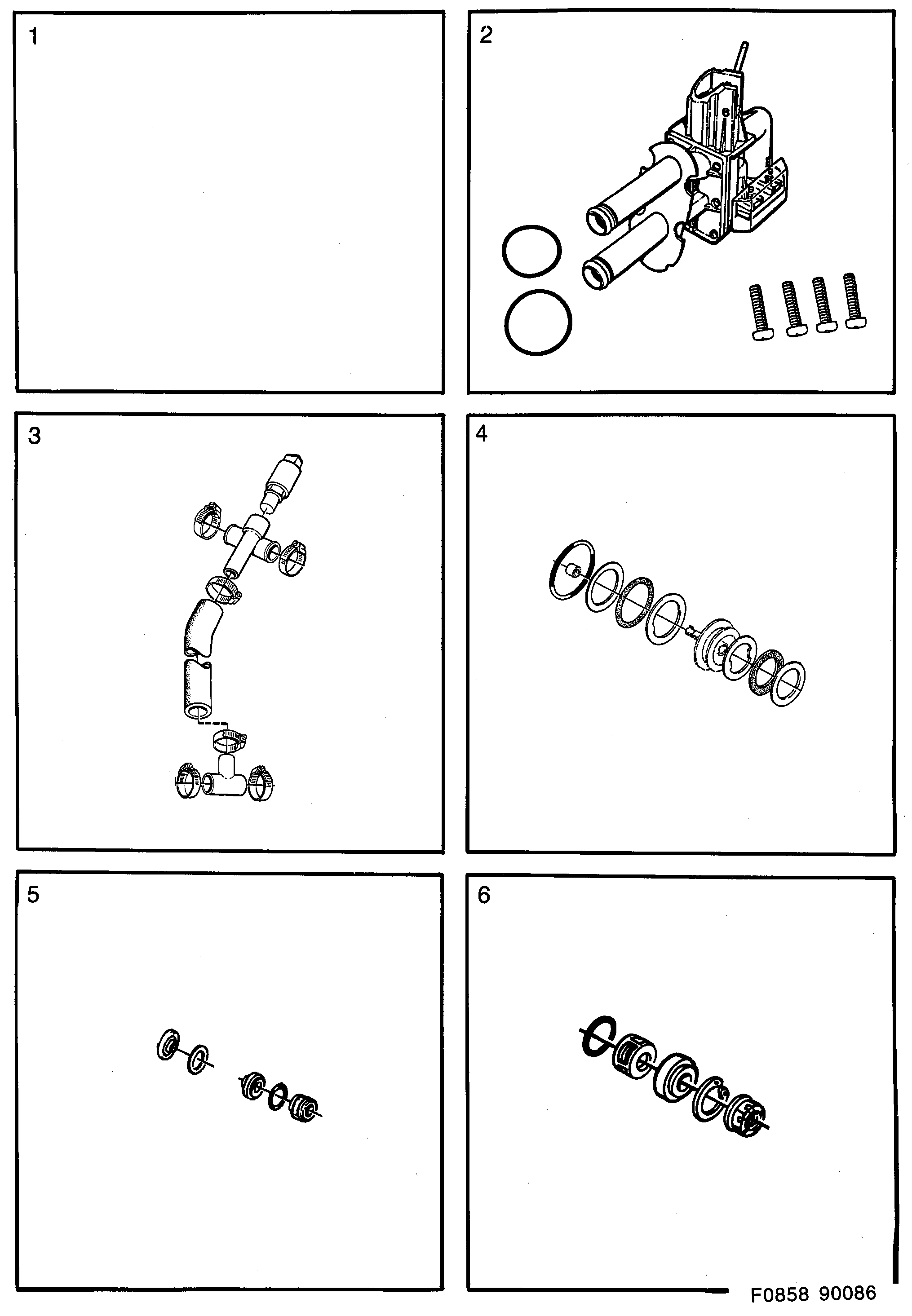

Saab 900 Body Heating and ventilation diagram
PosArticlePart No.
2Water valve9746322
Water valve9480997
O-ring9479213
O-ring9479221
Screw8097750
3Idling speed increase kit8605081
Hose7526338
T-pipe7528144
Hose clamp7975543
Nipple8317828
Solenoid valve8334005
4Ball bearing kit9746827
Thrust bearing9481847
Thrust bearing9481854
Seal9481862
5Sealing kit9482357
6Gasket kit8821597
