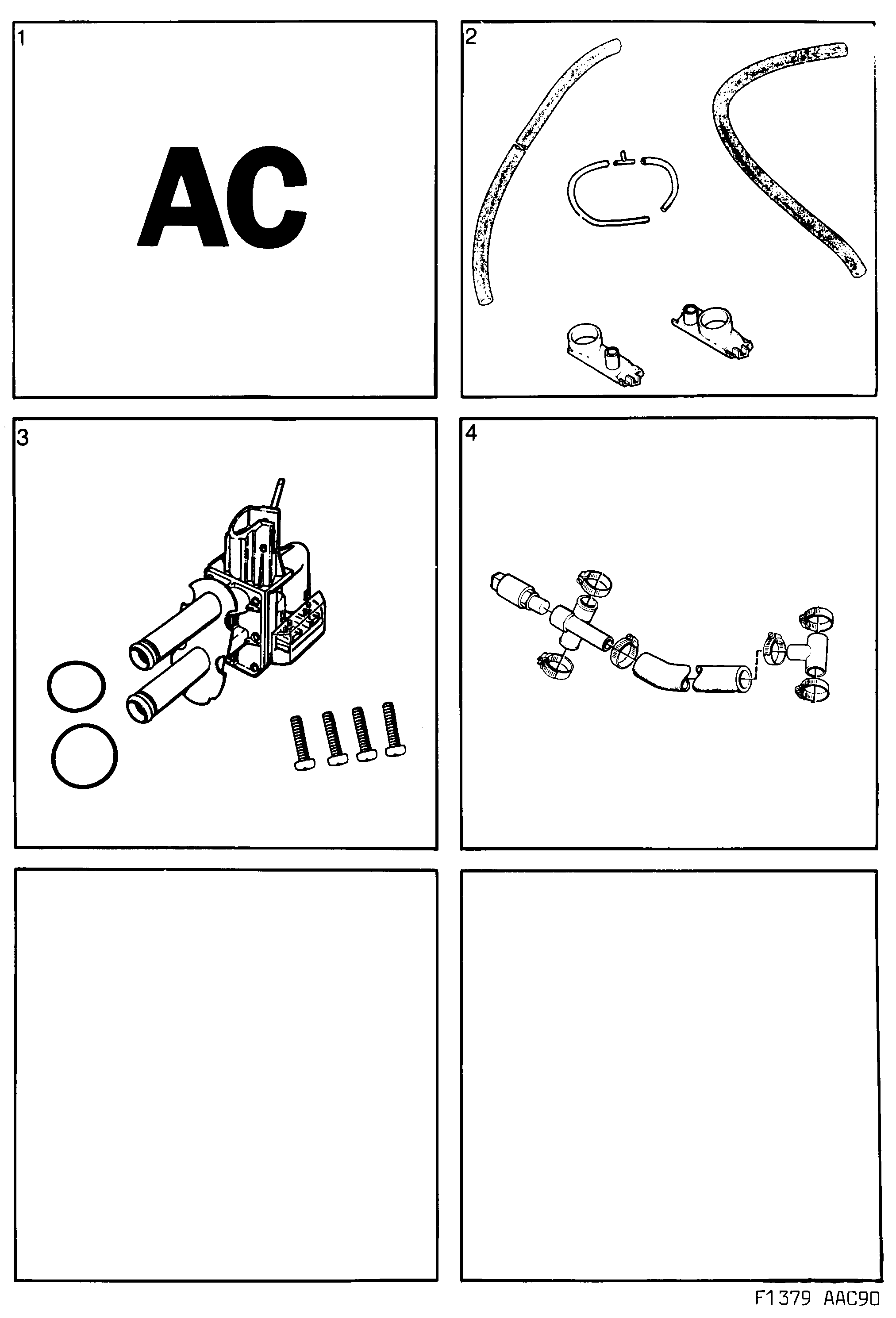

Group 8c Heating and ventilation, section 380
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air conditioning kit | 8605149 |
| Screw | 4027660 | |
| Clamp | 4029211 | |
| Compressor | 4070827 | |
| Reservoir | 4383527 (replaces 4070934) | |
| Condenser | 4382396 | |
| Plug | 7163074 | |
| Clamp | 7398373 | |
| Clamp | 7398530 | |
| Screw | 7399280 | |
| Screw | 4283198 (replaces 7512247) | |
| Protecting moulding | 7535487 | |
| Tension pulley | 7542228 | |
| Fan unit | 7548191 | |
| Fan shroud | 7548688 | |
| Bracket | 7549439 | |
| Screw | 7922420 | |
| Screw | 7922461 | |
| Lock nut | 7940398 | |
| Clip | 7965809 | |
| Nut | 7967979 | |
| Screw | 7970015 | |
| Hose clamp | 7970106 | |
| Tie strap | 7971872 | |
| Rivet | 92153058 (replaces 7972490) | |
| Nut | 92150136 (replaces 7973365) | |
| Nut | 92153044 (replaces 7974298) | |
| Fuse | 7974678 | |
| Screw | 7975030 | |
| Screw | 7977499 | |
| Screw | 8019713 | |
| Screw | 8019911 | |
| Screw | 8019945 | |
| Washer | 32000431 (replaces 9166356) | |
| Washer | 32000432 (replaces 9166372) | |
| Screw | 8059578 | |
| Washer | 8073108 | |
| Washer | 55564926 (replaces 8073249) | |
| Lock nut | 92150265 (replaces 8073512) | |
| Nut | 8074106 | |
| Nut | 11900440 (replaces 9166406) | |
| Screw | 8082943 | |
| Screw | 9166331 | |
| Screw | 8098113 | |
| Nut | 8151227 | |
| Seal | 8330268 | |
| Sleeve | 8356859 | |
| Relay | 8536401 | |
| Nut | 8566598 | |
| Solenoid valve | 8591117 | |
| Thermo contact | 8593766 | |
| Protecting moulding | 8599565 | |
| Pulley | 9330184 | |
| Pipe elbow | 9332826 | |
| Screw | 9339615 | |
| V-belt | 9367020 | |
| Lever | 9400896 | |
| Shaft | 9420241 | |
| Vacuum servo | 9420266 | |
| Spring | 9420274 | |
| Bracket | 9420282 | |
| Vacuum hose | 9420308 | |
| Pivot pin | 9422403 | |
| Dolly plate | 9438250 | |
| Clamp | 9441221 | |
| Nut | 9465600 | |
| Plug | 9480542 | |
| T-pipe | 9480575 | |
| Evaporator | 9480955 | |
| Spacer | 9481441 | |
| Clamp | 9481458 | |
| Stay pad | 9481664 | |
| Shutter | 9481680 | |
| Brace | 9481961 | |
| Hose | 9482027 | |
| Tube | 9482035 | |
| Hose | 9482365 | |
| Guard | 9482399 | |
| Vacuum hose | 9482563 | |
| Vacuum hose | 9482571 | |
| Connector housing | 9503426 | |
| Switch | 9523788 | |
| Switch | 9523846 | |
| Thermo contact | 4086724 (replaces 9526526) | |
| Resistor | 9550468 | |
| Clip | 9555913 | |
| Label | 9631300 | |
| 1 | Air conditioning kit | 9698291 |
| Screw | 7399603 | |
| Hose | 7526338 | |
| T-pipe | 7528144 | |
| Arm | 7543556 | |
| Screw | 7543606 | |
| Pin | 7543614 | |
| Nut | 11900429 (replaces 7967953) | |
| Tie strap | 11900513 (replaces 7971880) | |
| Nut | 92150143 (replaces 7971922) | |
| Screw | 30509216 (replaces 7975238) | |
| Hose clamp | 7975543 | |
| Washer | 7977440 | |
| Washer | 9166364 | |
| Screw | 8083974 | |
| Nipple | 8317828 | |
| Solenoid valve | 8334005 | |
| Relay | 8572190 | |
| Pulley | 4118964 | |
| Compressor | 9481979 | |
| Reservoir | 9482068 | |
| Connector housing | 9503418 | |
| Relay | 9513219 | |
| Cable harness | 9557505 | |
| Cable harness | 9561655 | |
| 1 | Air conditioning kit | 9698283 |
| Condenser | 4070918 | |
| 1 | Air conditioning kit | 8605198 |
| Compressor | 4071718 | |
| Brace | 4072492 | |
| Clip | 4073748 | |
| Label | 4074522 | |
| Label | 4074530 | |
| Bracket | 4118774 | |
| Tensioning arm | 4119780 | |
| Screw | 4283198 | |
| Tie strap | 7971864 | |
| Pipe | 12791937 (replaces 8366791) | |
| Lock screw | 9345232 | |
| Vacuum hose | 9482589 | |
| 2 | Defroster jet | 9746249 |
| Throttle body | 9480153 | |
| Throttle body | 9480187 | |
| Hose | 9401332 | |
| Plug | 9480252 | |
| Vacuum hose | 9480278 | |
| Rivet | 7958770 | |
| 3 | Water valve | 9746322 |
| Water valve | 9480997 | |
| O-ring | 9479213 | |
| O-ring | 9479221 | |
| Screw | 8097750 | |
| 3 | Water valve | 8605388 |
| Water valve | 4074407 | |
| 4 | Idling speed increase kit | 8605081 |
