Saab 900 1986-1986 AC compressor (Clarion)

Group 8c Heating and ventilation, section 340

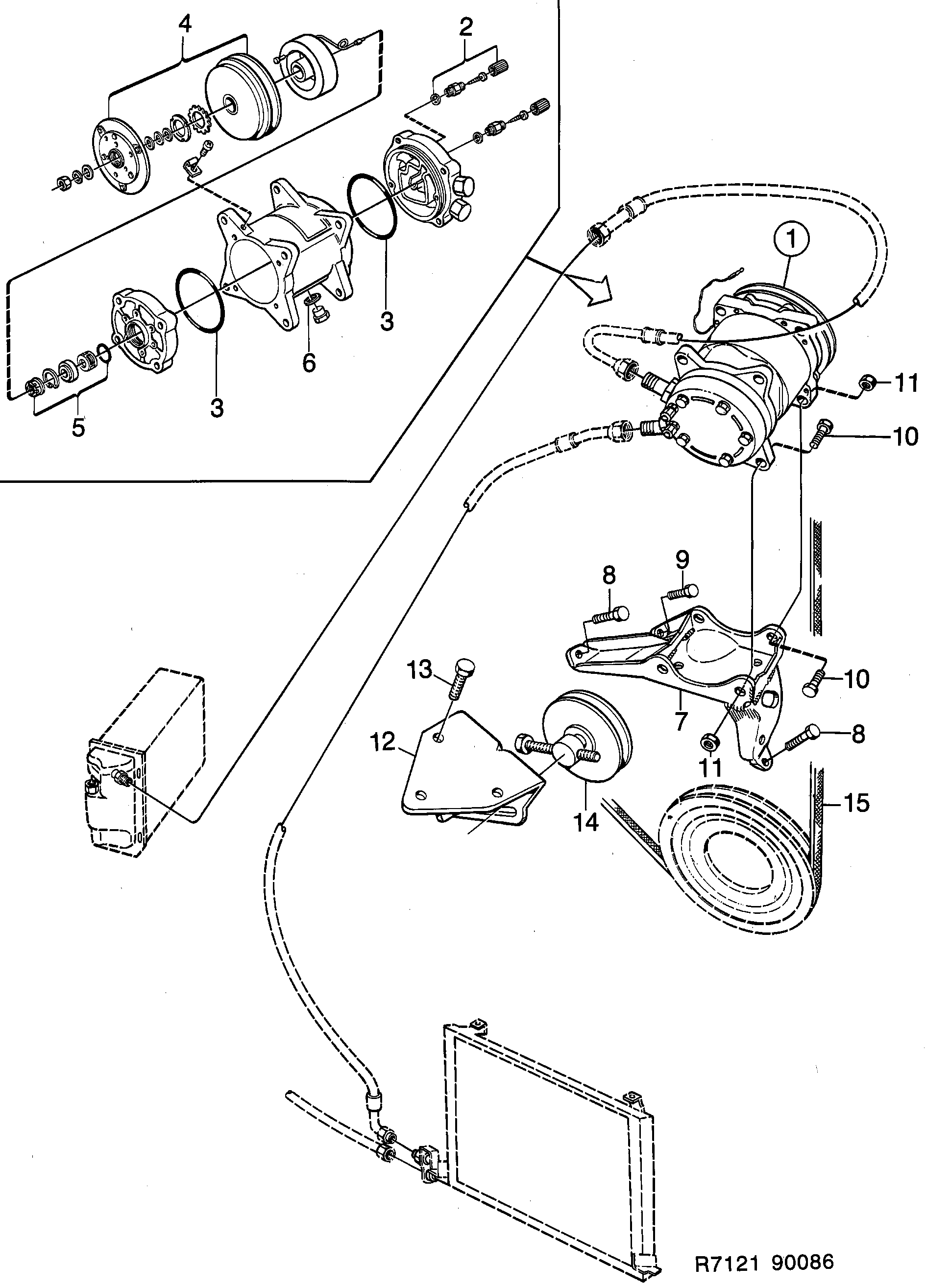

Saab 900 AC compressor (Clarion) diagram
PosArticlePart No.
1Compressor8820987
2Valve8821571
3O-ring8821605
4Clutch8820995
5Gasket kit8821597
6Gasket kit8821589
7Bracket9331562
8Screw9339615
9Screw9339623
10Screw8148223 (replaces 8083164)
11Nut8151243 (replaces 8029779)
12Bracket8821001
13Screw8082943
14Arm8820128
15V-belt9344623
Air conditioning8820029
Cable harness kit8820052
Cable harness kit8820045
Idling speed increase kit8821647
Accessories kit9746710
