Saab 900 1994-1998 AC condenser

Group 8c Heating and ventilation, section 330

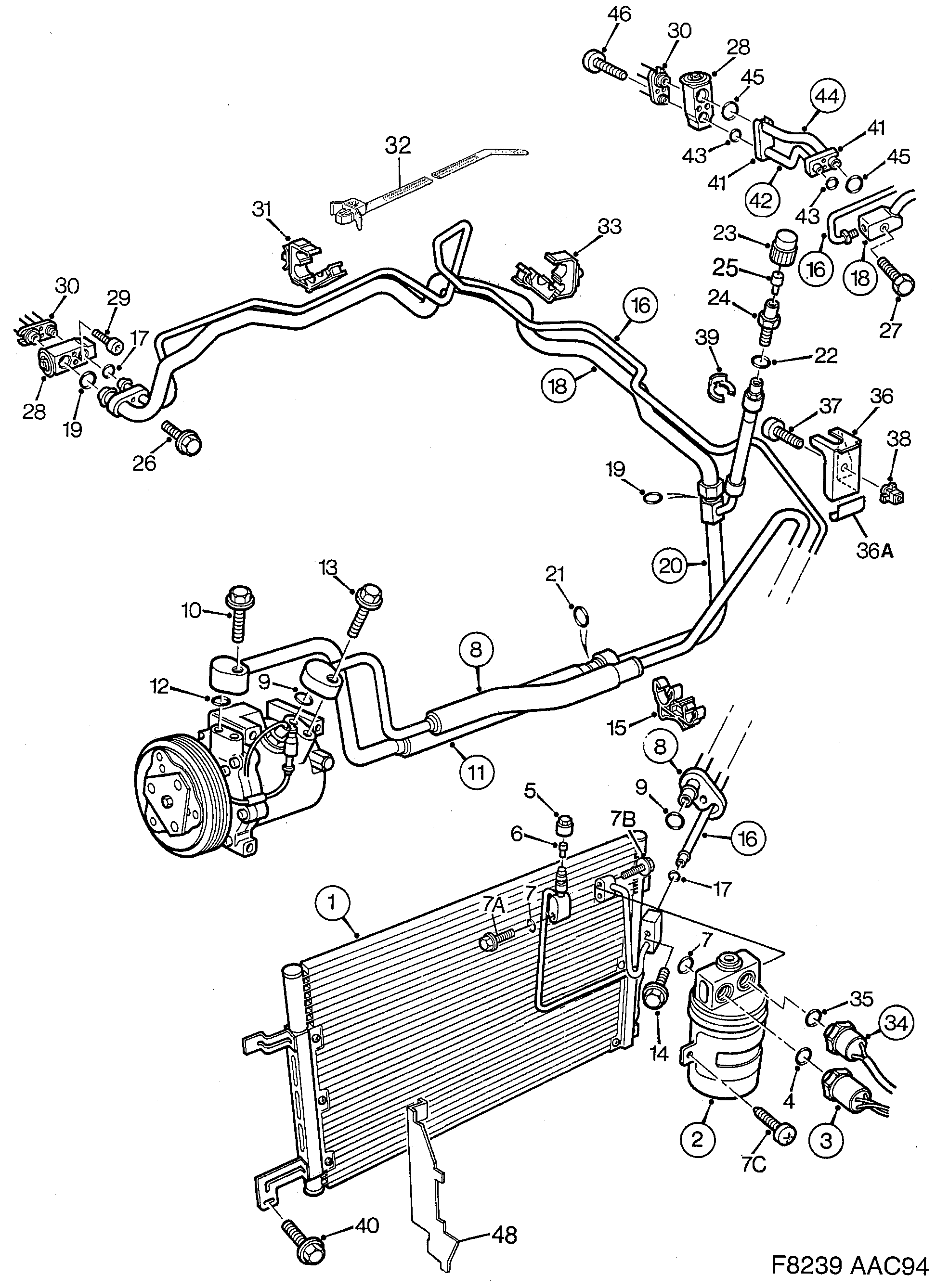

Saab 900 AC condenser diagram

Pos	Article	Part No.
1	Condenser	4230470
1	Condenser	4383774
1	Condenser	4634937
2	Reservoir	7496847 (replaces 4230462)
3	Pressure monitor	4383170
4	O-ring	4073979
5	Plug	4383956
6	Valve	4542353
7	O-ring	4542346
7A	Screw	4542338
7B	Screw	4542320
7C	Screw	4542361
8	Hose	4230488
9	O-ring	30541941 (replaces 4318036)
10	Screw	11900368 (replaces 7978224)
11	Hose	4230496
12	O-ring	4318044
13	Screw	92150019 (replaces 7978257)
14	Screw	7978174
15	Fastener	5045950 (replaces 4365136)
16	Tube	4365201
16	Tube	4868352 (replaces 4632303)
16	Tube	4365508
16	Tube	4868378 (replaces 4365227)
17	O-ring	30541940 (replaces 4318028)
18	Tube	4365219
18	Tube	4868600 (replaces 4632352)
18	Tube	4868600
18	Tube	4365516
18	Tube	4365235
19	O-ring	30541943 (replaces 4318051)
20	Hose	4365375
23	Plug	4367074
24	Valve	4365987
25	Valve	4367991
26	Screw	11900355 (replaces 7978117)
28	Expansion valve	5045166
29	Screw	8097800
31	Clip	4365110
32	Tie strap	9528019
33	Clip	4365128
34	Pressure monitor	4383188
36	Bracket	4335543
36A	Wear protection	7268972
37	Screw	7922370
38	Press nut	92150170 (replaces 7982929)
39	Lock ring	7533136
40	Screw	92153149 (replaces 7977465)
41	Tensioning plate	4634416 (replaces 4366589)
41	Tensioning plate	4634416
41	Tensioning plate	4634481
42	Tube	7495112
44	Tube	7495120
46	Screw	7985401
48	Cover	4367967
48	Cover	4367959
48	Cover	4383899
48	Cover	4383881
	Wear protection	4867008 (replaces 9106113)
	Protecting moulding	8278558
	Edge protection moulding	4867008
	Edge protection moulding	4867016
