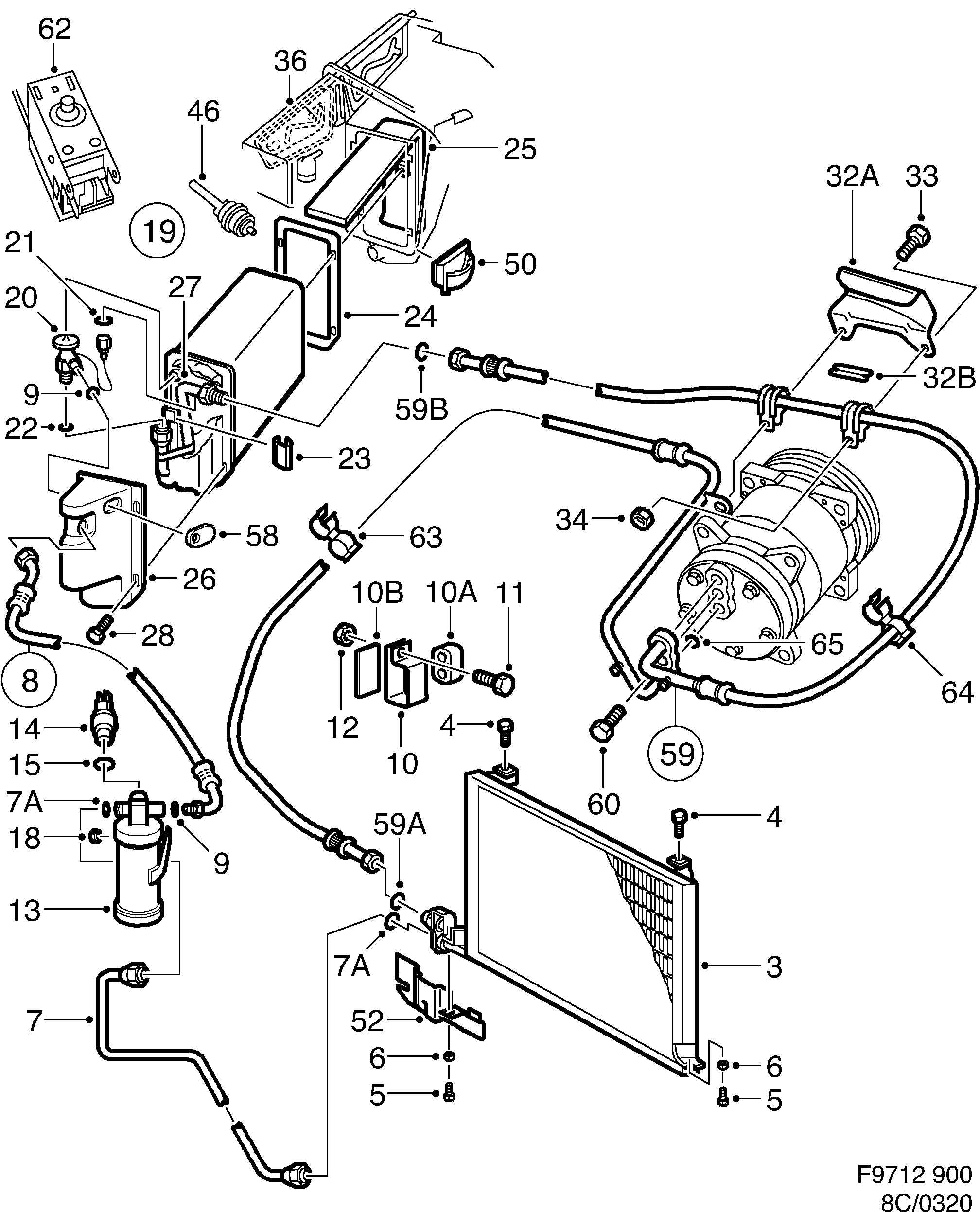

Group 8c Heating and ventilation, section 320
| Pos | Article | Part No. |
|---|---|---|
| 3 | Condenser | 4070918 |
| 3 | Condenser | 4382396 |
| 4 | Screw | 8059578 |
| 5 | Screw | 7922420 |
| 5 | Screw | 7973001 |
| 6 | Washer | 8029951 |
| 7 | Tube | 9482035 |
| 7A | O-ring | 30541940 (replaces 7972086) |
| 8 | Hose | 9482027 |
| 10 | Clamp | 9481458 |
| 10A | Spacer | 9481441 |
| 10B | Stay pad | 9481664 |
| 11 | Screw | 8019911 |
| 12 | Nut | 8151227 |
| 13 | Reservoir | 4383527 (replaces 4070934) |
| 14 | Switch | 9480005 |
| 15 | O-ring | 4073979 (replaces 9473851) |
| 18 | Nut | 8151235 |
| 19 | Evaporator | 9480955 |
| 20 | Valve | 9480914 |
| 21 | O-ring | 7972078 |
| 22 | O-ring | 30541941 (replaces 7972094) |
| 23 | Clamp | 9629197 |
| 24 | Seal | 9480245 |
| 25 | Seal | 9479627 |
| 26 | Cover | 9481185 |
| 27 | Insulation | 9401944 |
| 28 | Screw | 7922461 |
| 32A | Brace | 9481961 |
| 32A | Brace | 4072492 |
| 32B | Protecting moulding | 7535487 |
| 33 | Screw | 7977499 |
| 34 | Lock nut | 92150265 (replaces 8073512) |
| 50 | Clamp | 9479940 |
| 52 | Guard | 9482399 |
| 58 | Grommet | 9481193 |
| 59 | Hose | 9482365 |
| 59B | O-ring | 4318044 (replaces 7972482) |
| 60 | Screw | 7399280 |
| 63 | Clamp | 7398373 |
| 64 | Clamp | 7398530 |
