Saab 900 1986-1989 AC evaporator Sanden

Group 8c Heating and ventilation, section 310

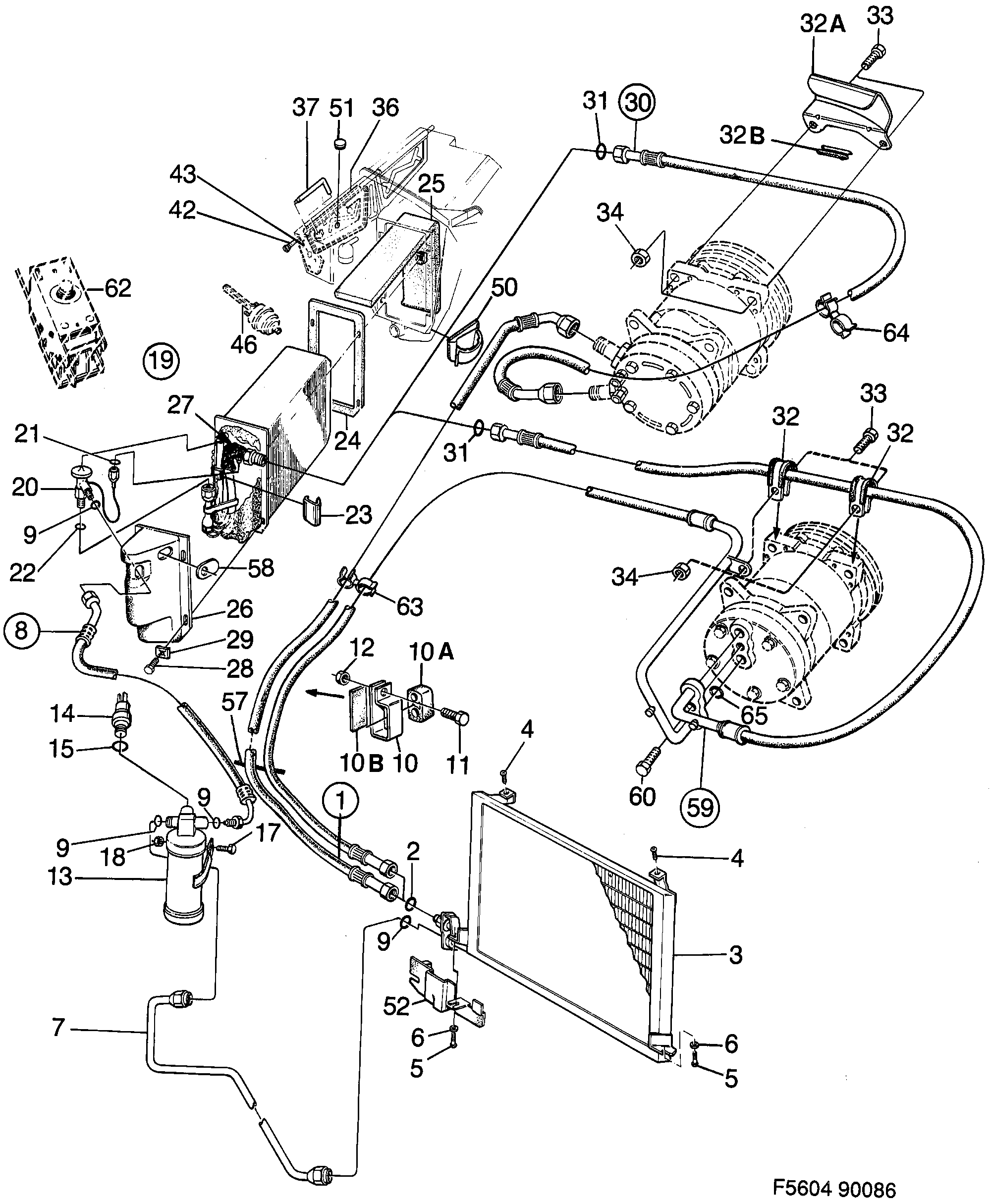

Saab 900 AC evaporator Sanden diagram

Pos	Article	Part No.
1	Hose	9481540
1	Hose	9482019
2	O-ring	30541941 (replaces 7972094)
3	Condenser	9401951
3	Condenser	4070918
4	Screw	8059578
5	Screw	7922420
6	Washer	8029951
7	Tube	9481466
7	Tube	9482035
8	Hose	9481391
8	Hose	9482027
9	O-ring	30541940 (replaces 7972086)
10	Clamp	9481458
10A	Spacer	9481441
10B	Stay pad	9481664
11	Screw	8019911
12	Nut	8151227 (replaces 8029555)
12	Nut	8151227
13	Reservoir	4383543 (replaces 9481482)
13	Reservoir	9482068
14	Switch	9480005
15	O-ring	4073979 (replaces 9473851)
17	Screw	8098089
18	Nut	8074106
18	Nut	8151235
19	Evaporator	9480955
20	Valve	9480914
21	O-ring	7972078
23	Clamp	9629197 (replaces 9479536)
23	Clamp	9629197
24	Seal	9480245
25	Seal	9479627
26	Cover	9481185
27	Insulation	9401944
28	Screw	7922461
29	Nut	9465600
30	Hose	9480773
31	O-ring	4318044 (replaces 7972482)
32	Clamp	9480898
32A	Brace	9481961
32B	Protecting moulding	7535487
33	Screw	8019945
33	Screw	7977499 (replaces 8019978)
33	Screw	7977499
34	Lock nut	92150265 (replaces 8073512)
36	Shutter	9481680
37	Shaft	9420241
42	Pivot pin	9422403
43	Dolly plate	9438250
50	Clamp	9479940
51	Plug	7163074
52	Guard	9482399
57	Protecting moulding	8278558
58	Grommet	9481193
59	Hose	9481532
59	Hose	9482001
59	Hose	9482365
60	Screw	7900335
60	Screw	7399280
63	Clamp	7398373
64	Clamp	7398530
