Saab 900 1990-1993 AC compressor

Group 8c Heating and ventilation, section 290

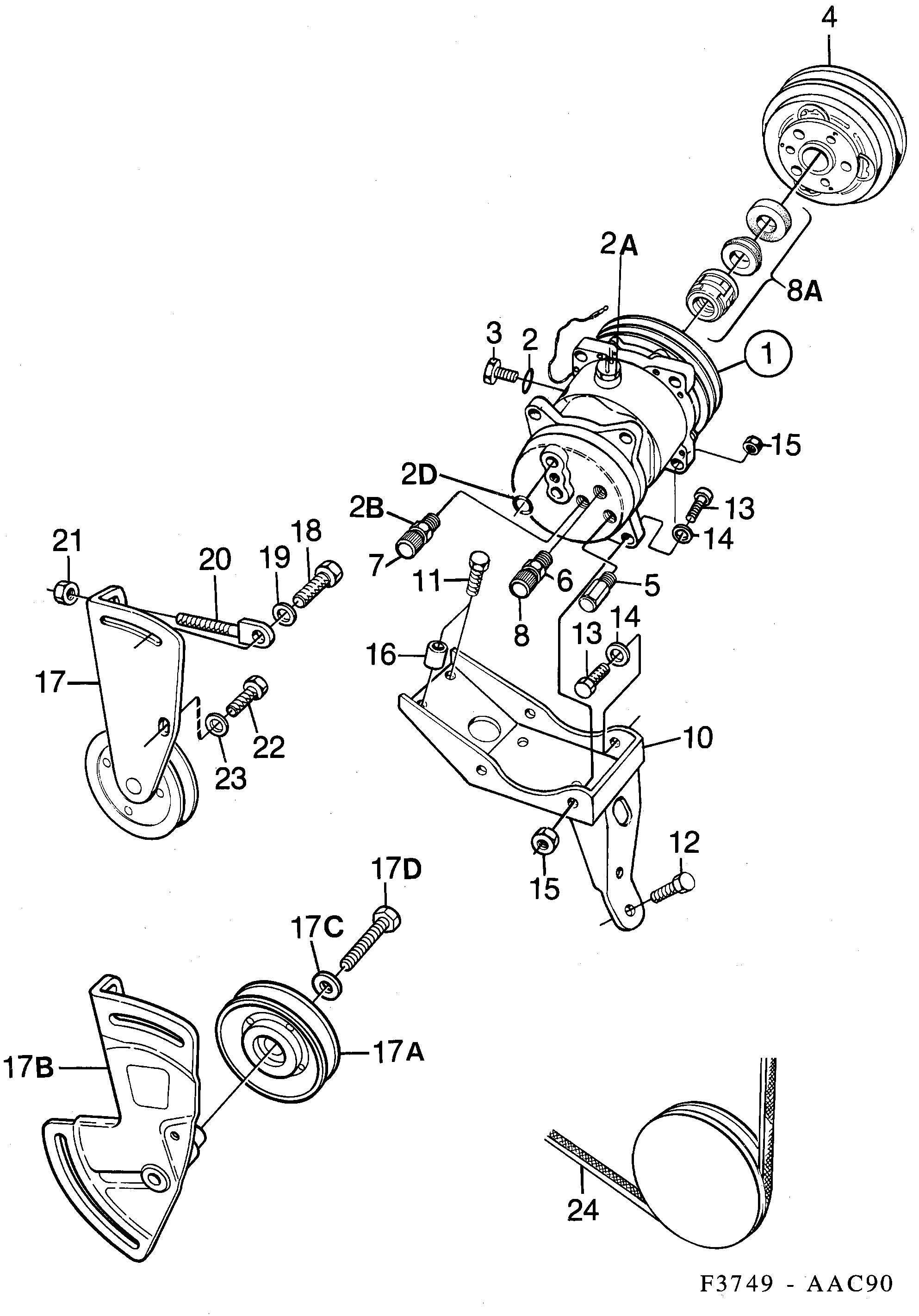

Saab 900 AC compressor diagram

Pos	Article	Part No.
1	Compressor	4070827
1	Compressor	4073995
1	Compressor	4071718
2	Seal	9482217
2A	Switch	9481995
2B	Valve	9482225
2D	O-ring	7972318
3	Plug	9482209
4	Clutch	9481987
4	Clutch	4073227
5	Valve	4070835
6	Valve	4071411
7	Plug	4071593
8	Plug	4071585
8A	Sealing kit	4074944
10	Bracket	7549439
10	Bracket	4118774
11	Screw	8098113
12	Screw	9339615
13	Screw	7975030
14	Washer	8073108
15	Nut	7967979
16	Sleeve	8356859
17	Tension pulley	7542228
17A	Pulley	4118964
17B	Tensioning arm	4119780
17D	Lock screw	9345232
18	Screw	55562873 (replaces 8082968)
18	Screw	9166331
19	Washer	92153033 (replaces 8029985)
19	Washer	32000432 (replaces 9166372)
20	Screw	4283198 (replaces 7512247)
20	Screw	4283198
21	Nut	11900440 (replaces 8074288)
21	Nut	11900440 (replaces 9166406)
22	Screw	8082943
23	Washer	55564926 (replaces 8073249)
24	V-belt	9367020
	Oil	9482043
