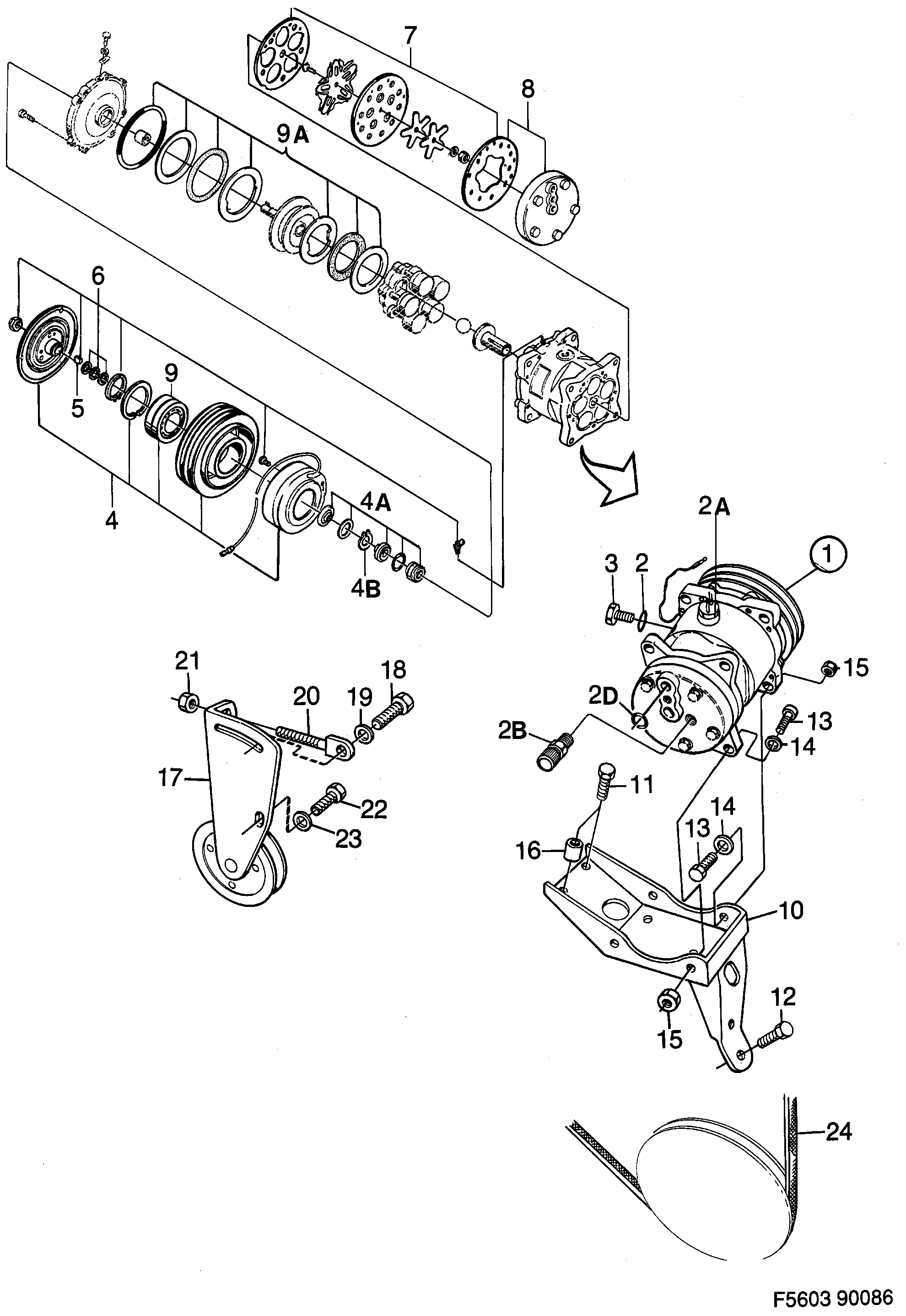

Group 8c Heating and ventilation, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Compressor | 9481516 |
| 1 | Compressor | 9481979 |
| 2 | O-ring | 9479486 |
| 2 | Seal | 9482217 |
| 2A | Switch | 9481995 |
| 2B | Valve | 9482225 |
| 2D | O-ring | 7972318 |
| 3 | Plug | 9479478 |
| 3 | Plug | 9482209 |
| 4 | Clutch | 9481037 |
| 4 | Clutch | 9481987 |
| 4A | Sealing kit | 9482357 |
| 4A | Sealing kit | 4074944 |
| 4B | Snap ring | 9482381 |
| 5 | Key | 9479726 |
| 6 | Accessories kit | 9479734 |
| 7 | Gasket kit | 9479742 |
| 8 | Cylinder head | 9481052 |
| 9 | Ball bearing | 9480856 |
| 9A | Ball bearing kit | 9746827 |
| 10 | Bracket | 9365834 |
| 10 | Bracket | 7549439 |
| 11 | Screw | 8098113 |
| 12 | Screw | 9339615 |
| 13 | Screw | 7975030 |
| 14 | Washer | 8073108 |
| 15 | Nut | 7967979 |
| 16 | Sleeve | 8356859 |
| 17 | Tension pulley | 7542228 |
| 18 | Screw | 55562873 (replaces 8082968) |
| 19 | Washer | 92153033 (replaces 8029985) |
| 20 | Screw | 4283198 (replaces 7512247) |
| 21 | Nut | 11900440 (replaces 8074288) |
| 22 | Screw | 8082943 |
| 23 | Washer | 55564926 (replaces 8073249) |
| 24 | V-belt | 9367020 |
| Oil | 9482043 | |
| Air conditioning | 9626771 | |
| Air conditioning kit | 9698002 | |
| Air conditioning kit | 9698283 | |
| Idling speed increase kit | 8605081 |
