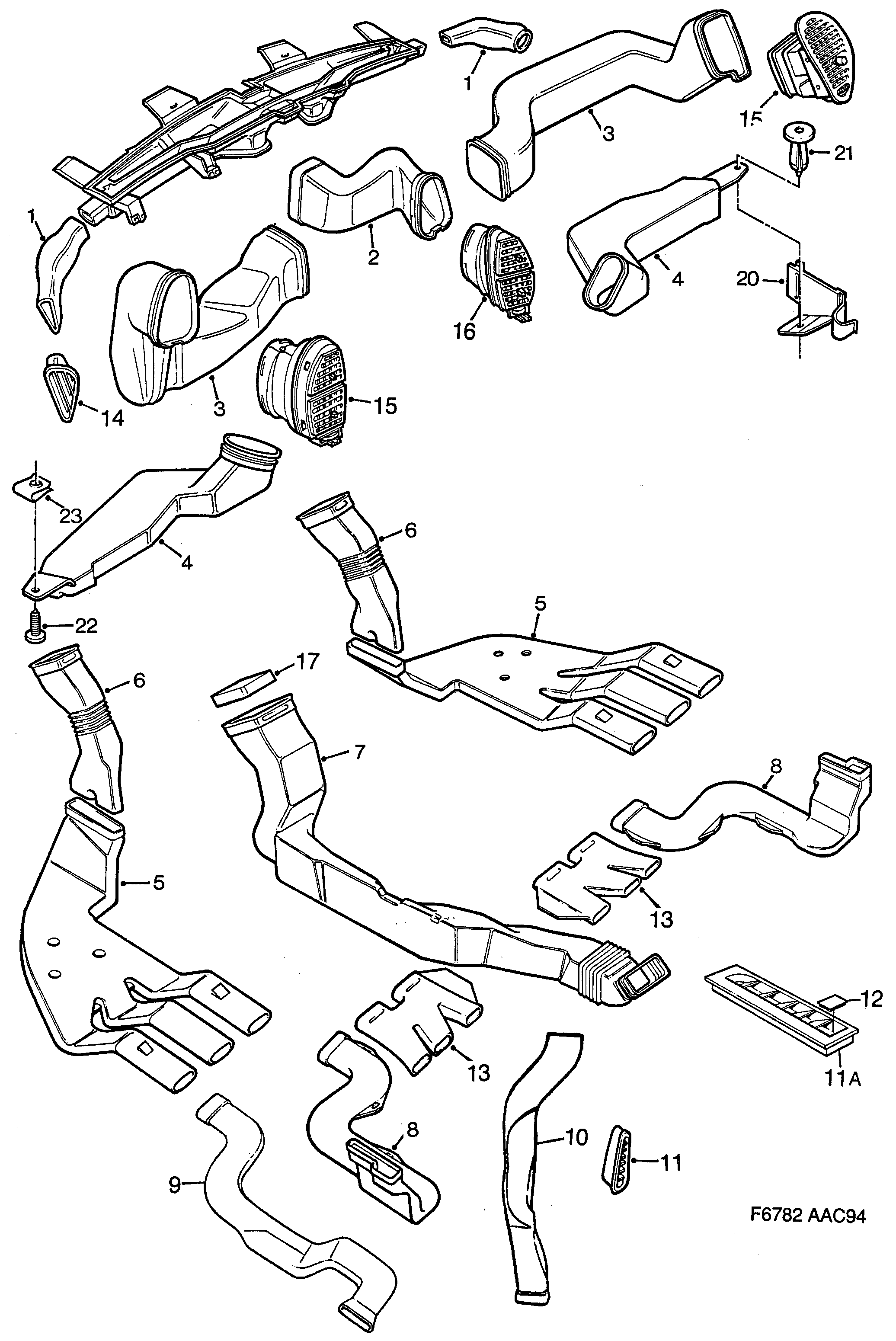

Group 8c Heating and ventilation, section 270
| Pos | Article | Part No. |
|---|---|---|
| 2 | Duct | 4221610 |
| 2 | Duct | 4221628 |
| 3 | Duct | 4221552 |
| 3 | Duct | 4221586 |
| 3 | Duct | 4221560 |
| 3 | Duct | 4221594 |
| 4 | Duct | 4221644 |
| 4 | Duct | 4221677 |
| 4 | Duct | 4221651 |
| 4 | Duct | 4221685 |
| 4 | Duct | 4758322 |
| 4 | Duct | 4758348 |
| 4 | Duct | 4758389 |
| 4 | Duct | 4758363 |
| 5 | Duct | 4364048 |
| 5 | Duct | 4364055 |
| 6 | Duct | 4364022 |
| 6 | Duct | 4364030 |
| 7 | Duct | 4365490 |
| 7 | Duct | 4755997 (replaces 4755336) |
| 7 | Duct | 4755997 |
| 8 | Duct | 4203766 |
| 8 | Duct | 4203774 |
| 9 | Duct | 4367603 |
| 9 | Duct | 4367611 |
| 10 | Duct | 4364683 |
| 10 | Duct | 4364691 |
| 11 | Air outlet | 4383709 |
| 11 | Air outlet | 4383717 |
| 11A | Air outlet | 4509717 |
| 11A | Air outlet | 4509725 |
| 12 | Cover washer | 4542833 |
| 12 | Cover washer | 4542841 |
| 13 | Duct | 4367975 |
| 13 | Duct | 4367983 |
| 17 | Plug | 4365482 |
| 20 | Bracket | 4364105 |
| 20 | Bracket | 4364113 |
| 21 | Expanding rivet | 4259248 |
| 22 | Screw | 92150118 (replaces 7970536) |
| 23 | Clip nut | 7968001 |
