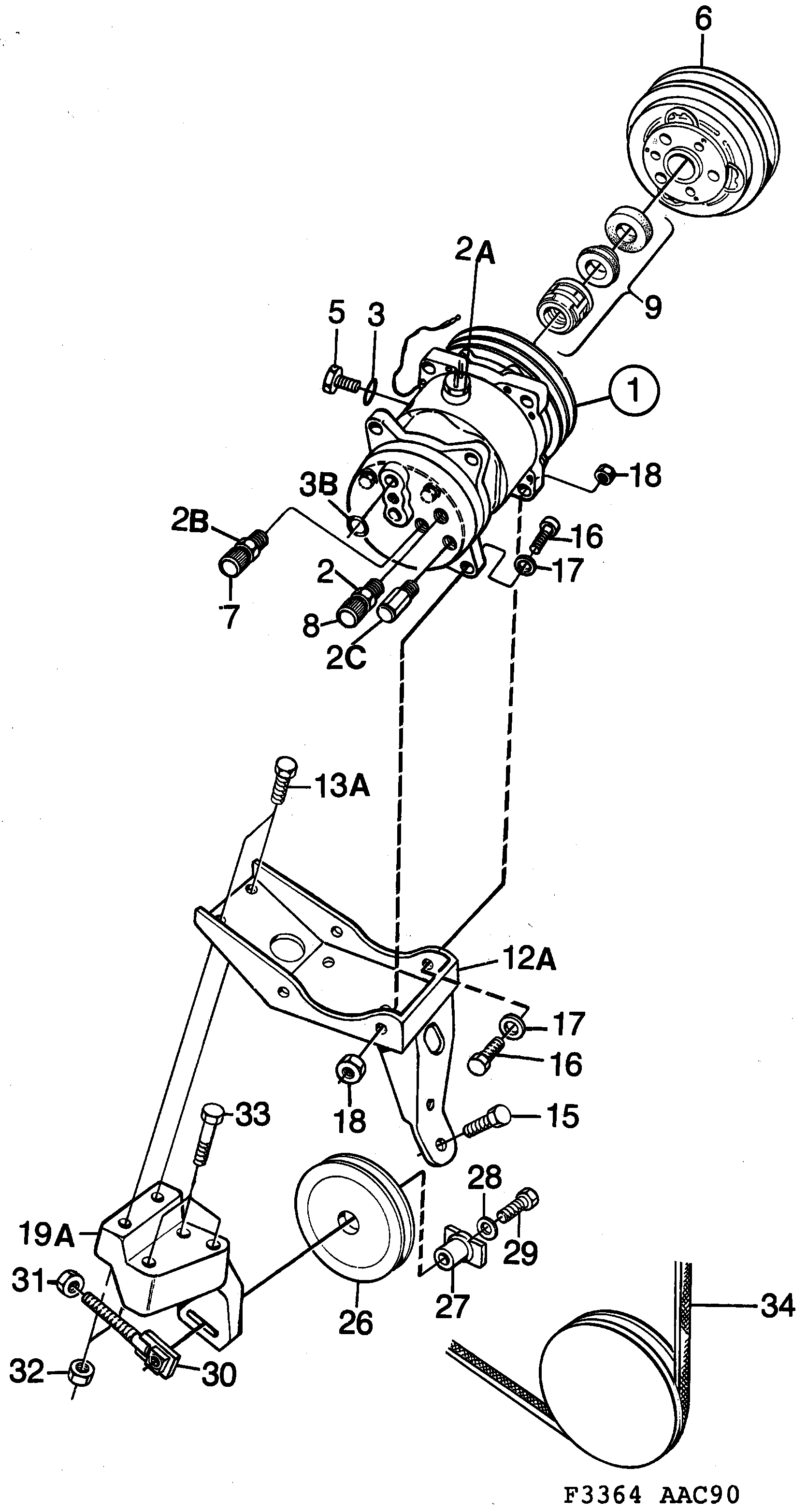

Group 8c Heating and ventilation, section 260
| Pos | Article | Part No. |
|---|---|---|
| 1 | Compressor | 4070827 |
| 1 | Compressor | 4073995 |
| 2 | Valve | 4071411 |
| 2A | Switch | 9481995 |
| 2B | Valve | 9482225 |
| 2C | Valve | 4070835 |
| 3 | Seal | 9482217 |
| 3B | O-ring | 7972318 |
| 5 | Plug | 9482209 |
| 6 | Clutch | 9481987 |
| 7 | Plug | 4071593 |
| 8 | Plug | 4071585 |
| 9 | Sealing kit | 4074944 |
| 12A | Bracket | 7549439 |
| 13A | Screw | 30509216 (replaces 7975238) |
| 15 | Screw | 9339615 |
| 16 | Screw | 7975030 |
| 17 | Washer | 8073108 |
| 18 | Nut | 7967979 |
| 19A | Arm | 7543556 |
| 26 | Pulley | 4118964 (replaces 9325663) |
| 26 | Pulley | 4118964 |
| 27 | Pin | 7543614 |
| 28 | Washer | 7977440 |
| 29 | Screw | 8083974 |
| 30 | Screw | 7543606 |
| 31 | Nut | 92150143 (replaces 7971922) |
| 32 | Nut | 11900429 (replaces 7967953) |
| 34 | V-belt | 9367020 |
| Oil | 9482043 |
