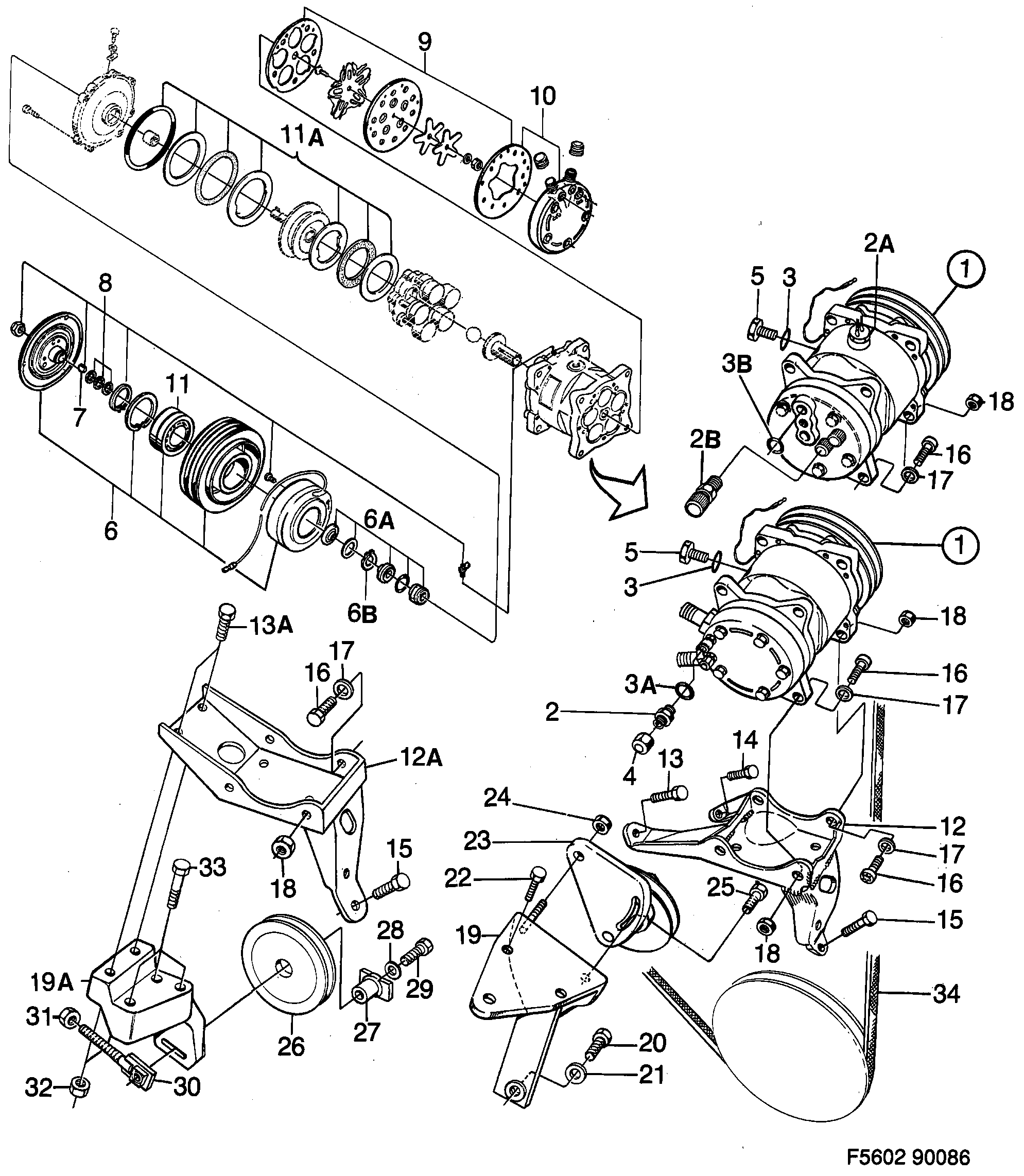

Group 8c Heating and ventilation, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Compressor | 9481508 |
| 1 | Compressor | 9481516 |
| 1 | Compressor | 9481979 |
| 2 | Valve | 9479452 |
| 2A | Switch | 9481995 |
| 2B | Valve | 9482225 |
| 3 | O-ring | 9479486 |
| 3 | Seal | 9482217 |
| 3B | O-ring | 7972318 |
| 4 | Plug | 9479460 |
| 5 | Plug | 9479478 |
| 5 | Plug | 9482209 |
| 6 | Clutch | 9481037 |
| 6 | Clutch | 9481987 |
| 6A | Sealing kit | 9482357 |
| 6A | Sealing kit | 4074944 |
| 6B | Snap ring | 9482381 |
| 7 | Key | 9479726 |
| 8 | Accessories kit | 9479734 |
| 9 | Gasket kit | 9479742 |
| 10 | Cylinder head | 9479759 |
| 10 | Cylinder head | 9481052 |
| 11 | Ball bearing | 9480856 |
| 11A | Ball bearing kit | 9746827 |
| 12 | Bracket | 9331562 |
| 12A | Bracket | 9365834 |
| 12A | Bracket | 7549439 |
| 13 | Screw | 9345190 |
| 13A | Screw | 30509216 (replaces 7975238) |
| 14 | Screw | 9339623 |
| 15 | Screw | 9339615 |
| 16 | Screw | 7975030 |
| 17 | Washer | 8073108 |
| 18 | Nut | 7967979 |
| 19 | Bracket | 7543002 |
| 19A | Arm | 7543556 |
| 20 | Screw | 55562873 (replaces 8082968) |
| 21 | Washer | 7061328 |
| 22 | Screw | 8082943 |
| 23 | Tension pulley | 9369109 |
| 24 | Nut | 11900429 (replaces 7967953) |
| 25 | Screw | 55562121 (replaces 7967938) |
| 26 | Pulley | 4118964 (replaces 9325663) |
| 27 | Pin | 7543614 |
| 28 | Washer | 7977440 |
| 29 | Screw | 8083974 |
| 30 | Screw | 7543606 |
| 31 | Nut | 92150143 (replaces 7971922) |
| 34 | V-belt | 9344623 |
| 34 | V-belt | 9367020 |
| Oil | 9482043 | |
| Air conditioning kit | 9698010 | |
| Air conditioning kit | 9698028 | |
| Air conditioning kit | 9698291 |
