Saab 900 1990-1993 Vacuum system

Group 8c Heating and ventilation, section 230

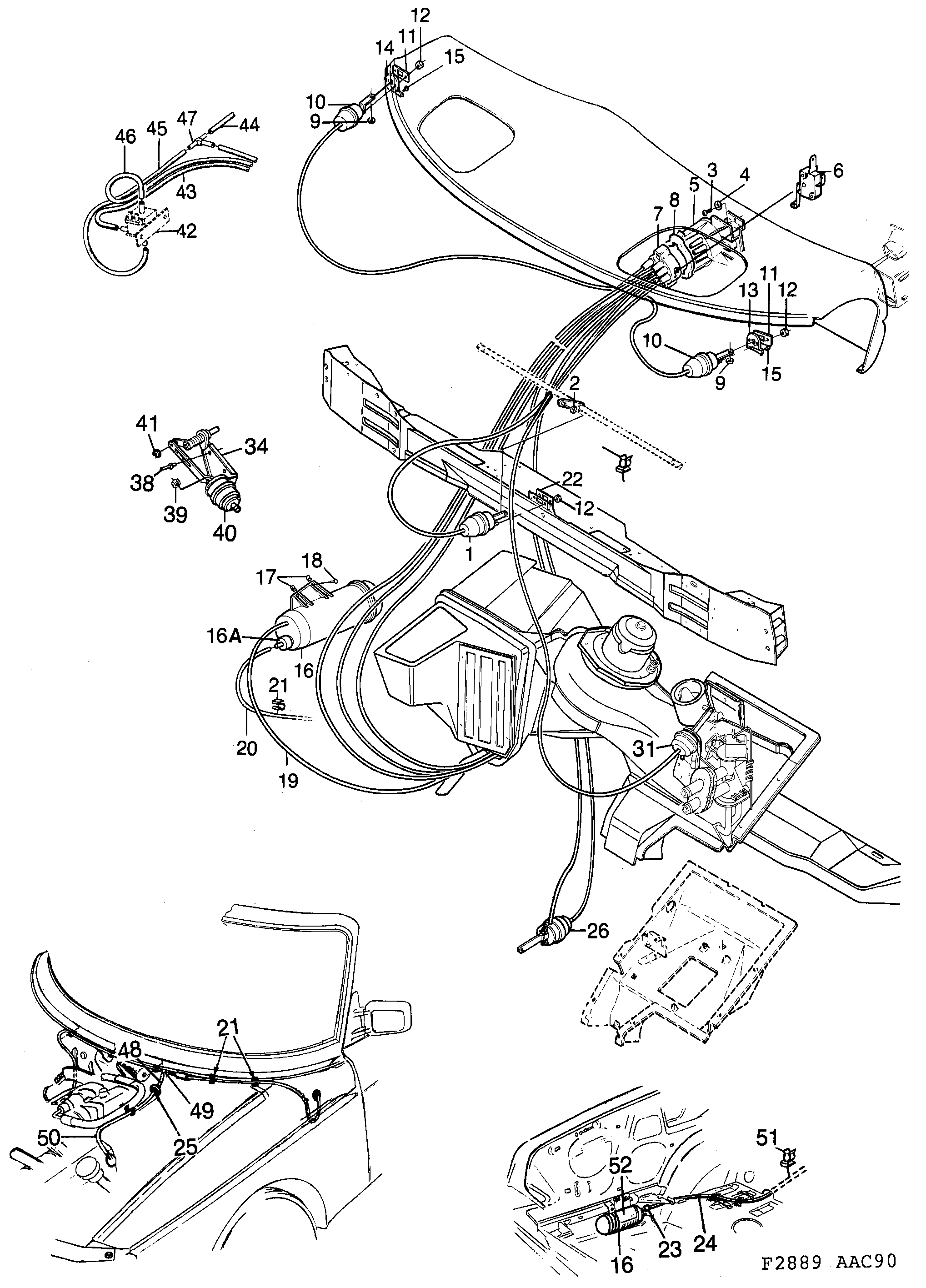

Saab 900 Vacuum system diagram

Pos	Article	Part No.
1	Vacuum servo	9420290
2	Clamp	9441221
3	Screw	7971393
4	Washer	92153032 (replaces 7916489)
5	Selector	4070454
6	Switch	4062964
7	Vacuum line	9482480
8	Washer	9444605
10	Vacuum servo	9430968
11	Washer	9450487
12	Nut	7940406
13	Bracket	9426651
14	Bracket	9426644
15	Rivet	7961709
16	Vacuum tank	9437906
16A	Check valve kit	8605107
17	Nut	9437955
18	Screw	7922891
19	Hose	9420092
19	Hose	9398421
20	Vaccum hose	9136243
21	Clip	7933443
22	Protecting casing	9473828
23	Hose	9398405
24	Hose	9398413
25	Check valve	12793343 (replaces 9326752)
39	Lock nut	7940398
40	Vacuum servo	9420266
43	Vacuum hose	9420308
44	Vacuum hose	9482571
45	Vacuum hose	9482563
46	Vacuum hose	9482589
47	Pipe	12791937 (replaces 8366791)
49	T-pipe	8544660
51	Clip	9324211
52	Spacer	9656901
