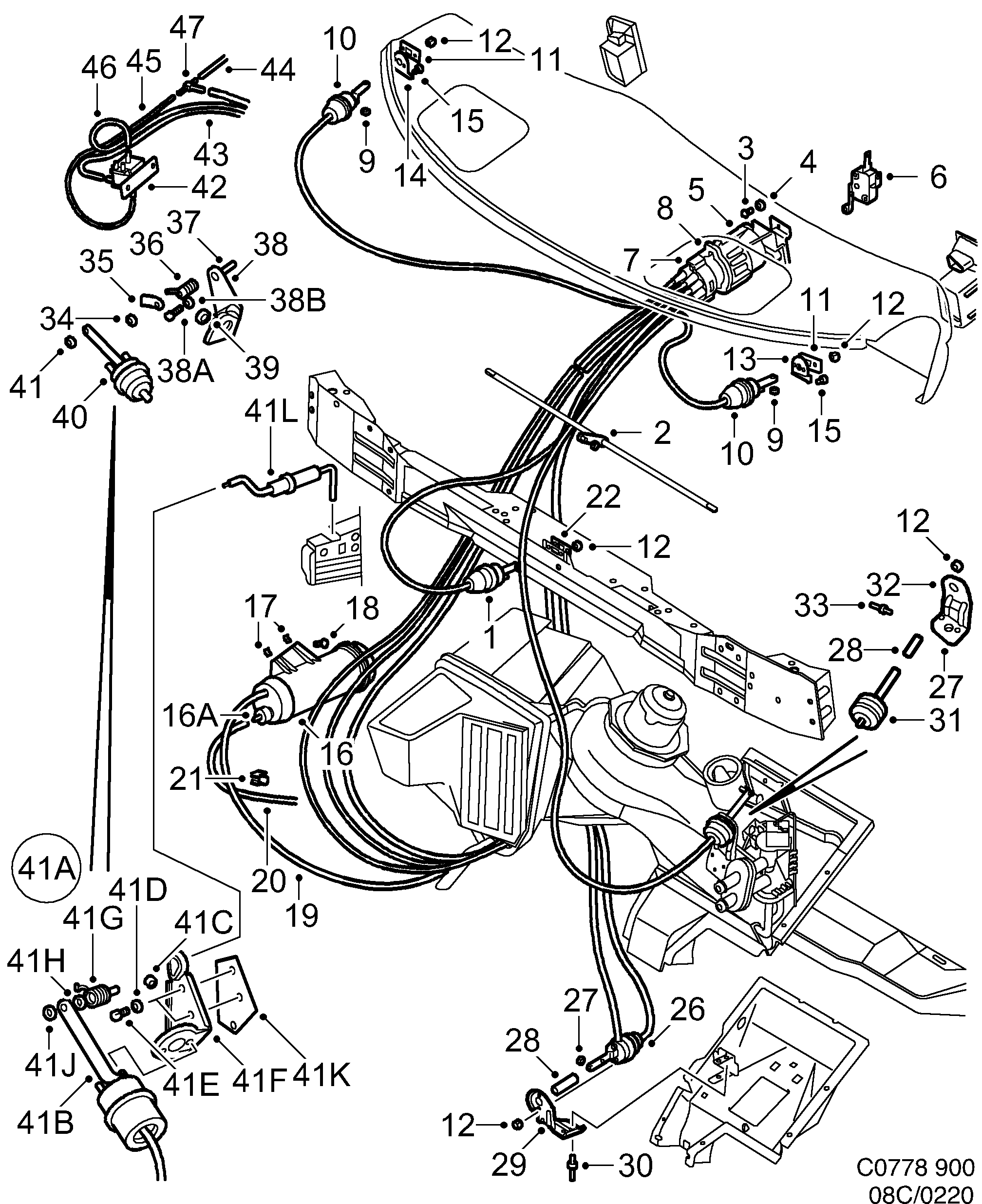

Group 8c Heating and ventilation, section 220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Vacuum servo | 9420290 |
| 2 | Clamp | 9441221 |
| 3 | Screw | 7971393 |
| 4 | Washer | 92153032 (replaces 7916489) |
| 5 | Selector | 9480641 |
| 5 | Selector | 9481649 |
| 5 | Selector | 4070454 |
| 6 | Switch | 8588626 |
| 6 | Switch | 4062964 |
| 7 | Vacuum regulator | 9426198 |
| 7 | Vacuum line | 9481607 |
| 7 | Vacuum line | 9482480 |
| 8 | Washer | 9444605 |
| 10 | Vacuum servo | 9430968 |
| 11 | Washer | 9450487 |
| 12 | Nut | 7940406 |
| 13 | Bracket | 9426651 |
| 14 | Bracket | 9426644 |
| 15 | Rivet | 7961709 |
| 16 | Vacuum tank | 9437906 |
| 16A | Check valve kit | 8605107 |
| 17 | Nut | 9437955 |
| 18 | Screw | 7922891 |
| 19 | Hose | 9420092 |
| 20 | Vaccum hose | 9136243 |
| 21 | Clip | 7933443 |
| 22 | Protecting casing | 9473828 |
| 26 | Vacuum servo | 9422940 |
| 26 | Vacuum servo | 9480534 |
| 28 | Protection | 9444811 |
| 29 | Bracket | 9417973 |
| 30 | Rivet | 92153058 (replaces 7972490) |
| 31 | Vacuum servo | 9479924 |
| 32 | Bracket | 9417924 |
| 33 | Rivet | 7972045 |
| 34 | Clip | 7965809 |
| 35 | Lever | 9400896 |
| 36 | Spring | 9420274 |
| 37 | Bracket | 9420282 |
| 39 | Lock nut | 7940398 |
| 40 | Vacuum servo | 9420266 |
| 41A | Vacuum servo | 8821126 |
| 41B | Vacuum servo | 8820417 |
| 41C | Nut | 8074098 |
| 41D | Washer | 7933807 |
| 41E | Screw | 8019531 |
| 41F | Bracket | 8820425 |
| 41G | Spring | 8820490 |
| 41H | Spacer | 8820508 |
| 41J | Clip | 8820474 |
| 41K | Dolly | 8820433 |
| 41L | Shaft | 8820441 |
| 43 | Vacuum hose | 9480559 |
| 43 | Vacuum hose | 9420308 |
| 44 | Vacuum hose | 9480567 |
| 44 | Vacuum hose | 9482571 |
| 45 | Vacuum hose | 9480278 |
| 45 | Vacuum hose | 9482563 |
| 46 | Vacuum hose | 9480666 |
| 46 | Vacuum hose | 9482589 |
| 47 | T-pipe | 9480575 |
