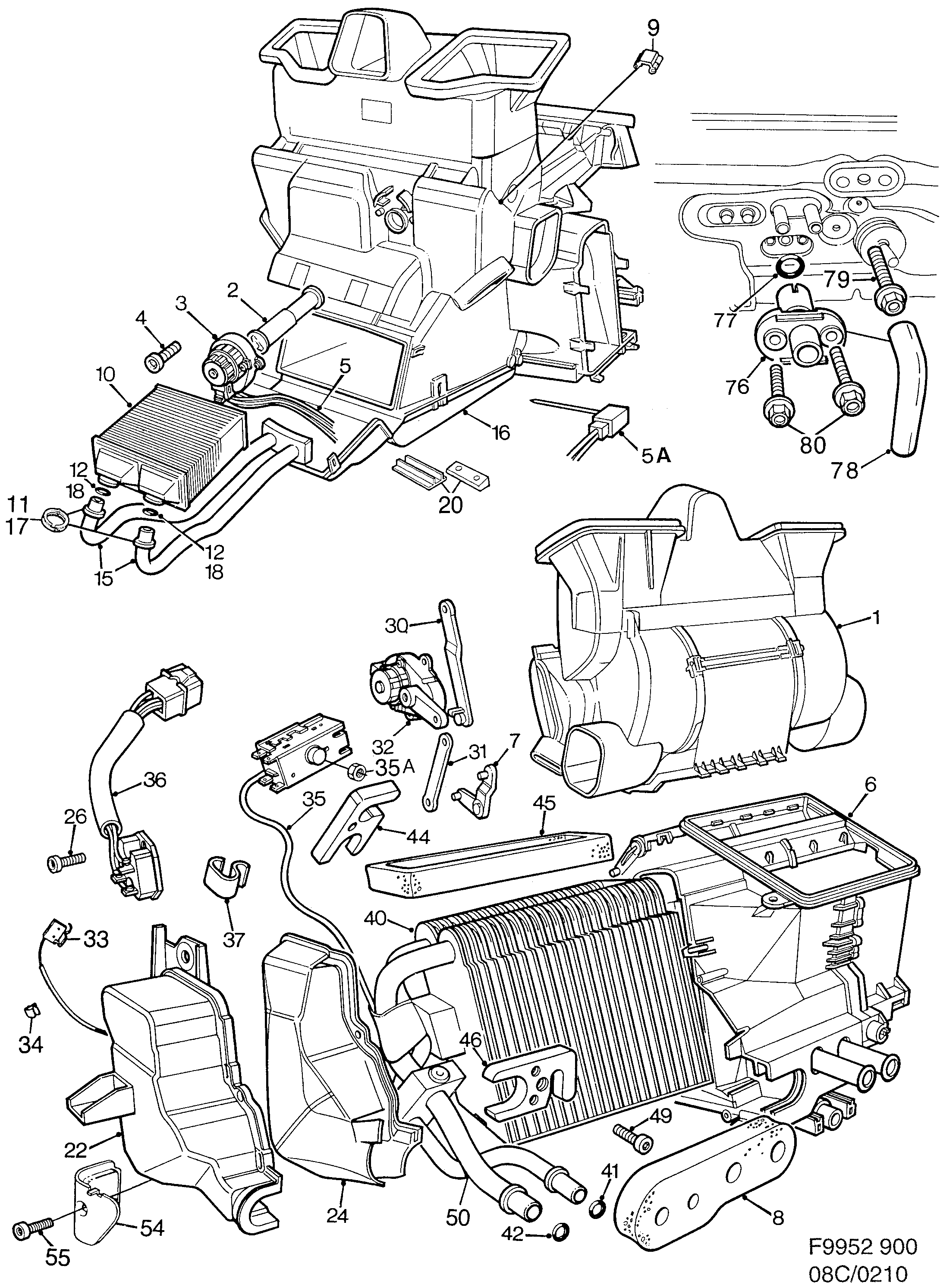

Group 8c Heating and ventilation, section 210
| Pos | Article | Part No. |
|---|---|---|
| 1 | Distribution housing | 5047865 (replaces 4366365) |
| 1 | Distribution housing | 5047865 (replaces 4635843) |
| 2 | Control shaft | 4364279 |
| 3 | Electrical motor | 5333919 (replaces 4365474) |
| 4 | Screw | 7971393 |
| 5 | Cable harness | 4366555 |
| 5 | Cable harness | 5045844 |
| 5A | Sensor | 9482597 |
| 5A | Sensor | 5045851 |
| 6 | Heat exchanger housing | 4755997 (replaces 4366373) |
| 6 | Heat exchanger housing | 4755997 (replaces 4635850) |
| 6 | Heat exchanger housing | 4366779 |
| 6 | Heat exchanger housing | 4635868 |
| 7 | Lever | 4542239 |
| 7 | Lever | 4366886 |
| 8 | Seal | 4366654 |
| 8 | Seal | 4634226 |
| 9 | Clamp | 9625989 |
| 10 | Heat exchanger | 8605495 |
| 11 | Snap-on coupling | 4366423 |
| 12 | O-ring | 4366431 |
| Insulation | 4635876 | |
| 15 | Pipe set | 7495005 |
| 15 | Pipe set | 7495021 |
| 16 | Oil pan | 4755443 (replaces 4366381) |
| 16 | Oil pan | 4366787 |
| 20 | Kit | 4542999 |
| 22 | Cover | 5334784 |
| 22 | Cover | 5334792 |
| 22 | Cover | 5334800 |
| 22 | Cover | 5334818 |
| 24 | Seal | 4366803 |
| 26 | Screw | 92151805 (replaces 8059230) |
| 30 | Link arm | 4366498 |
| 30 | Link arm | 4366837 |
| 31 | Link arm | 4366506 |
| 31 | Link arm | 4634978 |
| 31 | Link arm | 4366662 |
| 31 | Link arm | 4634960 |
| 32 | Electrical motor | 4365466 |
| Bracket | 4635884 | |
| Pivot arm | 4635900 | |
| 33 | Microswitch | 4632279 |
| 34 | Clamp | 7156409 |
| 35 | Kit | 4613840 |
| Thermo contact | 5045976 | |
| Cable harness | 4635785 | |
| 35A | Nut | 8566598 |
| 36 | Control unit | 7495930 (replaces 4230645) |
| 37 | Clamp | 9629197 |
| 40 | Evaporator | 7495088 |
| 40 | Evaporator | 7495419 |
| 40 | Evaporator | 7495104 |
| 40 | Evaporator | 7495096 |
| 41 | O-ring | 30541941 (replaces 4318036) |
| 42 | O-ring | 4318044 |
| 44 | Tensioning plate | 4366530 |
| 45 | Seal | 4635918 (replaces 4366605) |
| 45 | Seal | 4635918 |
| 46 | Tensioning plate | 4366738 |
| 49 | Screw | 8059446 |
| 54 | Cover | 4367900 |
| 54 | Cover | 4367934 |
| 55 | Screw | 4541132 |
| 76 | Water drain | 4364600 |
| 77 | O-ring | 4364642 |
| 78 | Hose | 4541090 |
| 78 | Water drain | 4632972 |
| 79 | Screw | 12773338 (replaces 4364626) |
| 80 | Screw | 4759361 (replaces 4364634) |
| Kit | 7495856 | |
| Net | 4759254 |
