Saab 900 1986-1989 Control Duct, part 2

Group 8c Heating and ventilation, section 190

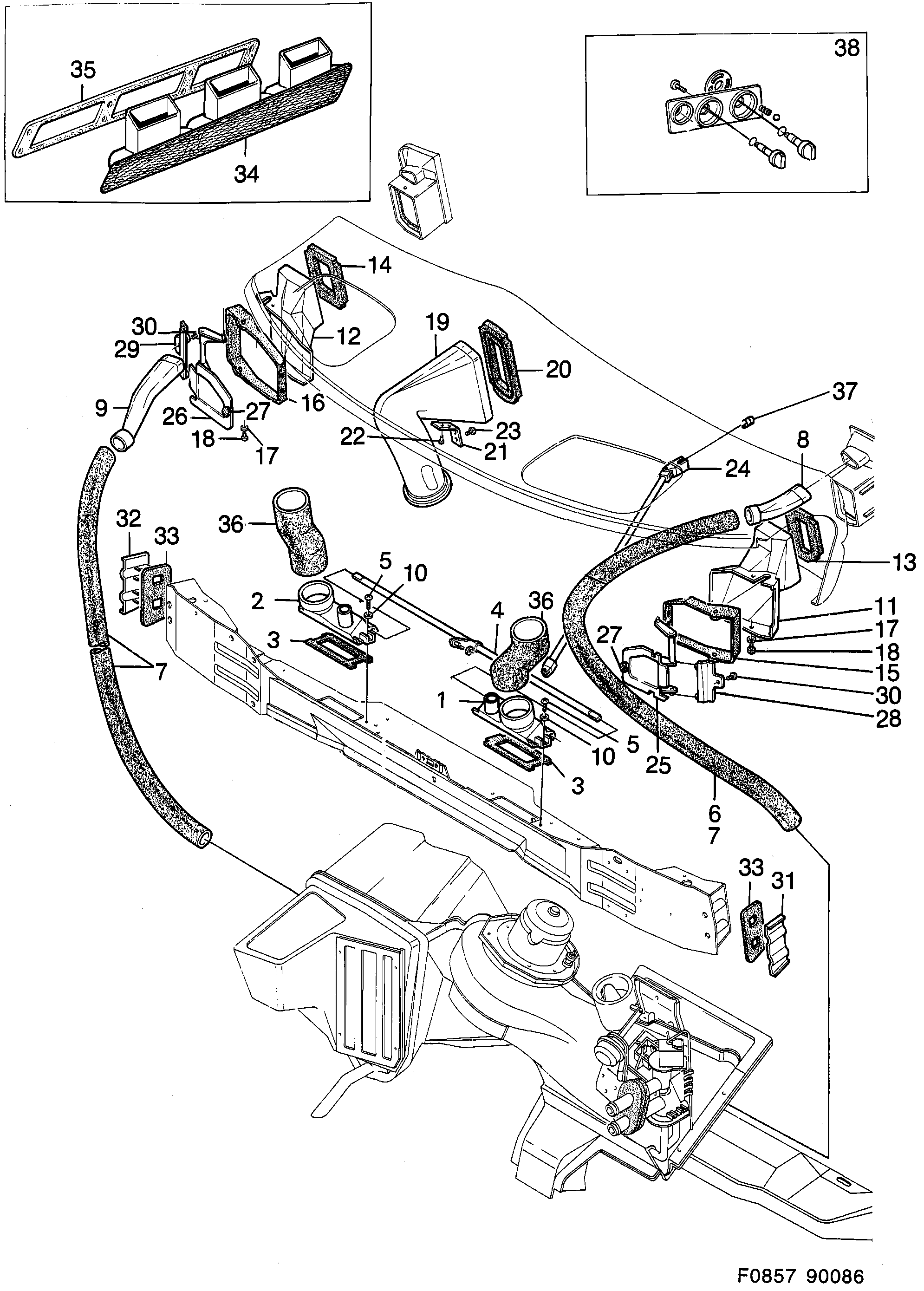

Saab 900 Control Duct, part 2 diagram

Pos	Article	Part No.
1	Throttle body	9418138
1	Throttle body	9480153
2	Throttle body	9418146
2	Throttle body	9480187
3	Seal	9401712
4	Shaft	9423112
5	Screw	7922420
6	Hose	9401332
7	Hose	9401340
8	Connector	9426792
8	Connector	9445776
9	Connector	9426784
10	Washer	8029951
11	Air duct	9418344
11	Air duct	9420399
12	Air duct	9418450
12	Air duct	9420464
13	Seal	9401373
13	Seal	9420407
14	Seal	9418468
14	Seal	9420472
15	Seal	9479643
16	Seal	9479668
18	Screw	9441213
19	Connector	9479908
19	Connector	9479916
20	Seal	9401431
21	Bracket	9401449
22	Rivet	7973266
22	Rivet	7961642
24	Control	9422965
24	Control	9444738
25	Throttle disc	9473919
26	Throttle disc	9473901
27	Spacer	9473943
28	Bearing	9426214
29	Bearing	9426206
30	Screw	8098030
31	Cover	9426693
32	Cover	9426701
33	Seal	9426727
34	Air outlet	9288150
34	Air outlet	9288168
35	Seal	9288119
35	Seal	4071478
36	Duct	9479650
37	Bracket	9621897
