Saab 900 1990-1993 Control Duct, part 1

Group 8c Heating and ventilation, section 170

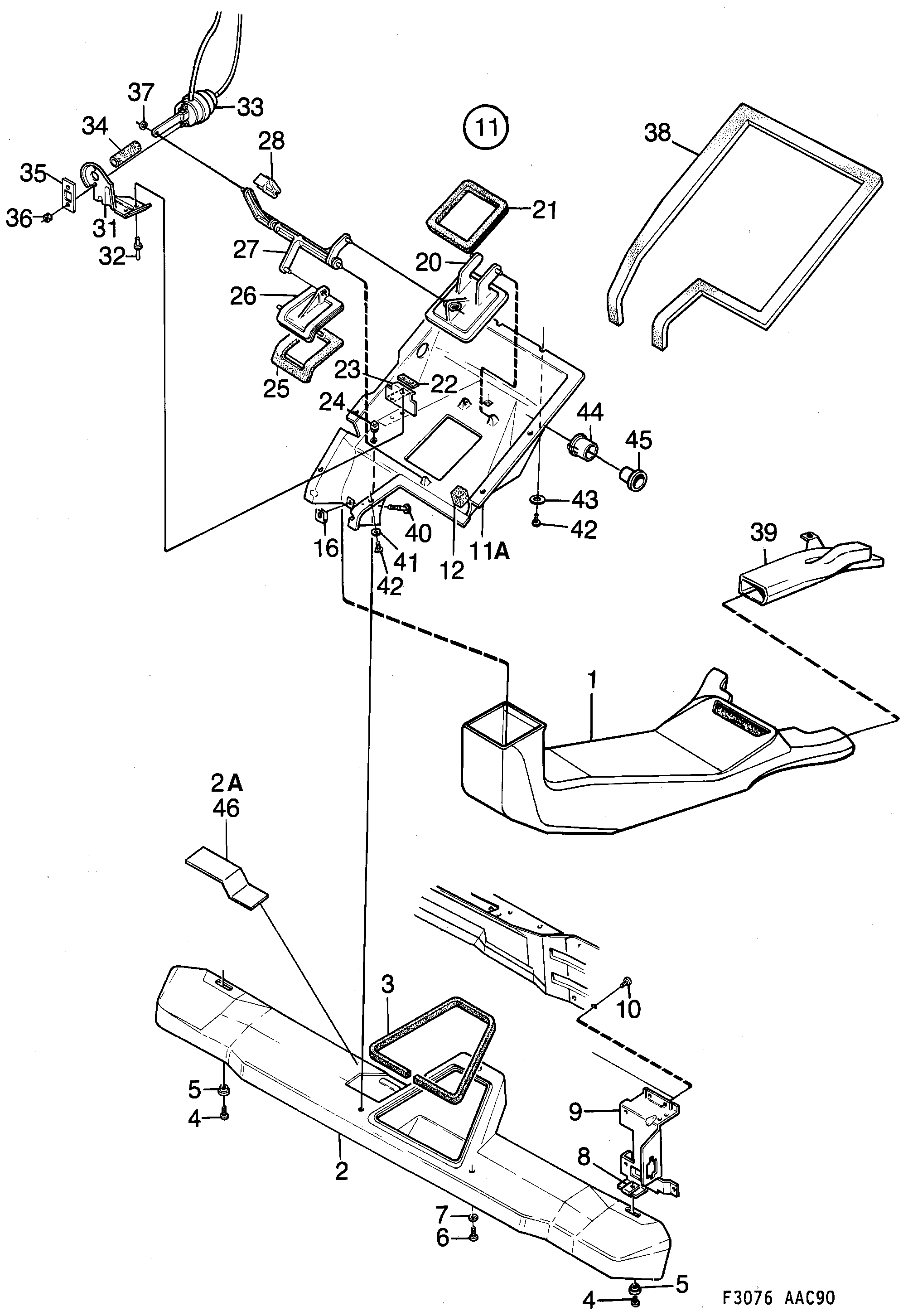

Saab 900 Control Duct, part 1 diagram

Pos	Article	Part No.
1	Heat duct	9479999
1	Air duct	9481938
2	Duct	9480211
2	Duct	4166831
2A	Spacer	8602542
3	Seal	9418088
4	Screw	7922362
5	Washer	8544801
6	Screw	8059578
7	Washer	8029951
7	Washer	9166364
8	Spring nut	7933682
10	Screw	7922347
11	Lower section	4072609
11	Lower section	4073813
11A	Lower section	9400946
12	Seal	9440405
16	Clip	9461070
20	Throttle disc	9400961
21	Seal	9400979
22	Seal	9469164
23	Guide rail	9469156
24	Nut	7970411
25	Seal	9418021
26	Throttle disc	9418013
27	Shaft	9482522
28	Washer	9417981
31	Bracket	9417973
32	Rivet	92153058 (replaces 7972490)
33	Vacuum servo	9422940
33	Vacuum servo	9480534
34	Protection	9444811
35	Washer	9450487
36	Nut	7940406
37	Clamp	9441221
38	Seal	9418039
39	Air outlet	9481946
39	Air outlet	9481953
40	Screw	92153219 (replaces 7922354)
42	Screw	7922370
43	Washer	9479353
44	Connector	9465303
45	Plug	9480252
