Saab 900 1986-1989 Control Duct, part 1

Group 8c Heating and ventilation, section 160

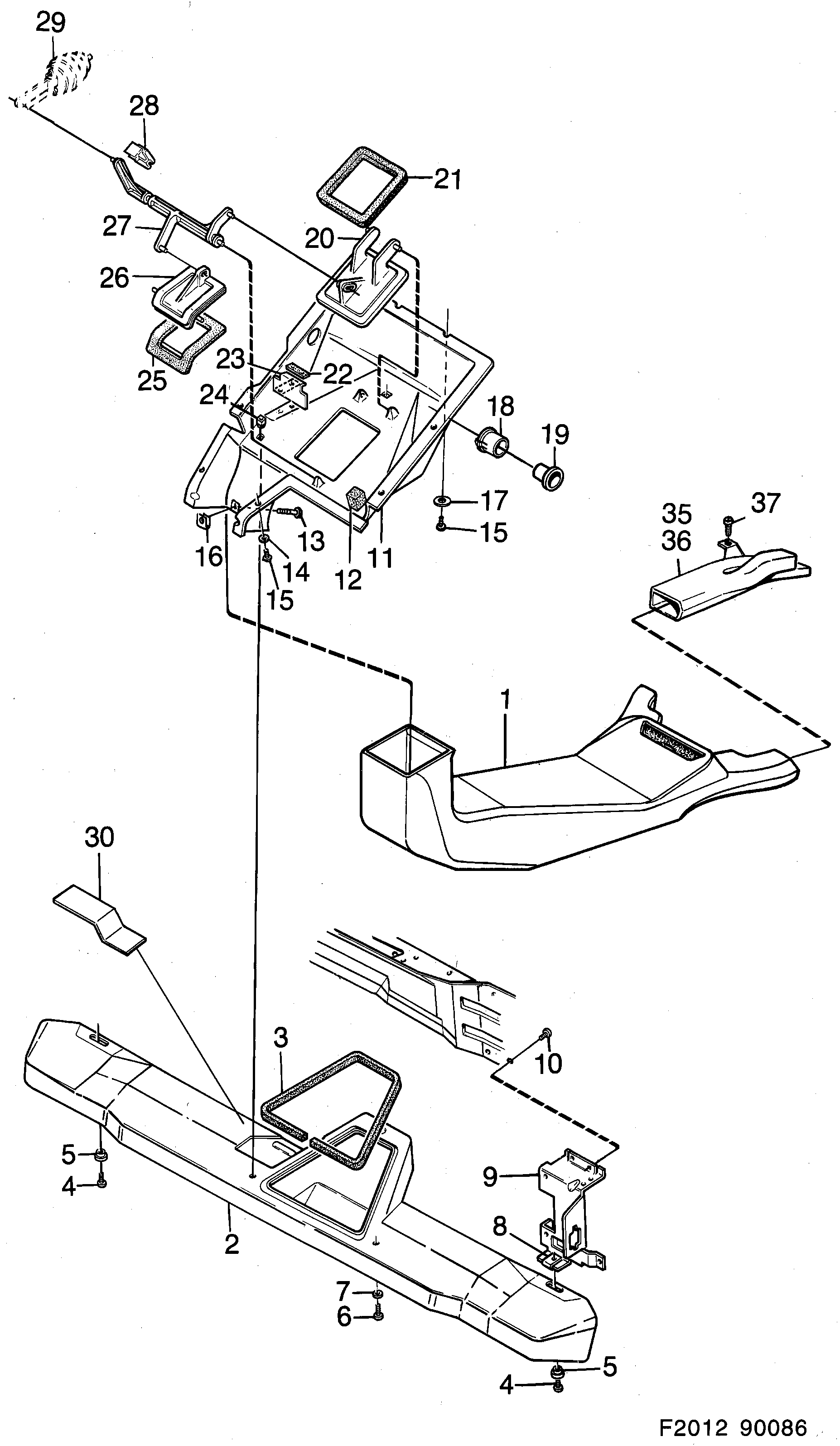

Saab 900 Control Duct, part 1 diagram

Pos	Article	Part No.
1	Heat duct	9479999
1	Air duct	9481938
2	Duct	9480211
2	Air duct	9482118
3	Seal	9418088
4	Screw	7922362
5	Bushing	9436965
6	Screw	8059578
7	Washer	8029951
8	Spring nut	7933682
10	Screw	7922347
11	Lower section	9400946
12	Seal	9440405
13	Screw	92153219 (replaces 7922354)
15	Screw	7922370
16	Clip	9461070
17	Washer	9479353
18	Connector	9465303
19	Plug	9480252
20	Throttle disc	9400961
21	Seal	9400979
22	Seal	9445800
23	Guide rail	9469156
24	Nut	7970411
25	Seal	9418021
26	Throttle disc	9418013
27	Shaft	9400987
27	Shaft	9482522
28	Washer	9417981
30	Spacer	8602542
35	Air outlet	9481946
36	Air outlet	9481953
37	Screw	7922891
