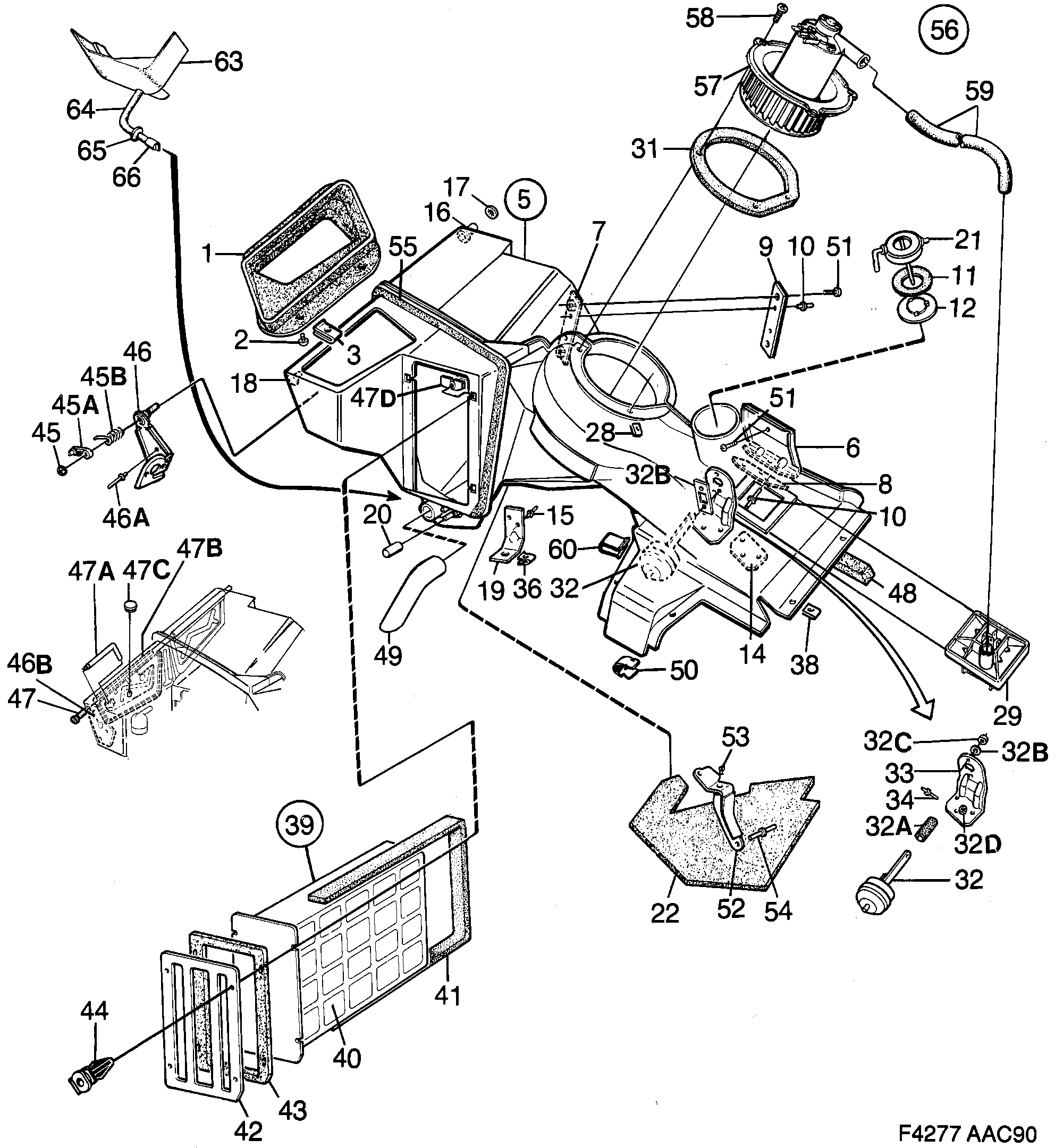

Group 8c Heating and ventilation, section 140
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air inlet | 9400623 |
| 2 | Screw | 92153219 (replaces 7922354) |
| 3 | Nut | 9426909 |
| 5 | Heater housing | 4072583 |
| 5 | Heater housing | 4074290 |
| 5 | Heater housing | 4072591 |
| 6 | Bracket | 9400714 |
| 7 | Bracket | 9461278 |
| 8 | Plate | 9417874 |
| 9 | Plate | 9461260 |
| 10 | Rivet | 7972052 |
| 11 | Seal | 9417916 |
| 12 | Throttle disc | 9422767 |
| 14 | Plate | 9426008 |
| 15 | Rivet | 7972045 |
| 16 | Bearing | 9400805 |
| 17 | Clamp | 9442203 |
| 18 | Plug | 7162308 |
| 19 | Bracket | 9401282 |
| 20 | Plug | 9481912 |
| 21 | Throttle disc | 9417908 |
| 22 | Insulation | 9482175 |
| 28 | Clip nut | 7968555 |
| 29 | Resistor | 9558784 |
| 31 | Seal | 9418070 |
| 32 | Vacuum servo | 9479924 |
| 32A | Protection | 9444811 |
| 32B | Washer | 9450487 |
| 32C | Nut | 7940406 |
| 32D | Clamp | 9441221 |
| 33 | Bracket | 9417924 |
| 36 | Spring nut | 7933682 |
| 38 | Clip nut | 9441239 |
| 39 | Air filter | 9479981 |
| 40 | Compartment filter | 9401126 |
| 41 | Seal | 9418054 |
| 42 | Cover | 9418062 |
| 43 | Seal | 9481060 |
| 44 | Clamp | 9479973 |
| 40 | Compartment filter | 4072427 |
| 42 | Cover | 4072617 |
| 43 | Seal | 4072625 |
| 45 | Clip | 4073748 |
| 45A | Lever | 9400896 |
| 45B | Spring | 9420274 |
| 46 | Bracket | 9420282 |
| 46A | Rivet | 92153058 (replaces 7972326) |
| 46B | Dolly plate | 9438250 |
| 47 | Pivot pin | 9422403 |
| 47A | Shaft | 9420241 |
| 47B | Shutter | 9481680 |
| 47C | Plug | 7163074 |
| 47D | Nut | 9465600 |
| 48 | Seal | 9401159 |
| 49 | Draining hose | 4070413 |
| 50 | Clip | 9451253 |
| 51 | Screw | 8059610 (replaces 8059602) |
| 52 | Bracket | 9432964 |
| 53 | Buffer | 9388588 (replaces 8209009) |
| 53 | Plug | 9388588 |
| 54 | Rivet | 7961709 |
| 54 | Pop rivet | 8235178 |
| 55 | Seal | 9481789 |
| 56 | Fan motor kit | 8605172 |
| 56 | Fan motor kit | 8605248 |
| 57 | Fan unit | 4073474 |
| 57 | Fan unit | 4382362 |
| Connector housing | 4350427 | |
| Cable terminal | 7155187 | |
| 58 | Screw | 7922735 |
| 59 | Hose | 8557001 |
| 60 | Clip | 9462557 |
| 63 | Kit | 9481839 |
| 64 | Fuel hose | 9363276 |
| 65 | Plug | 8245888 |
| 66 | Check valve | 9481904 |
