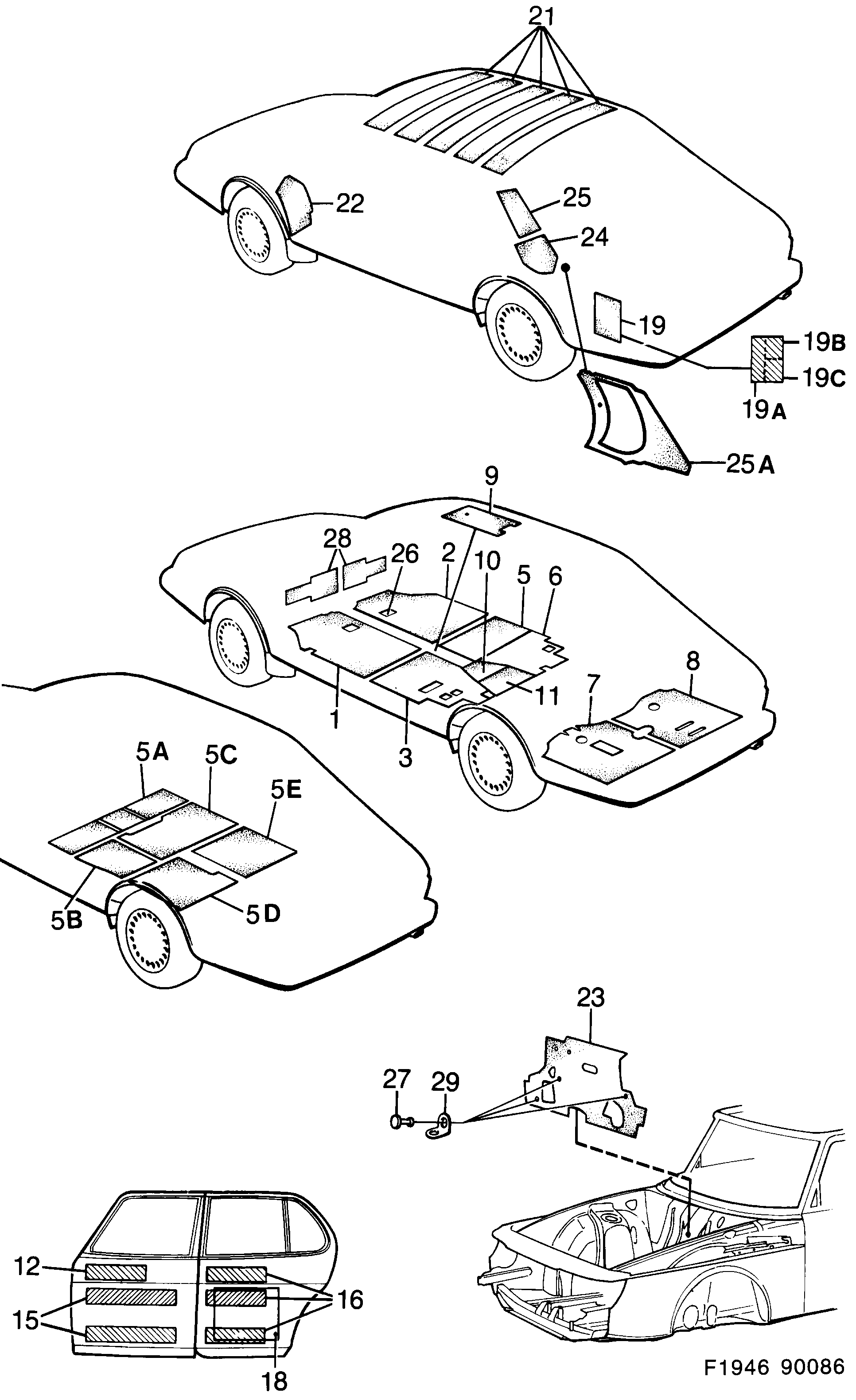

Group 8b Car body, internal, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Insulating mat | 4265906 (replaces 9438193) |
| 2 | Insulating mat | 9438201 |
| 3 | Insulating mat | 4265468 (replaces 8490609) |
| 3 | Insulating mat | 4265468 (replaces 9685702) |
| 3 | Insulating mat | 4265468 (replaces 9532243) |
| 3 | Insulating mat | 4265468 (replaces 9540782) |
| 5 | Insulating mat | 8490617 |
| 5 | Insulating mat | 9532250 |
| 5 | Insulating mat | 9540790 |
| 5A | Insulating mat | 9804691 |
| 5B | Insulating mat | 9804139 |
| 5C | Insulating mat | 9804147 |
| 5D | Insulating mat | 9804113 |
| 5E | Insulating mat | 9804121 |
| 7 | Insulating mat | 9477209 |
| 7 | Insulating mat | 9681339 |
| 8 | Insulating mat | 9477217 |
| 8 | Insulating mat | 9681347 |
| 9 | Heat shield | 9850009 |
| 9 | Heat shield | 9540774 |
| 10 | Insulating mat | 8490625 |
| 11 | Insulating mat | 8490641 |
| 12 | Cardboard | 8490708 |
| 12 | Damper mat | 9544826 |
| 15 | Cardboard | 8490716 |
| 15 | Damper mat | 9544842 |
| 18 | Cardboard | 8438400 |
| 19 | Cardboard | 8461063 |
| 19A | Insulation | 9435694 |
| 19B | Insulation | 9492257 |
| 19C | Insulation | 9435686 |
| 21 | Damper mat | 9757691 |
| 22 | Insulation | 9425653 |
| 22 | Insulation | 9425661 |
| 23 | Insulation | 9810326 |
| 23 | Insulation | 4045712 |
| 24 | Insulation | 8428211 |
| 24 | Insulation | 8428237 |
| 25 | Insulation | 8428203 |
| 25 | Insulation | 8428229 |
| 25A | Insulation | 9804170 |
| 25A | Insulation | 9804188 |
| 26 | Insulating mat | 8490575 |
| 27 | Rivet | 9443920 |
| 28 | Foam plastic | 9450974 |
| 29 | Brace | 8940652 |
