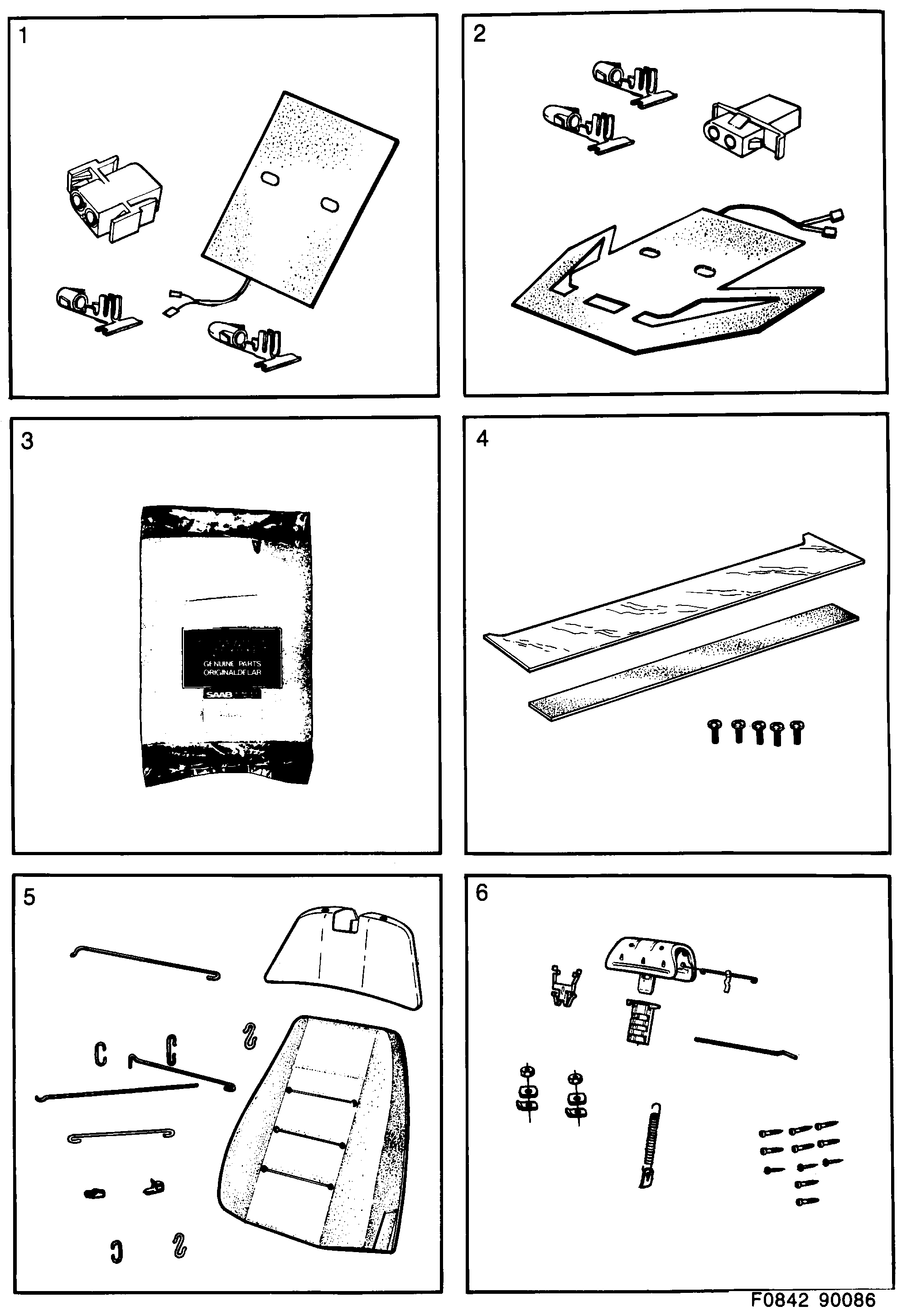

Group 8b Car body, internal, section 2020
| Pos | Article | Part No. |
|---|---|---|
| 1 | Heating element kit | 8547523 |
| Cable terminal | 8582595 (replaces 8544298) | |
| Connector housing | 8561631 | |
| Heating pad | 9569955 | |
| 2 | Heating element kit | 8547515 |
| Cable terminal | 8582603 (replaces 8544314) | |
| Connector housing | 8561623 | |
| Heating pad | 4902342 (replaces 4063855) | |
| 2 | Heating element kit | 8547507 |
| Heating pad | 9527698 | |
| 3 | Water drainage kit | 9746272 |
| Diverter | 9284399 | |
| Diverter | 9231150 | |
| 3 | Water drainage kit | 9746280 |
| Diverter | 9231044 | |
| Diverter | 9231101 | |
| 4 | Repair kit | 9698325 |
| Screw | 7972201 | |
| Upholstery | 9645011 | |
| Framework | 9824988 | |
| 4 | Repair kit | 9698333 |
| Upholstery | 9645003 | |
| 5 | Mounting kit | 9614520 |
| Cover rod | 9726795 | |
| Clip | 8400350 | |
| Clamp | 9450685 | |
| Wire rod | 9584749 | |
| Cover | 9702465 | |
| Backrest cushion | 9688458 | |
| Hook | 9769217 | |
| Clip | 9459975 | |
| 5 | Mounting kit | 9530155 |
| Wire rod | 9694969 | |
| Hook | 9769209 | |
| Hook | 9769225 | |
| Wire rod | 9584715 | |
| Wire rod | 9584731 | |
| 5 | Mounting kit | 9614546 |
| Backrest cushion | 9857731 | |
| Attaching bracket | 9726779 | |
| Rivet | 7961642 | |
| Elastic | 9740663 | |
| 5 | Mounting kit | 9618737 |
| Cover rod | 9879826 | |
| Cover rod | 9781592 | |
| 5 | Mounting kit | 9530163 |
| Wire rod | 9584723 | |
| Attaching brace | 9593245 | |
| 5 | Mounting kit | 9593930 |
| 6 | Mounting kit | 9614512 |
| Allen head screw | 9718131 | |
| Screw | 92150118 (replaces 7970536) | |
| Screw | 7981921 | |
| Screw | 7922396 | |
| Screw | 9715525 | |
| Nut | 11900440 (replaces 8074288) | |
| Washer | 8939449 | |
| Nut | 9849795 | |
| Framework | 9809690 | |
| Wire rod | 9459868 | |
| Sleeve | 4031563 | |
| Locking spring | 9796848 | |
| Clip | 9833971 | |
| Spring | 8935751 | |
| Wire rod | 9416181 | |
| 6 | Mounting kit | 9618729 |
| Screw | 8059396 | |
| Screw | 9781204 | |
| Screw | 8059537 | |
| Screw | 7971294 | |
| Screw | 7922271 | |
| Nut | 9619032 | |
| Nut | 9619040 | |
| Cage nut | 7977846 | |
| Washer | 8029951 | |
| Washer | 8029944 | |
| Head restraint | 9767815 | |
| Retaining ring | 7963143 (replaces 7915077) | |
| Protection | 9792391 | |
| Spacer | 9618232 | |
| Knob | 9874819 | |
| Slide | 9874801 | |
| Clamp | 9686841 | |
| Cover | 4052734 | |
| Cover | 4052742 | |
| Lock washer | 7971518 |
