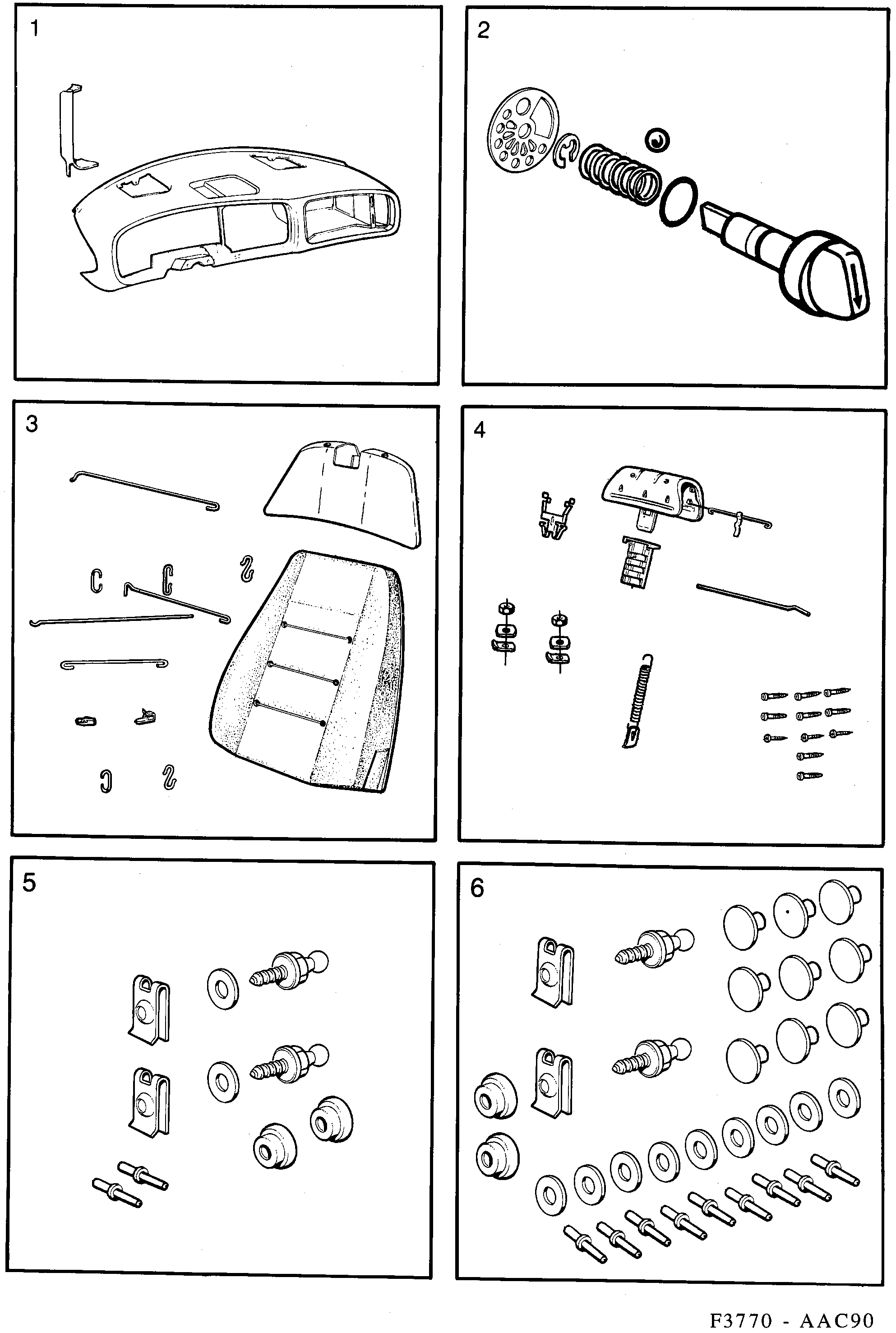

Group 8b Car body, internal, section 1940
| Pos | Article | Part No. |
|---|---|---|
| 1 | Panel kit | 9699257 |
| Panel | 9611336 | |
| Protection | 9611534 | |
| Protection | 9611559 | |
| Plastic washer | 9680224 | |
| Screw | 9618299 | |
| Screw | 9434614 | |
| Screw | 9618315 | |
| Screw | 9618281 | |
| 2 | Control set | 9746694 |
| Knob | 9481425 | |
| Retaining ring | 7936008 | |
| Ball | 9420043 | |
| Spring | 9420035 | |
| Washer | 9425844 | |
| O-ring | 7972078 | |
| 3 | Mounting kit | 9614520 |
| Cover rod | 9726795 | |
| Clip | 8400350 | |
| Clamp | 9450685 | |
| Wire rod | 9584749 | |
| Cover | 9702465 | |
| Backrest cushion | 9688458 | |
| Hook | 9769217 | |
| Clip | 9459975 | |
| 3 | Mounting kit | 9530155 |
| Wire rod | 9694969 | |
| Hook | 9769209 | |
| Hook | 9769225 | |
| Wire rod | 9584715 | |
| Wire rod | 9584731 | |
| 3 | Mounting kit | 9614546 |
| Backrest cushion | 9857731 | |
| Attaching bracket | 9726779 | |
| Rivet | 7961642 | |
| Elastic | 9740663 | |
| 4 | Mounting kit | 9614512 |
| Allen head screw | 9718131 | |
| Screw | 92150118 (replaces 7970536) | |
| Screw | 7981921 | |
| Screw | 7922396 | |
| Screw | 9715525 | |
| Nut | 11900440 (replaces 8074288) | |
| Washer | 8939449 | |
| Nut | 9849795 | |
| Framework | 9809690 | |
| Wire rod | 9459868 | |
| Sleeve | 4031563 | |
| Locking spring | 9796848 | |
| Clip | 9833971 | |
| Spring | 8935751 | |
| Wire rod | 9416181 | |
| 5 | Mounting kit | 4170312 |
| Spacer | 8429441 | |
| Rivet | 7972045 | |
| 6 | Mounting kit | 4170338 |
| Rivet | 9849514 |
