Saab 900 1986-1989 Rear seat Back cushion

Group 8b Car body, internal, section 1720

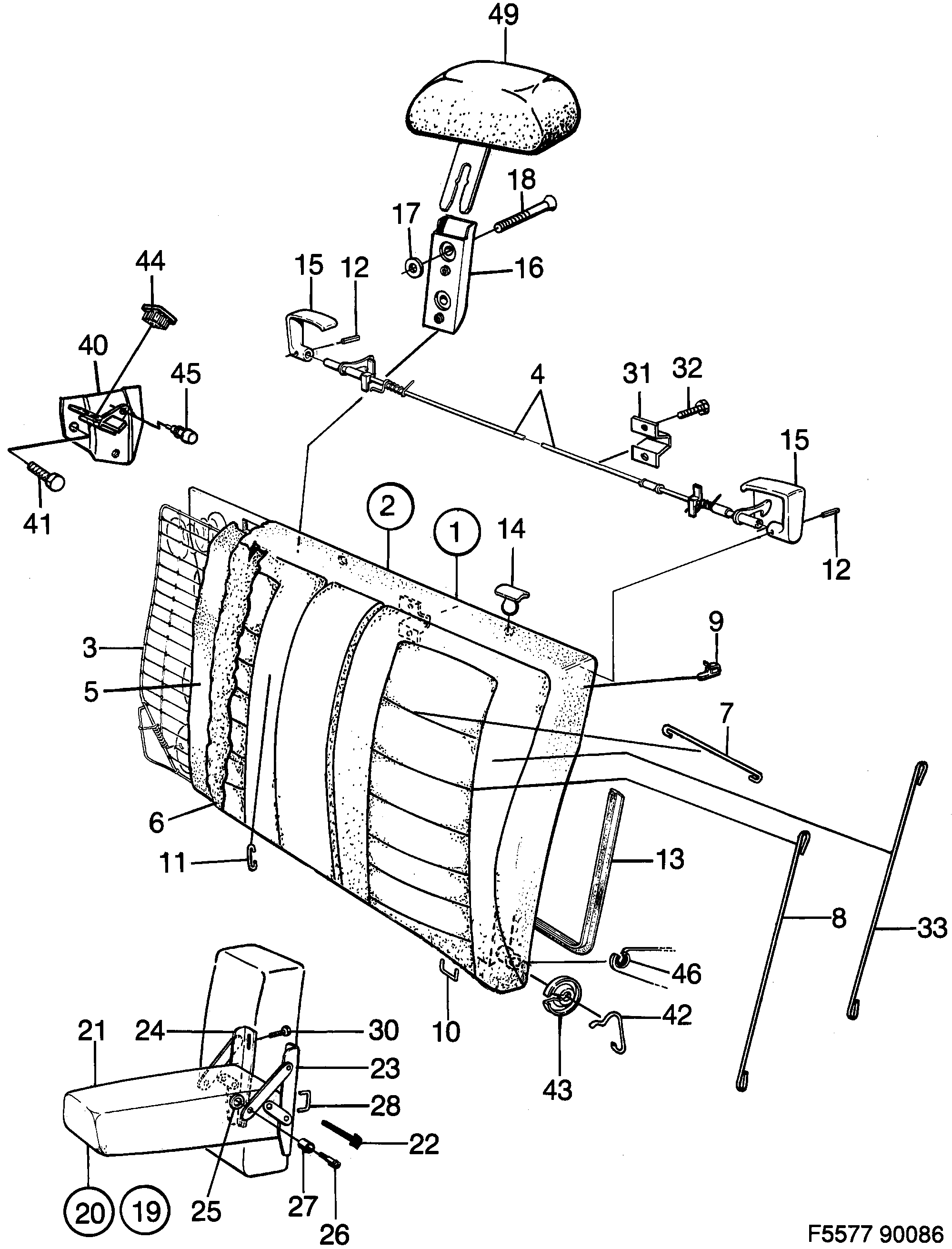

Saab 900 Rear seat Back cushion diagram

Pos	Article	Part No.
1	Backrest cushion	9699323
1	Backrest cushion	9699273
1	Backrest cushion	9834011
1	Backrest cushion	9699224
1	Backrest cushion	9843608
2	Backrest cushion	9614686
2	Backrest cushion	9593260
2	Backrest cushion	9688839
3	Spring housing	9833773
3	Spring housing	4053450
3	Spring housing	9687708
3	Spring housing	4053468
3	Spring housing	9833781
3	Spring housing	9833799
3	Spring housing	4053476
4	Shaft	9833542
5	Padding	9688557
6	Foam plastic cushion	9475914
6	Foam plastic cushion	9593278
6	Foam plastic cushion	9829672
6	Foam plastic cushion	9688581
7	Wire rod	9721481
8	Wire rod	9579244
9	Clip	8400350
10	Staple	8438467
11	Clamp	9450685 (replaces 9849498)
11	Clamp	9450685
12	Spring pin	7918261
13	Moulding	9491739
14	Protection	9807215
15	Handle	9487836
15	Handle	9487844
16	Bracket	9487950
16	Bracket	9532466
17	Washer	9493743
17	Washer	7399835
18	Screw	7972755
19	Arm rest	9827718
20	Arm rest	9860305
21	Arm rest	9727892
22	Clamp	9445909
23	Linkage	9477860
24	Linkage	9477878
25	Washer	8457541
26	Screw	4532529 (replaces 9491325)
27	Sleeve	8458598
30	Screw	7985930 (replaces 8019903)
31	Bracket	9494725
31	Bracket	9536194
32	Screw	8083933
32	Screw	8083933 (replaces 8082976)
33	Wire rod	9416181
40	Bracket	9848086
40	Bracket	9848128
40	Bracket	9848094
40	Bracket	9848136
41	Screw	8499204
42	Lock spring	9494691
42	Lock spring	9494709
43	Spacer washer	9489485
44	Sleeve	9851676
44	Sleeve	4050761
45	Plug	4170114 (replaces 9845223)
45	Absorber	4170114 (replaces 9618273)
