Saab 900 1990-1993 Rear seat Back cushion

Group 8b Car body, internal, section 1670

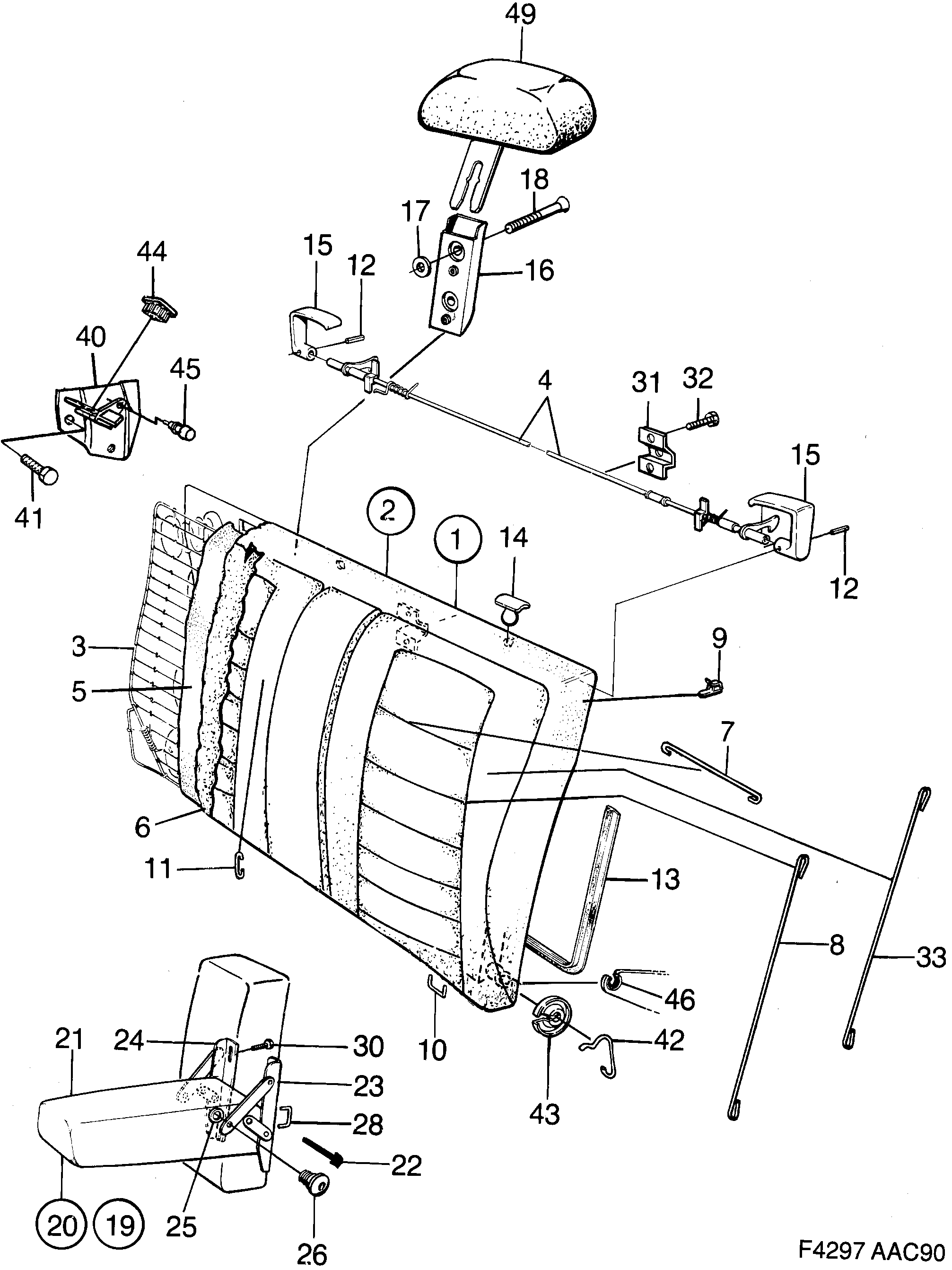

Saab 900 Rear seat Back cushion diagram

Pos	Article	Part No.
1	Backrest cushion	9699323
1	Backrest cushion	9699273
1	Backrest cushion	9699224
1	Backrest cushion	9843608
2	Backrest cushion	9614686
2	Backrest cushion	9593260
2	Backrest cushion	9688839
3	Spring housing	4053450
3	Spring housing	4053468
3	Spring housing	4053831
4	Shaft	9833542
5	Padding	9688557
6	Foam plastic cushion	9475914
6	Foam plastic cushion	9593278
6	Foam plastic cushion	9829672
6	Foam plastic cushion	9688581
7	Wire rod	9721481
8	Wire rod	9579244
9	Clip	8400350
10	Staple	8438467
11	Clamp	9450685 (replaces 9849498)
11	Clamp	9450685
12	Spring pin	7918261
13	Moulding	9491739
14	Protection	9807215
15	Handle	9487836
15	Handle	9487844
16	Bracket	9532466
17	Washer	7399835
18	Screw	7972755
19	Arm rest	9827718
20	Arm rest	9860305
21	Arm rest	9727892
22	Clamp	9445909
23	Linkage	9477860
24	Linkage	9477878
25	Washer	8457541
26	Shoulder screw	4532529 (replaces 4055133)
30	Screw	7985930 (replaces 8019903)
30	Screw	7985930 (replaces 9166281)
31	Bracket	9649138
31	Bracket	9649500
32	Screw	8083933 (replaces 8082976)
32	Screw	8083933
33	Wire rod	9416181
40	Bracket	4040754
40	Bracket	4040770
40	Bracket	4040762
40	Bracket	4040788
41	Screw	8499204
42	Lock spring	9494691
42	Lock spring	9494709
43	Spacer washer	9489485
44	Sleeve	4050761
45	Absorber	4170114 (replaces 9618273)
45	Absorber	4170114
