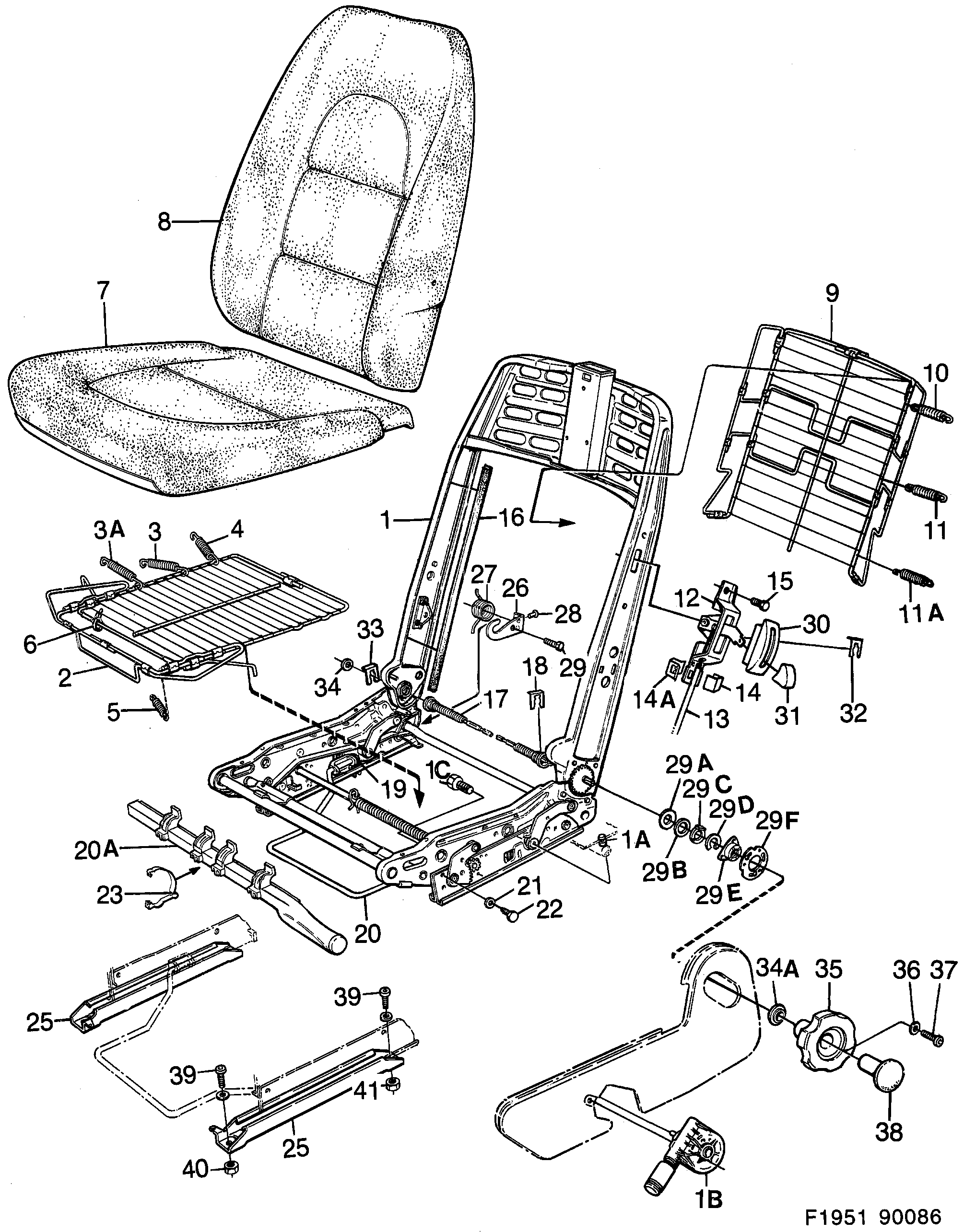

Group 8b Car body, internal, section 1630
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat frame | 9874785 |
| 1 | Seat frame | 9535824 |
| 1 | Seat frame | 9876483 |
| 1 | Seat frame | 9535816 |
| 1A | Stop ring | 9678434 |
| 1B | Control | 9658584 |
| 1C | Screw | 8019713 |
| 2 | Wire matting | 9673450 |
| 2 | Wire matting | 9673179 |
| 3 | Spring | 9673443 |
| 3A | Spring | 9673146 |
| 4 | Spring | 9673435 |
| 5 | Spring | 9758947 |
| 6 | Tie strap | 7971872 |
| 7 | Seat cushion | 4416525 (replaces 9696618) |
| 7 | Seat cushion | 9618695 |
| 8 | Backrest cushion | 30545238 (replaces 9696600) |
| 8 | Backrest cushion | 9618687 |
| 9 | Wire matting | 9697525 |
| 10 | Spring | 9759069 |
| 11 | Spring | 9759077 |
| 11A | Spring | 9771205 |
| 12 | Release mechanism | 9618836 |
| 13 | Cable | 9874504 |
| 14 | Cable holder | 9611799 |
| 14 | Cable holder | 9542077 |
| 14A | Clamp | 9530262 |
| 15 | Screw | 7974330 |
| 16 | Protecting moulding | 9671835 |
| 16 | Protecting moulding | 9541533 |
| 17 | Shaft | 9680414 |
| 17 | Shaft | 9538687 |
| 18 | Retaining ring | 9777327 |
| 19 | Washer | 7398282 |
| 20 | Shaft | 9659012 |
| 20 | Shaft | 9659020 |
| 20A | Camshaft | 9657131 |
| 20A | Camshaft | 9660853 |
| 21 | Washer | 92153033 (replaces 7916497) |
| 22 | Screw | 92153212 (replaces 7972623) |
| 23 | Clamp | 9767518 |
| 25 | Seat rail | 9687625 |
| 25 | Seat rail | 9687633 |
| 25 | Seat rail | 4048302 |
| 25 | Seat rail | 4048310 |
| 26 | Attaching brace | 9531997 |
| 26 | Attaching brace | 9532003 |
| 27 | Spring | 9532011 |
| 27 | Spring | 9532029 |
| 28 | Rivet | 7975402 |
| 29 | Screw | 92153146 (replaces 7972607) |
| 29A | Washer | 9586967 |
| 29B | Ring | 9586975 |
| 29C | Washer | 9586983 |
| 29D | Retaining ring | 8123473 (replaces 7936016) |
| 29E | Brake | 9585613 |
| 29F | Spring clamp | 9585621 |
| 29F | Spring clamp | 4043394 |
| 30 | Slide | 9874801 |
| 31 | Knob | 9874819 |
| 32 | Clamp | 9686841 |
| 33 | Retaining ring | 7963143 (replaces 7915077) |
| 34 | Spacer | 9618232 |
| 34A | Reinforcement | 9589045 |
| 35 | Steering wheel | 9798356 |
| 35 | Control knob | 9546946 |
| 36 | Washer | 8029944 |
| 36 | Washer | 8029951 |
| 37 | Screw | 8059396 |
| 37 | Screw | 8059560 |
| 38 | Cover | 9765132 |
| 38 | Cover | 9851619 |
| 39 | Screw | 9781204 |
| 40 | Cage nut | 7977846 |
| 41 | Nut | 9619032 |
| 41 | Nut | 9619040 |
