Saab 900 1990-1993 Front seats Part 3 Electrically adjustable

Group 8b Car body, internal, section 1610

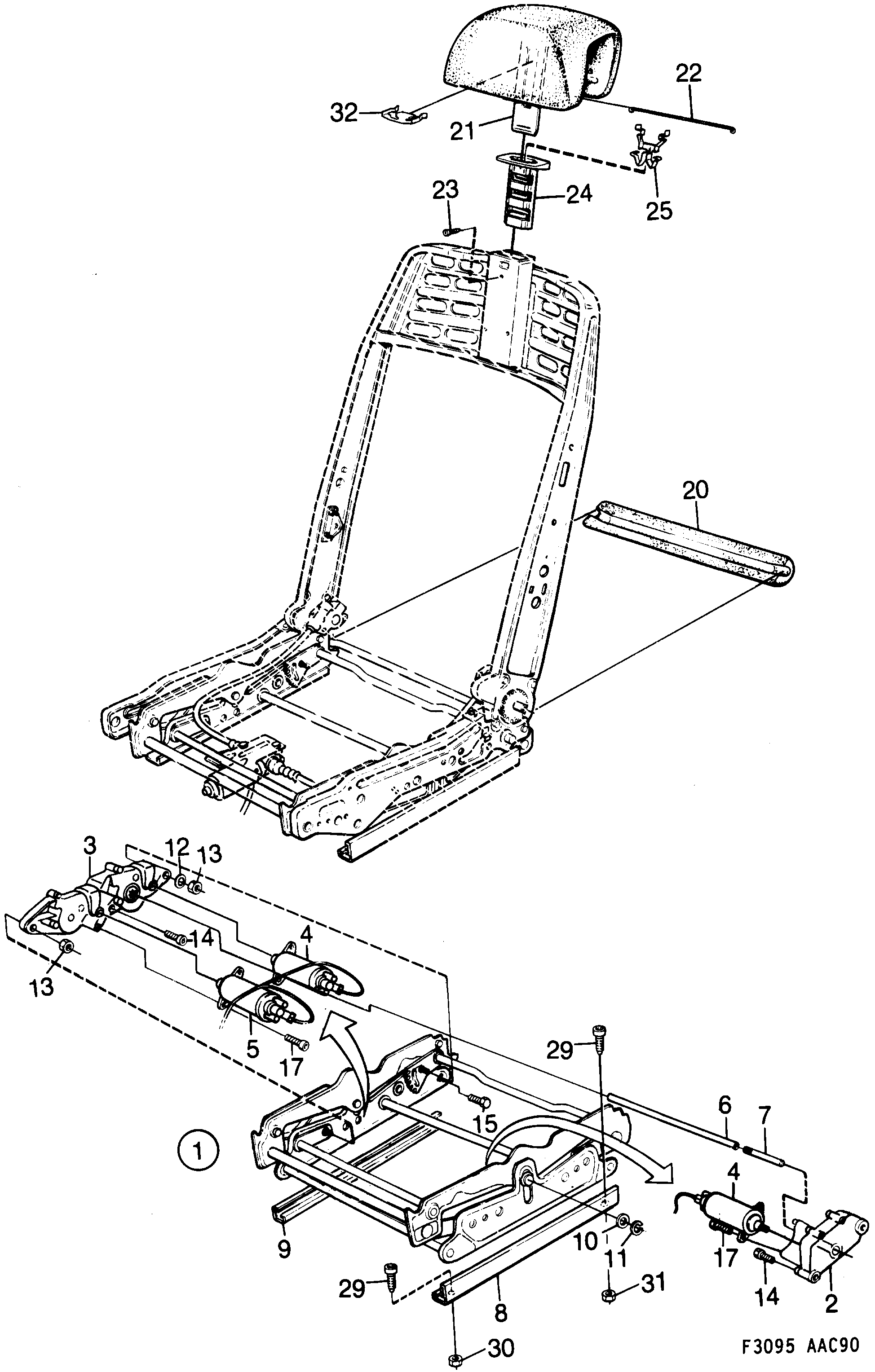

Saab 900 Front seats Part 3 Electrically adjustable diagram

Pos	Article	Part No.
1	Seat frame	32000160 (replaces 4133146)
1	Seat frame	32000160 (replaces 4312625)
2	Gear	9695321
3	Gear	9695354
4	Electrical motor	4054078
5	Electrical motor	4054086
6	Shaft	9579772
7	Shaft	9579780
8	Rail	4133153
9	Rail	4133161
10	Washer	9586165
11	Retaining ring	9586173
12	Spacer washer	9579764
13	Nut	9586132
14	Screw	8059396 (replaces 9586157)
15	Screw	9586181
17	Screw	9586207
20	Protection	9792391
21	Head restraint	4123386
22	Wire rod	9459868
23	Screw	7922396
24	Sleeve	4031563
25	Locking spring	9796848
29	Screw	4134003
30	Cage nut	7977846
31	Nut	9619032
31	Nut	9619040
32	Clamp	9545104
