Saab 900 1990-1993 Front seats Part 2 Electrically adjustable

Group 8b Car body, internal, section 1580

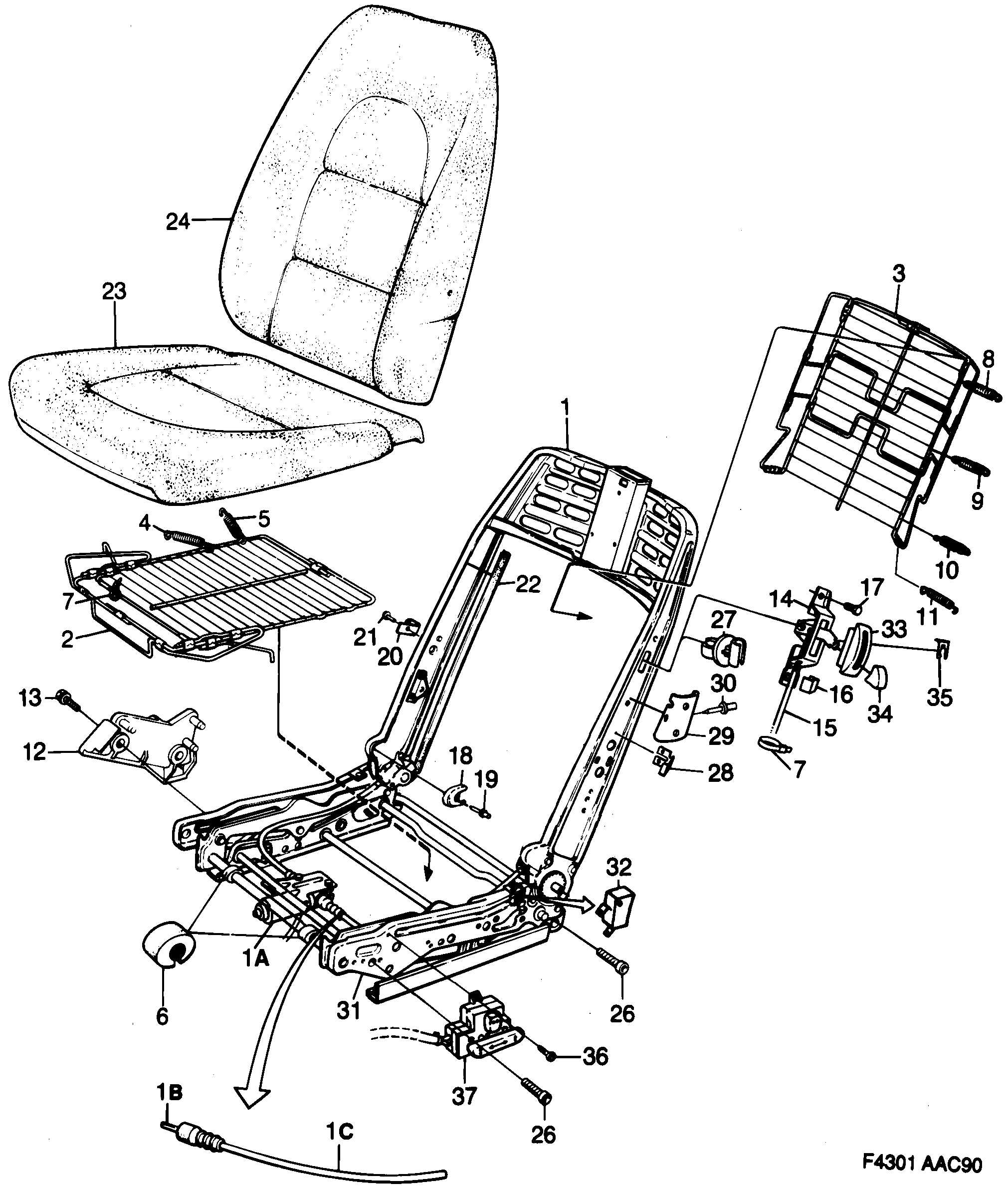

Saab 900 Front seats Part 2 Electrically adjustable diagram

Pos	Article	Part No.
1	Seat frame	4123378
1	Seat frame	4131751
1A	Electrical motor	9695768
1B	Drive shaft	9579715
1B	Drive shaft	9542317
1C	Cover	4126355 (replaces 9542309)
2	Wire matting	4032934
3	Wire matting	9697525
4	Spring	9673146
5	Spring	9673435
6	Rubber spacer	4033486
7	Tie strap	7971872
8	Spring	9759069
9	Spring	9759077
10	Spring	9771205
11	Spring	4134219
12	Support	4142832
12	Support	4142824
13	Screw	92153219 (replaces 7922354)
14	Release mechanism	9618836
14	Release mechanism	4313607
14	Release mechanism	4142030
15	Cable	9874504
15	Cable	4170072
16	Cable holder	9542077
17	Screw	7974330
17	Pop rivet	8235178
18	Cover	4052742
18	Cover	4052734
19	Rivet	7961741
20	Brace	9778895
21	Rivet	92153060 (replaces 7972516)
22	Protecting moulding	9541533
22	Protecting moulding	9671835
23	Seat cushion	4416525 (replaces 9696618)
23	Seat cushion	4416525
23	Seat cushion	9677014
24	Backrest cushion	30545238 (replaces 9696600)
24	Backrest cushion	9618687
24	Backrest cushion	4256319
24	Backrest cushion	9758715
26	Screw	90511048 (replaces 8059826)
27	Guide	8444614
28	Brace	4256517
29	Cap	4142022
30	Rivet	92153058 (replaces 7972490)
32	Microswitch	4036299
33	Slide	9874801
34	Knob	9874819
35	Clamp	9686841
37	Switch	4117081
37	Switch	4117073
