Saab 900 1986-1987 Front seats Part 2 Automatic belts

Group 8b Car body, internal, section 1540

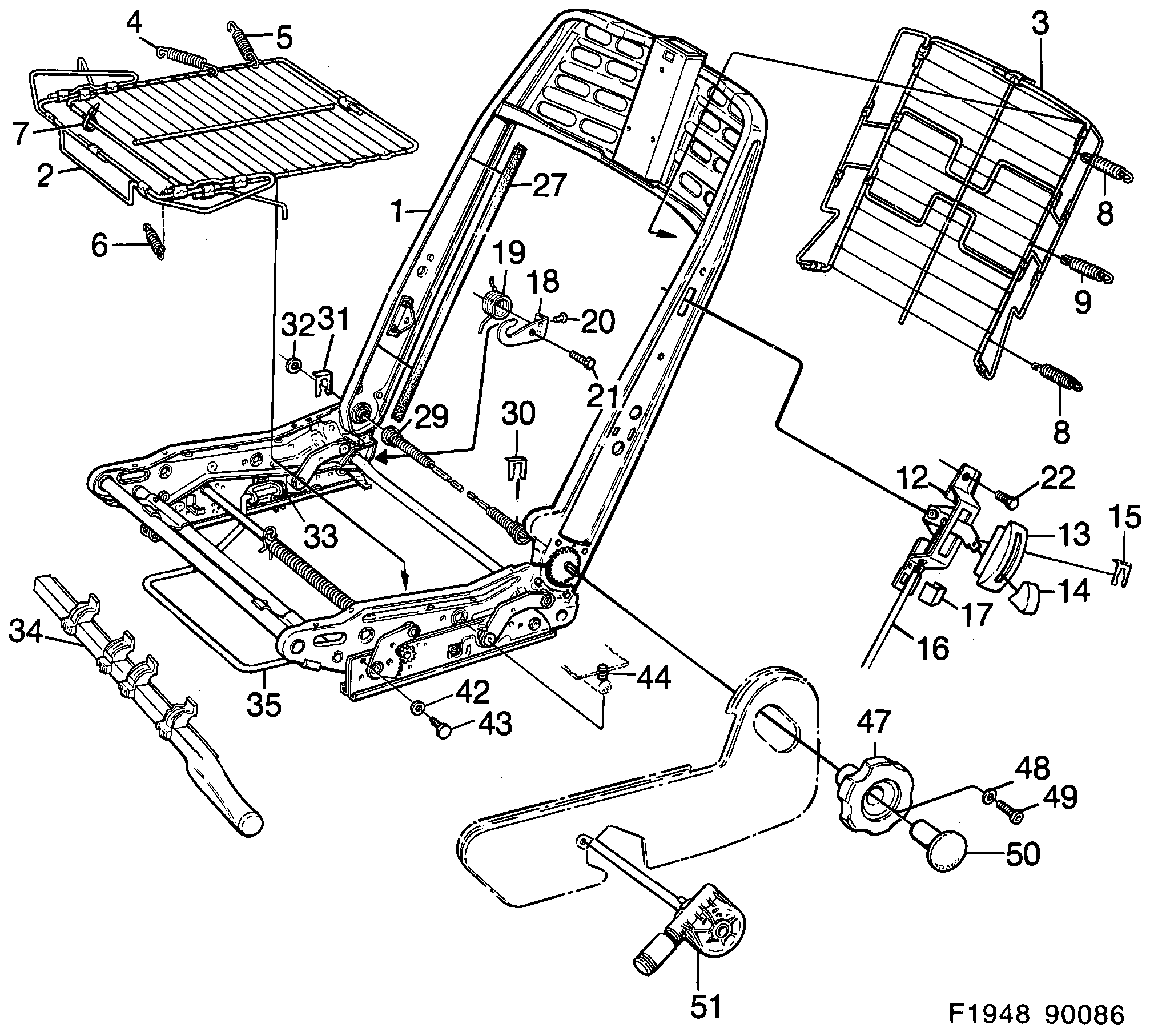

Saab 900 Front seats Part 2 Automatic belts diagram

Pos	Article	Part No.
1	Seat frame	9874777
1	Seat frame	9876483
2	Wire matting	9673450
3	Wire matting	9697525 (replaces 9759051)
3	Wire matting	9697525
4	Spring	9673146
5	Spring	9673435
6	Spring	9673443
7	Tie strap	7971872
8	Spring	9759069
9	Spring	9759077
12	Release mechanism	9618836
13	Slide	9874801
14	Knob	9874819
15	Clamp	9686841
16	Cable	9874504
17	Cable holder	9611799
18	Attaching brace	9531997
18	Attaching brace	9532003
19	Spring	9532011
19	Spring	9532029
20	Rivet	7975402
21	Screw	92153146 (replaces 7972607)
22	Screw	7974330
27	Protecting moulding	9671835
29	Shaft	9680414
30	Retaining ring	9777327
31	Retaining ring	7963143 (replaces 7915077)
32	Spacer	9618232
33	Washer	7398282
34	Camshaft	9657131
35	Shaft	9659012
35	Shaft	9659020
42	Washer	92153033 (replaces 7916497)
43	Screw	92153212 (replaces 7972623)
44	Stop ring	9678434
47	Steering wheel	9798356
48	Washer	8029944
49	Screw	8059396
50	Cover	9765132
51	Control	9658584
