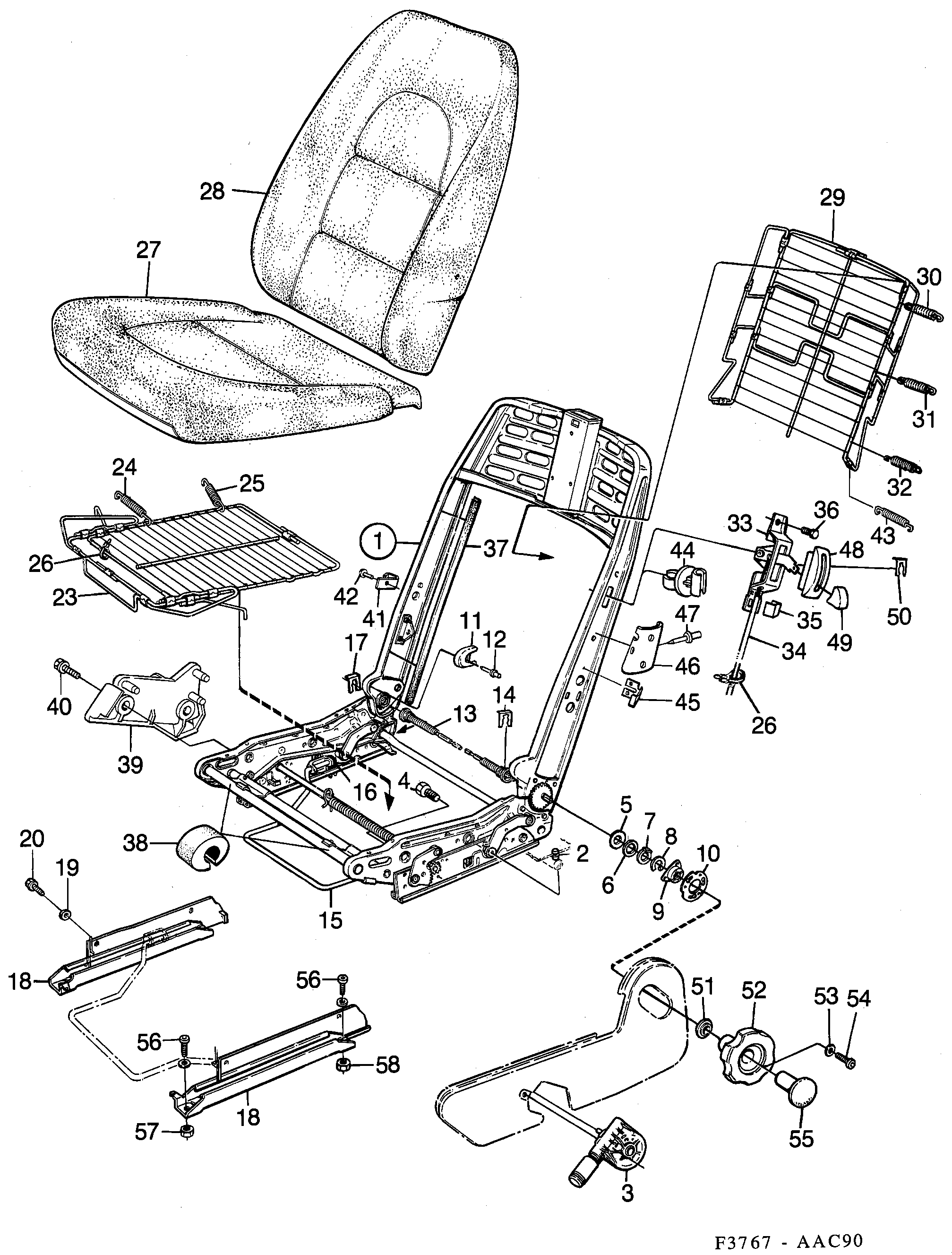

Group 8b Car body, internal, section 1490
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seat frame | 4123113 |
| 1 | Seat frame | 4131744 |
| 1 | Seat frame | 4123121 |
| 1 | Seat frame | 4131728 |
| 1 | Seat frame | 4123089 |
| 1 | Seat frame | 4123105 |
| 1 | Seat frame | 4123097 |
| 1 | Seat frame | 4131736 |
| 2 | Stop ring | 9678434 |
| 3 | Control | 9658584 |
| 3 | Control | 9658592 |
| 4 | Screw | 8019713 |
| 5 | Washer | 9586967 |
| 6 | Ring | 9586975 |
| 7 | Washer | 9586983 |
| 8 | Retaining ring | 8123473 (replaces 7936016) |
| 9 | Brake | 9585613 |
| 10 | Spring clamp | 4043394 |
| 11 | Cover | 4052742 |
| 11 | Cover | 4052734 |
| 12 | Rivet | 7961741 |
| 13 | Shaft | 9538687 |
| 13 | Shaft | 9586249 |
| 14 | Retaining ring | 9777327 |
| 15 | Shaft | 9659012 |
| 15 | Shaft | 9659020 |
| 16 | Washer | 7398282 |
| 17 | Retaining ring | 7963143 |
| 18 | Seat rail | 4134672 |
| 18 | Seat rail | 4134680 |
| 19 | Washer | 92153033 (replaces 7916497) |
| 20 | Screw | 92153212 (replaces 7972623) |
| 23 | Wire matting | 4032934 |
| 24 | Spring | 9673146 |
| 25 | Spring | 9673435 |
| 26 | Tie strap | 7971872 |
| 27 | Seat cushion | 4416525 (replaces 9696618) |
| 27 | Seat cushion | 4416525 |
| 27 | Seat cushion | 9677014 |
| 28 | Backrest cushion | 30545238 (replaces 9696600) |
| 28 | Backrest cushion | 9618687 |
| 28 | Backrest cushion | 4256319 |
| 28 | Backrest cushion | 9758715 |
| 29 | Wire matting | 9697525 |
| 30 | Spring | 9759069 |
| 31 | Spring | 9759077 |
| 32 | Spring | 9771205 |
| 33 | Release mechanism | 9618836 |
| 33 | Release mechanism | 4313607 |
| 33 | Release mechanism | 4142030 |
| 34 | Cable | 9874504 |
| 34 | Cable | 4170072 |
| 35 | Cable holder | 9542077 |
| 36 | Screw | 7974330 |
| 36 | Pop rivet | 8235178 |
| 37 | Protecting moulding | 9541533 |
| 37 | Protecting moulding | 9671835 |
| 38 | Rubber spacer | 4033486 |
| 39 | Support | 4142832 |
| 39 | Support | 4142824 |
| 40 | Screw | 92153219 (replaces 7922354) |
| 41 | Brace | 9778895 |
| 42 | Rivet | 92153060 (replaces 7972516) |
| 43 | Spring | 4134219 |
| 44 | Guide | 8444614 |
| 45 | Brace | 4256517 |
| 46 | Cap | 4142022 |
| 47 | Rivet | 92153058 (replaces 7972490) |
| 48 | Slide | 9874801 |
| 49 | Knob | 9874819 |
| 50 | Clamp | 9686841 |
| 51 | Reinforcement | 9589045 |
| 52 | Control knob | 9546946 |
| 52 | Control knob | 4168118 |
| 53 | Washer | 8029951 |
| 53 | Washer | 9166364 |
| 54 | Screw | 8059560 |
| 55 | Cover | 9851619 |
| 56 | Screw | 4134003 |
| 57 | Cage nut | 7977846 |
| 58 | Nut | 9619032 |
| 58 | Nut | 9619040 |
