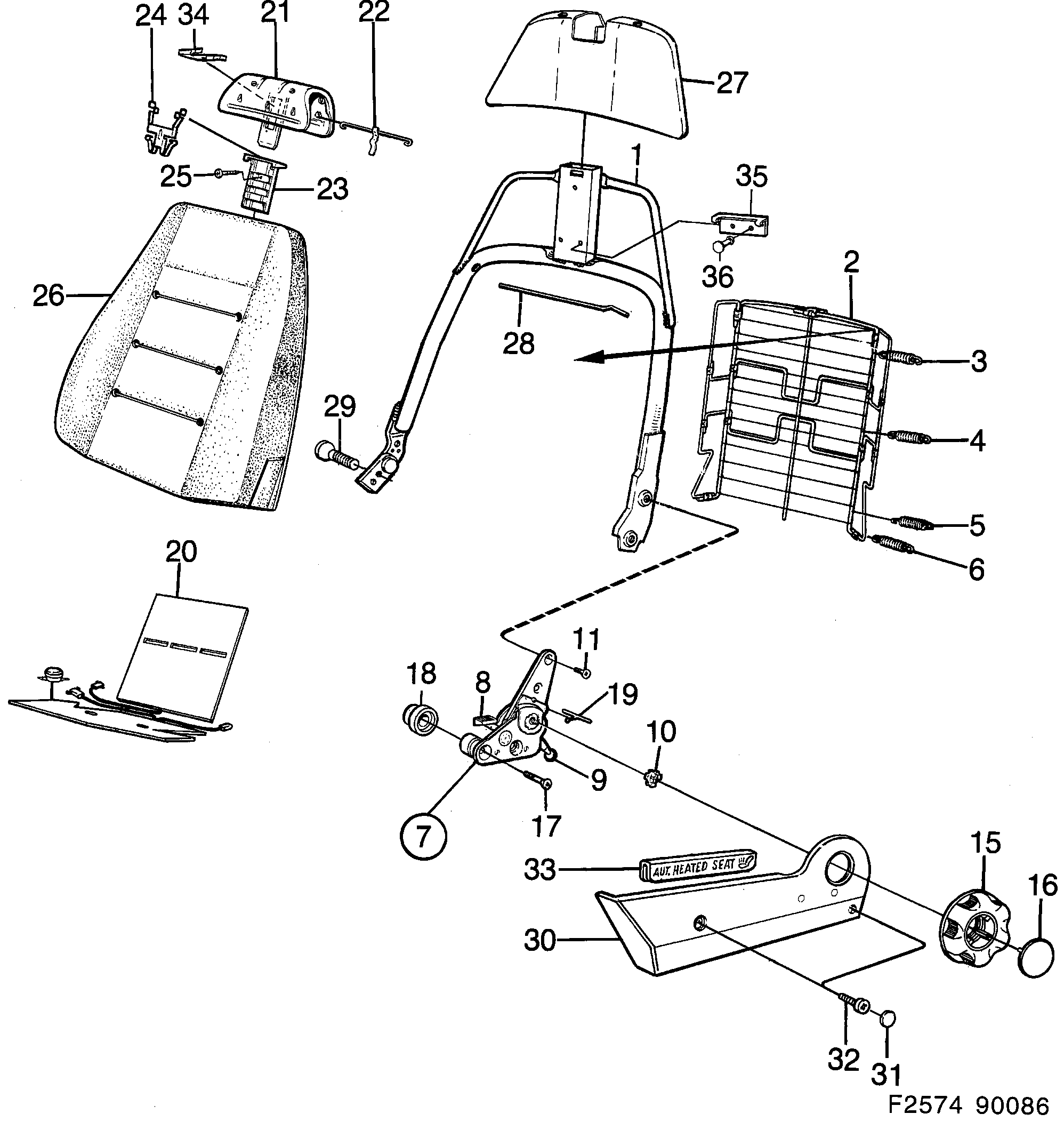

Group 8b Car body, internal, section 1480
| Pos | Article | Part No. |
|---|---|---|
| 1 | Backrest frame | 9746124 |
| 1 | Backrest frame | 9812322 |
| 2 | Wire matting | 9878570 |
| 3 | Spring | 9837410 |
| 4 | Spring | 9837428 |
| 5 | Spring | 9837436 |
| 6 | Spring | 9837444 |
| 7 | Reclining seat fitting | 9835190 |
| 7 | Reclining seat fitting | 9835208 |
| 7 | Reclining seat fitting | 9456765 |
| 7 | Reclining seat fitting | 9456773 |
| 8 | Button | 9487828 |
| 9 | Button | 9487810 |
| 10 | Lock washer | 9441270 |
| 11 | Screw | 7974744 |
| 15 | Steering wheel | 9851601 |
| 15 | Steering wheel | 9704511 |
| 16 | Cover | 9851619 |
| 16 | Cover | 9437021 |
| 17 | Screw | 9715525 |
| 18 | Washer | 9478066 |
| 19 | Hook | 9837022 |
| 21 | Framework | 9809690 |
| 21 | Head restraint | 9542168 |
| 22 | Wire rod | 9459868 |
| 23 | Sleeve | 9571696 |
| 23 | Sleeve | 4031563 |
| 24 | Locking spring | 9796848 |
| 25 | Screw | 7922396 |
| 28 | Wire rod | 9416181 |
| 29 | Screw | 7974033 |
| 29 | Screw | 7981921 |
| 30 | Cover | 9813296 |
| 30 | Cover | 9813304 |
| 30 | Cover | 9535261 |
| 30 | Cover | 9535279 |
| 30 | Cover | 9813254 |
| 30 | Cover | 9813262 |
| 30 | Cover | 9813270 |
| 30 | Cover | 9813288 |
| 30 | Cover | 9681891 |
| 30 | Cover | 9681909 |
| 30 | Cover | 9865775 |
| 30 | Cover | 9865783 |
| 31 | Cover | 9720889 |
| 31 | Cover | 9535287 |
| 31 | Cover | 9492471 |
| 31 | Cover | 9706466 |
| 31 | Plug | 9681917 |
| 31 | Cover | 9865767 |
| 32 | Screw | 92150118 (replaces 7970536) |
| 33 | Sign | 9829409 |
| 34 | Clamp | 9545104 |
| 35 | Attaching bracket | 9726779 |
| 36 | Rivet | 7961642 |
