Saab 900 1990-1990 Front seats Part 3 Manuel

Group 8b Car body, internal, section 1430

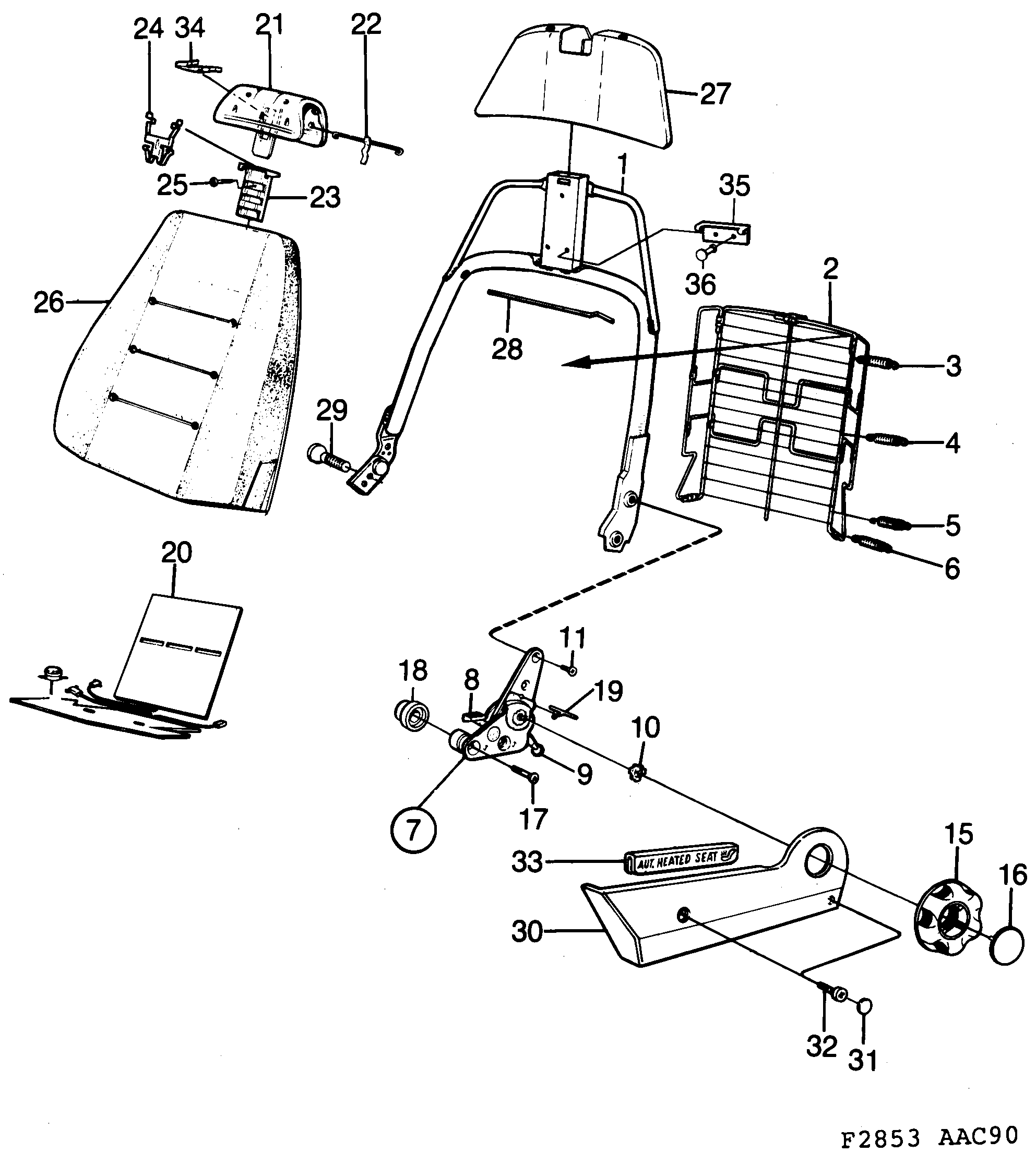

Saab 900 Front seats Part 3 Manuel diagram

Pos	Article	Part No.
1	Backrest frame	9746124
1	Backrest frame	9812322
2	Wire matting	9878570
3	Spring	9837410
4	Spring	9837428
5	Spring	9837436
6	Spring	9837444
7	Reclining seat fitting	9835190
7	Reclining seat fitting	9835208
7	Reclining seat fitting	9456765
7	Reclining seat fitting	9456773
8	Button	9487828
9	Button	9487810
10	Lock washer	9441270
11	Screw	7974744
15	Steering wheel	9851601
15	Steering wheel	9704511
16	Cover	9851619
16	Cover	9437021
17	Screw	9715525
18	Washer	9478066
19	Hook	9837022
21	Head restraint	9542168
22	Wire rod	9459868
23	Sleeve	4031563
24	Locking spring	9796848
25	Screw	7922396
28	Wire rod	9416181
29	Screw	7981921
30	Cover	9535261
30	Cover	9535279
30	Cover	9813270
30	Cover	9813288
30	Cover	9681891
30	Cover	9681909
30	Cover	9865775
30	Cover	9865783
31	Cover	9535287
31	Cover	9706466
31	Plug	9681917
31	Cover	9865767
32	Screw	92150118 (replaces 7970536)
33	Sign	9829409
34	Clamp	9545104
35	Attaching bracket	9726779
36	Rivet	7961642
