Saab 900 1990-1990 Front seats Part 2 Manuel

Group 8b Car body, internal, section 1400

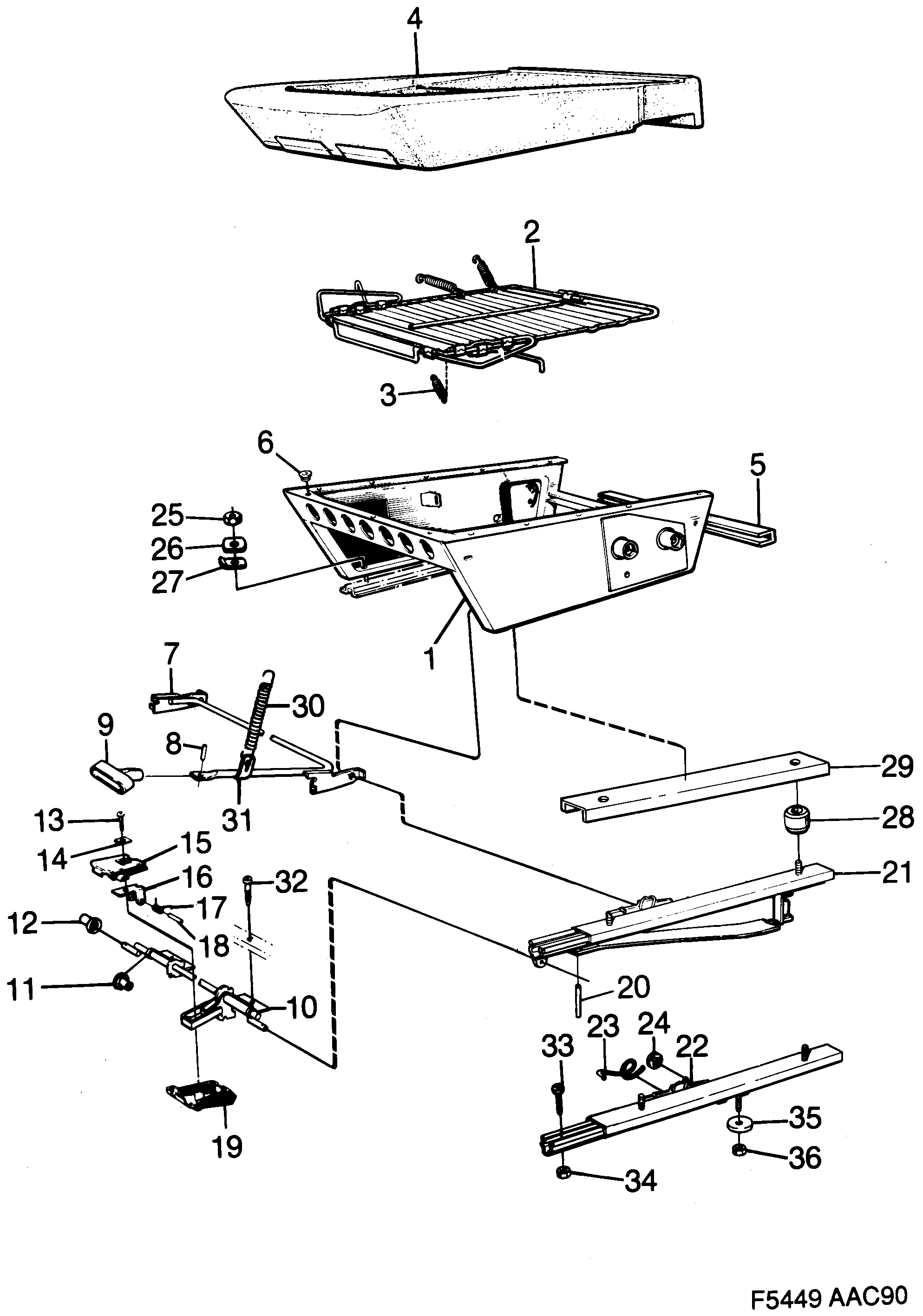

Saab 900 Front seats Part 2 Manuel diagram

Pos	Article	Part No.
1	Seat frame	4043196
1	Seat frame	4043246
2	Wire matting	9878562
3	Spring	9837402
4	Seat cushion	9688441
4	Seat cushion	9682014
5	Protection	9404831
6	Bushing	8407983
7	Control arm	9718297
7	Control arm	9718305
8	Roll pin	7946148
9	Handle	9465956
9	Handle	9488131
10	Adjusting shaft	9718602
10	Adjusting shaft	9718610
11	Bushing	9488370
12	Bushing	9473349
13	Screw	7970262
14	Washer	8425126
15	Upper part	8425035
16	Arm	8425100
17	Spring	9729724
18	Pin	8426173
19	Lower half	8425043
20	Roll pin	7956212
21	Seat rail	9833476
21	Seat rail	9833484
21	Seat rail	9833492
21	Seat rail	9833500
22	Seat rail	9718479
22	Seat rail	9718487
23	Spring	9476169
23	Spring	9476177
24	Lock washer	9476185
25	Nut	8151235
26	Washer	9489758
27	Washer	9489766
28	Spacer	9473364
29	Reinforcing bracket	9489337
30	Spring	8935751
31	Clip	9833971
32	Allen head screw	9718131
34	Nut	9849795
35	Washer	8939449
36	Nut	11900440 (replaces 8074288)
