Saab 900 1986-1987 Front seats Part 2

Group 8b Car body, internal, section 1360

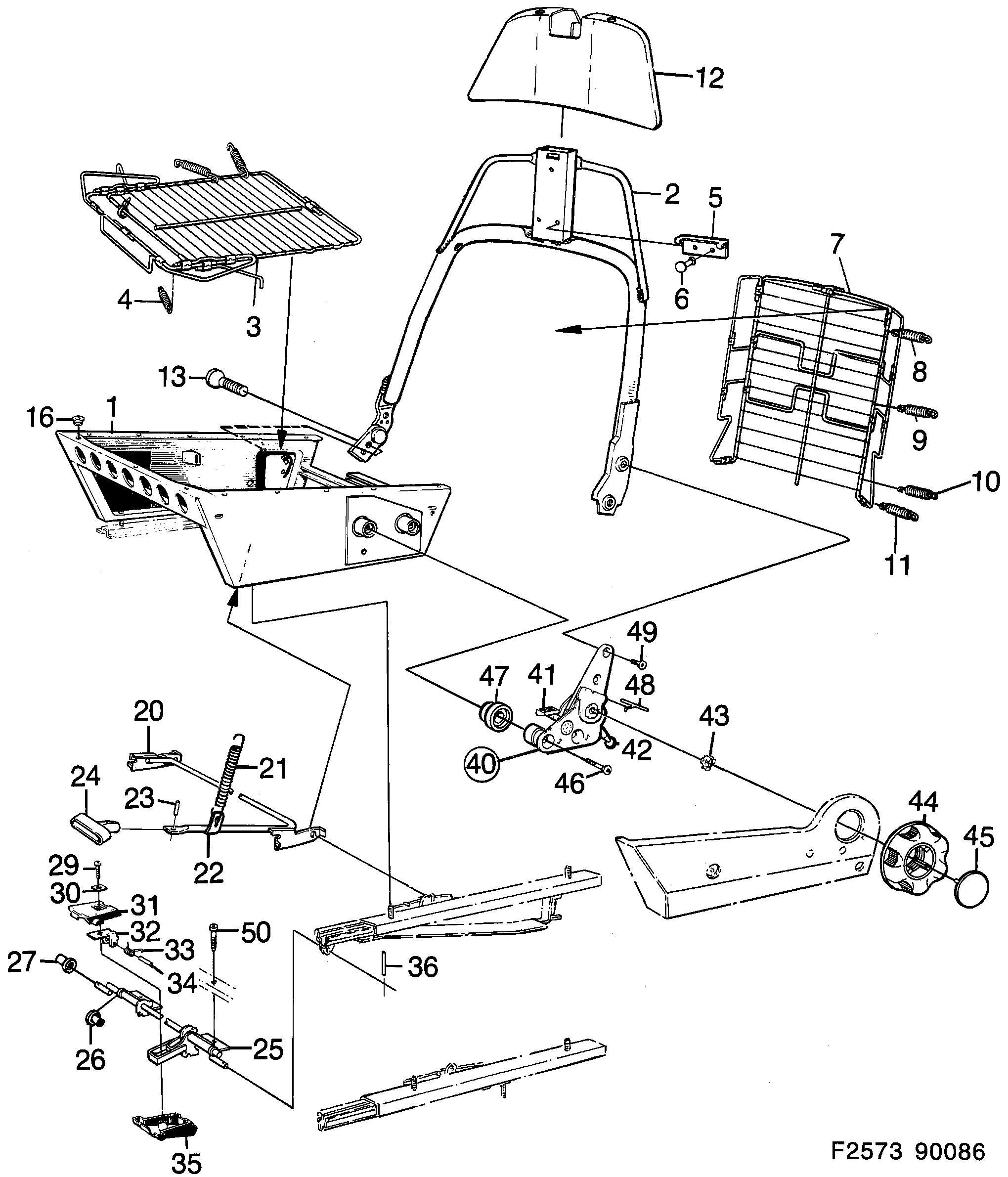

Saab 900 Front seats Part 2 diagram

Pos	Article	Part No.
1	Seat frame	9746082
1	Seat frame	9682964
1	Seat frame	9805052
1	Seat frame	9682972
2	Backrest frame	9746124
2	Backrest frame	9812322
3	Wire matting	9878562
4	Spring	9837402
5	Attaching bracket	9726779
6	Rivet	7961642
7	Wire matting	9878570
8	Spring	9837410
9	Spring	9837428
10	Spring	9837436
11	Spring	9837444
12	Cover	9702465
13	Screw	7974033
16	Bushing	8407983
20	Control arm	9718297
20	Control arm	9718305
21	Spring	8935751
22	Clip	9833971
23	Roll pin	7946148
24	Handle	9465956
24	Handle	9488131
25	Adjusting shaft	9718602
25	Adjusting shaft	9718610
26	Bushing	9488370
27	Bushing	9473349
29	Screw	7970262
30	Washer	8425126
31	Upper part	8425035
32	Arm	8425100
33	Spring	9729724
34	Pin	8426173
35	Lower half	8425043
36	Roll pin	7956212
40	Reclining seat fitting	9835190
40	Reclining seat fitting	9835208
40	Reclining seat fitting	9456765
40	Reclining seat fitting	9456773
41	Button	9487828
42	Button	9487810
43	Lock washer	9441270
44	Steering wheel	9851601
44	Steering wheel	9704511
45	Cover	9851619
45	Cover	9437021
46	Screw	9715525
47	Washer	9478066
48	Hook	9837022
49	Screw	7974744
50	Allen head screw	9718131
