Saab 900 1986-1989 Panel outlet

Group 8b Car body, internal, section 130

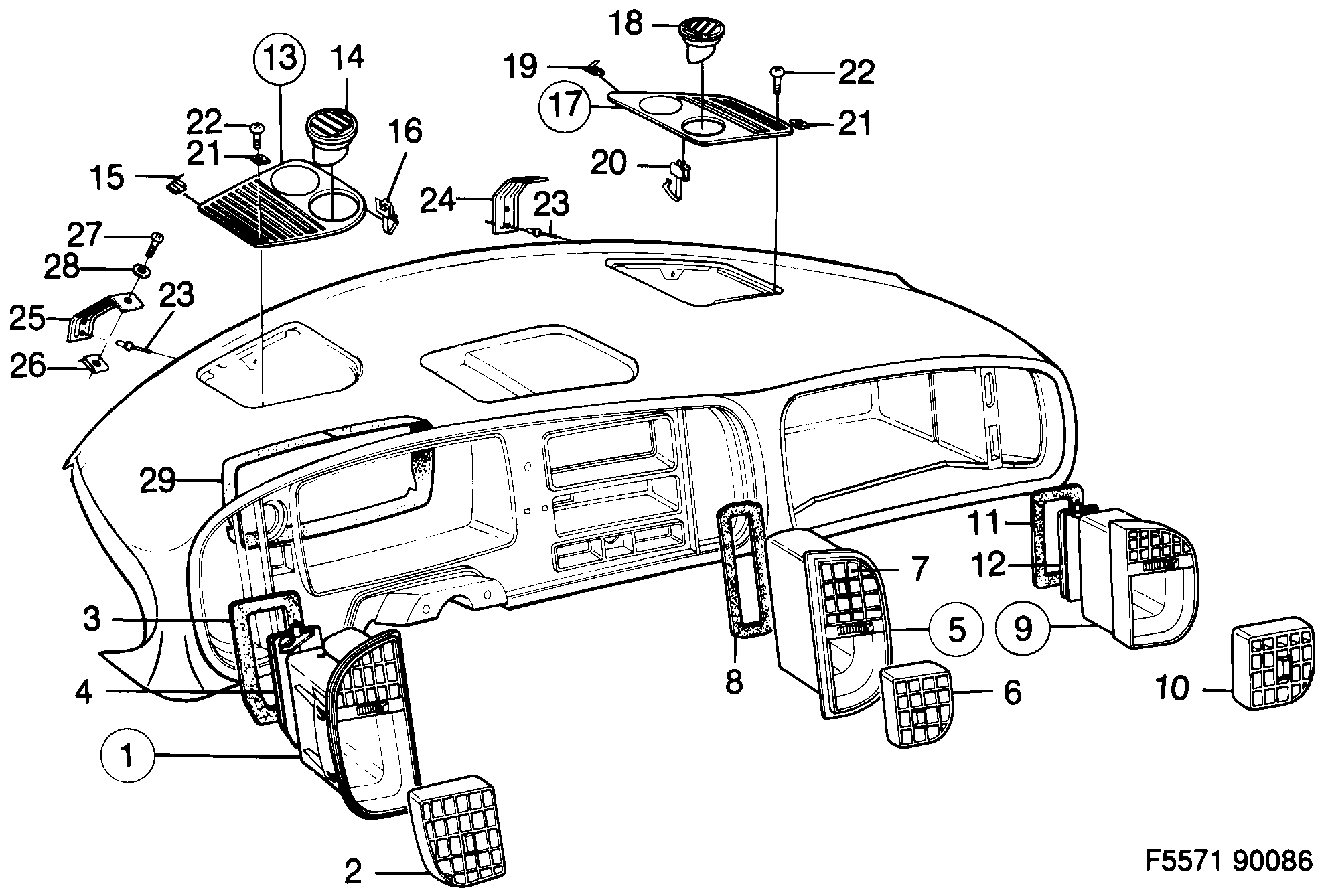

Saab 900 Panel outlet diagram

Pos	Article	Part No.
1	Panel outlet	9401357
1	Panel outlet	9420415
2	Air deflector	9418237
2	Air deflector	9420431
3	Seal	9418328
4	Shutter	9418310
5	Panel outlet	9418476
6	Air deflector	9418559
6	Air deflector	9418492
8	Seal	9419060
9	Panel outlet	9401381
9	Panel outlet	9420340
10	Air deflector	9418351
10	Air deflector	9420365
11	Seal	9418435
12	Shutter	9418427
13	Grille, loudspeaker	9837485
13	Grille, loudspeaker	9835620
13	Grille, loudspeaker	9841818
13	Grille, loudspeaker	9841776
14	Nozzle	9422676
15	Clip	9422056
16	Clip	9461047
17	Grille, loudspeaker	9837493
17	Grille, loudspeaker	9835638
17	Grille, loudspeaker	9841826
17	Grille, loudspeaker	9841784
18	Nozzle	9422684
21	Clip nut	9461435
22	Screw	7968084
23	Rivet	9849514
24	Bracket	9723321
25	Bracket	9425422
26	Clip nut	9427014
27	Screw	7922818
28	Washer	92153032 (replaces 7916489)
29	Seal	9445990
