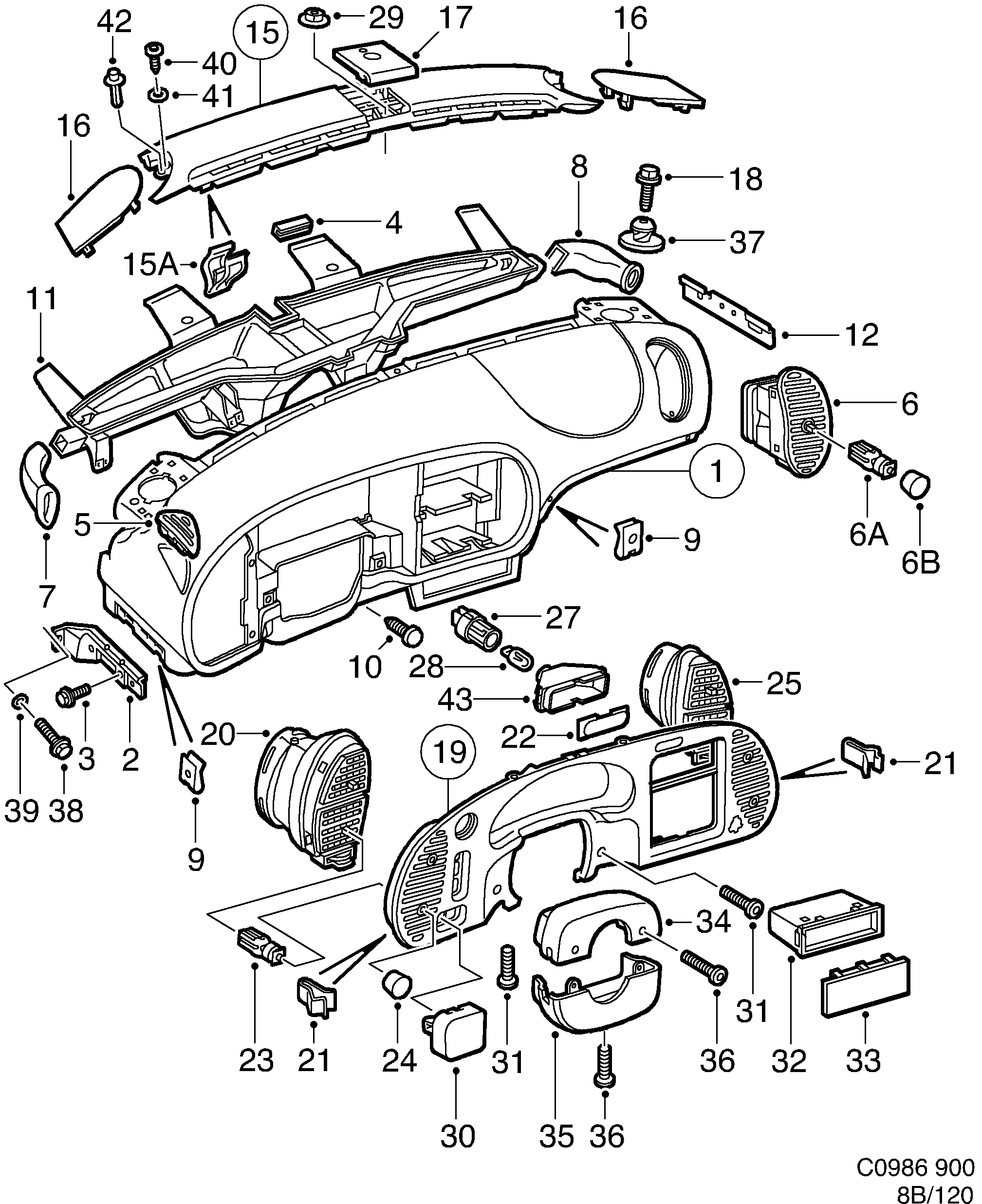

Group 8b Car body, internal, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Instrument panel | 4219192 |
| 1 | Instrument panel | 4609566 |
| 1 | Instrument panel | 5012075 |
| 1 | Instrument panel | 4219226 |
| 1 | Instrument panel | 4609574 |
| 1 | Instrument panel | 4848990 |
| 1 | Instrument panel | 4609582 (replaces 4219242) |
| 1 | Instrument panel | 4609582 |
| 1 | Instrument panel | 5012083 |
| 1 | Instrument panel | 4849014 (replaces 4420683) |
| 1 | Instrument panel | 4849014 (replaces 4609590) |
| 1 | Instrument panel | 4849014 |
| 2 | Bracket | 4216610 |
| 2 | Bracket | 4216602 |
| 3 | Screw | 11900353 (replaces 7978091) |
| 4 | Felt | 4824066 (replaces 4219218) |
| 5 | Defroster jet | 4364121 |
| 5 | Defroster jet | 4364139 |
| 6 | Air outlet | 4230363 |
| 6 | Air outlet | 4221735 |
| 6A | Control knob | 4383923 |
| 6B | Knob | 4383931 |
| 7 | Duct | 4364303 |
| 7 | Duct | 4222196 |
| 8 | Duct | 4364311 |
| 8 | Duct | 4222204 |
| 9 | Clip nut | 7968001 |
| 10 | Screw | 92150118 (replaces 7970536) |
| 12 | Support plate | 4607057 |
| 15 | Cover | 4641890 (replaces 4219374) |
| 15 | Cover | 4641890 (replaces 4606737) |
| 15 | Cover | 4641890 |
| 15A | Clamp | 92152185 (replaces 4423075) |
| 16 | Grille, loudspeaker | 4641171 (replaces 4389763) |
| 16 | Grille, loudspeaker | 4641189 (replaces 4389771) |
| 16 | Grille, loudspeaker | 4641171 |
| 16 | Grille, loudspeaker | 4641189 |
| 17 | Cover | 4389698 |
| 17 | Cover | 4518171 |
| 17 | Cover | 4389706 |
| 17 | Cover | 4518163 |
| 18 | Screw | 7978133 |
| 19 | Instrument plate | 4616645 (replaces 4471207) |
| 19 | Instrument plate | 4616645 |
| 19 | Instrument plate | 400111993 (replaces 4641262) |
| 19 | Instrument plate | 4616652 (replaces 4471215) |
| 19 | Instrument plate | 4616652 |
| 19 | Instrument plate | 400112009 (replaces 4641270) |
| 20 | Air outlet | 7495187 |
| 20 | Air outlet | 7495708 |
| 20 | Air outlet | 7495195 |
| 21 | Clamp | 4470548 |
| 22 | Symbol washer | 9481219 |
| 25 | Air outlet | 7495716 |
| 27 | Bulb socket | 8509697 |
| 28 | Bulb | 93190474 (replaces 8500613) |
| 29 | Nut | 12802365 (replaces 4087664) |
| 29 | Nut | 7985377 |
| 31 | Screw | 92153006 (replaces 7977002) |
| 32 | Storage tray | 4234050 |
| 32 | Storage tray | 4616660 |
| 33 | Cover plate | 4388302 |
| 34 | Steering column cover | 4420238 |
| 34 | Steering column cover | 4420253 |
| 35 | Steering column cover | 4420246 |
| 35 | Steering column cover | 4420261 |
| 36 | Screw | 7977283 |
| 37 | Friction washer | 4439816 |
| 37 | Friction washer | 12778949 (replaces 4609954) |
| 38 | Screw | 11900354 (replaces 7978109) |
| 39 | Washer | 7061328 |
| 40 | Screw | 4087615 |
| 41 | Washer | 7973894 |
| 42 | Expanding rivet | 4470639 |
| 43 | Lamp body | 4471074 |
