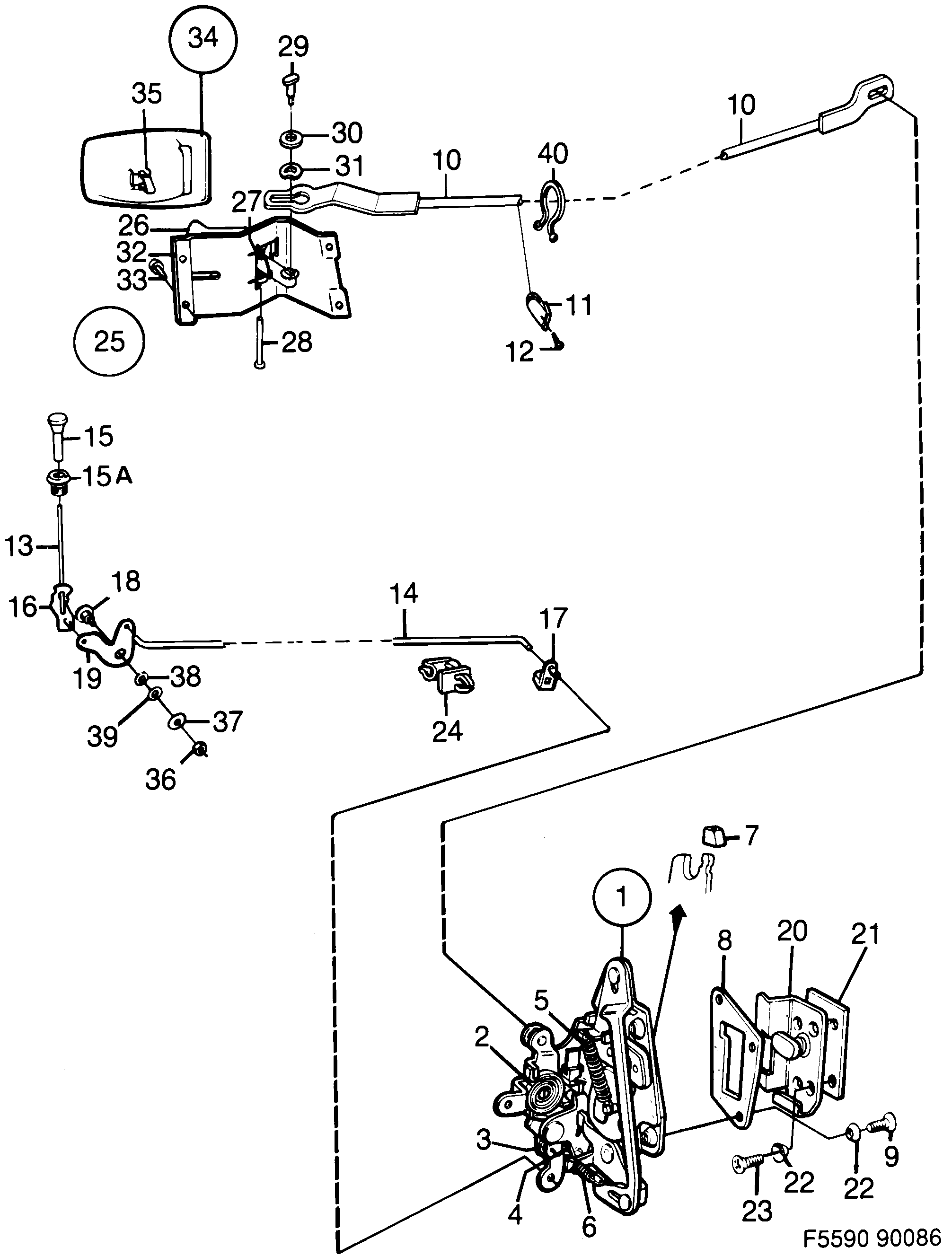

Group 8a Car body, external, section 940
| Pos | Article | Part No. |
|---|---|---|
| 1 | Door lock | 9236670 |
| 1 | Door lock | 9236688 |
| 2 | Spring | 8447997 |
| 3 | Spring | 8448029 |
| 4 | Spring | 8457566 |
| 5 | Tension spring | 9281130 |
| 6 | Spring | 8287153 |
| 7 | Absorber | 8456808 |
| 8 | Spacer | 8456006 |
| 9 | Screw | 7973472 |
| 10 | Control link | 9235805 |
| 10 | Control link | 9235813 |
| 10 | Control link | 9295635 |
| 10 | Control link | 9295643 |
| 11 | Guide | 9287392 |
| 12 | Screw | 7922263 |
| 13 | Rod | 8267130 |
| 14 | Rod | 8415929 |
| 14 | Link | 9295650 |
| 15 | Button | 9446022 |
| 15A | Bushing | 9731498 |
| 16 | Clamp | 7153695 |
| 17 | Clip | 8453755 |
| 18 | Screw | 8441925 |
| 19 | Lever | 8415820 |
| 19 | Lever | 8415887 |
| 20 | Striker | 8262768 |
| 20 | Striker | 8262750 |
| 21 | Nut plate | 8241994 |
| 22 | Washer | 7934136 |
| 23 | Screw | 7937956 |
| 24 | Guide | 8444614 |
| 25 | Handle | 9473802 |
| 25 | Handle | 9473810 |
| 26 | Handle | 9465113 |
| 27 | Spring | 8403305 |
| 28 | Rivet pin | 8403396 |
| 29 | Rivet | 8408460 |
| 30 | Washer | 8408478 |
| 31 | Washer | 9707217 |
| 32 | Base plate | 8415994 |
| 32 | Base plate | 8416000 |
| 33 | Screw | 7922420 |
| 34 | Cover | 8445785 |
| 35 | Clip | 8403529 |
| 36 | Nut | 7910474 |
| 37 | Washer | 7915663 |
| 38 | Washer | 8413742 |
| 39 | Plastic washer | 8448169 |
| 40 | Tie strap | 7971864 |
