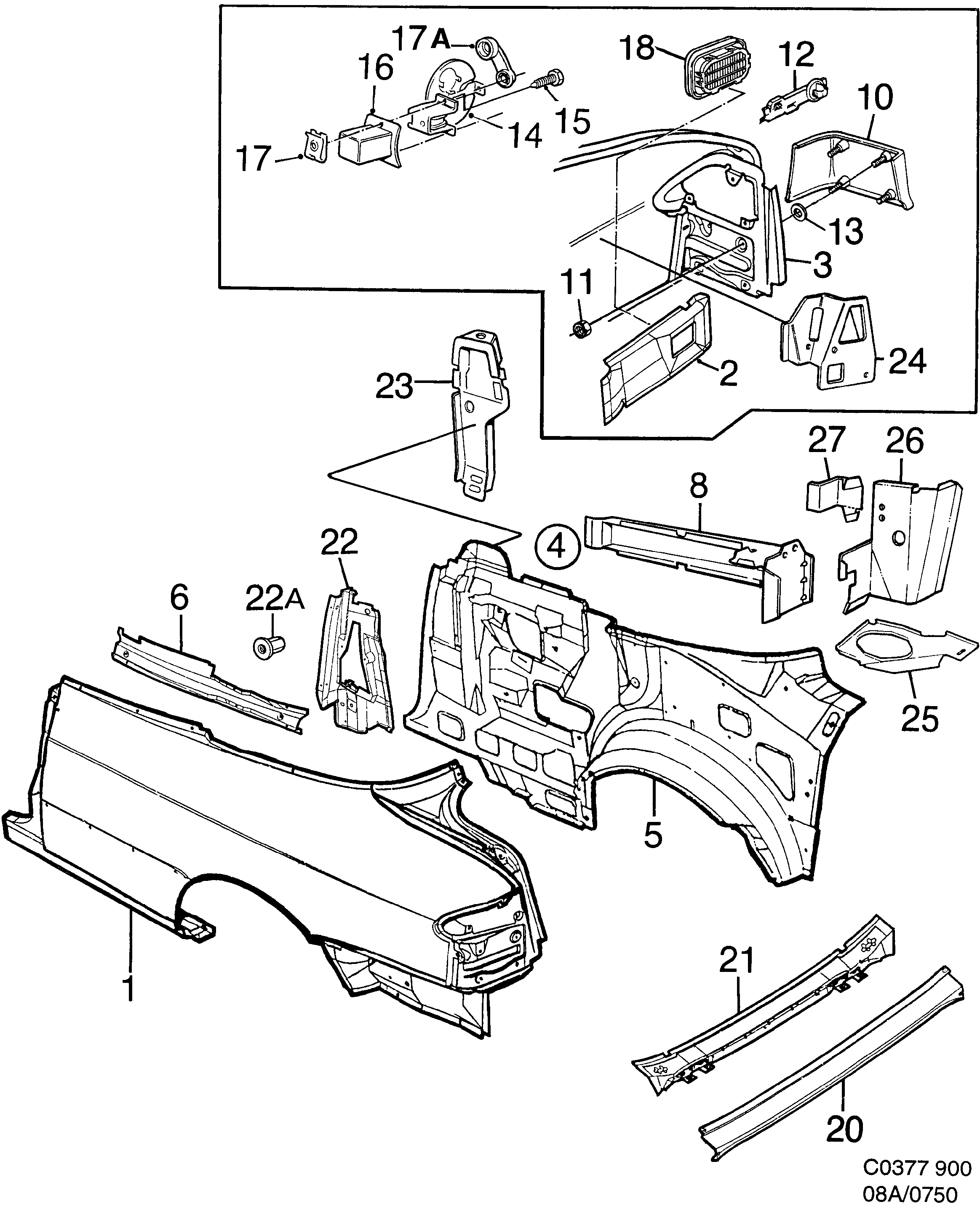

Group 8a Car body, external, section 750
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 30557268 (replaces 4295655) |
| 1 | Valance | 4922167 (replaces 4295663) |
| 2 | Filling-in plate | 4337879 |
| 2 | Filling-in plate | 4921524 (replaces 4337887) |
| 3 | Attaching frame | 4337853 |
| 3 | Attaching frame | 4337861 |
| 4 | Valance | 4296612 |
| 4 | Valance | 4296620 |
| 5 | Valance | 4922670 (replaces 4295697) |
| 5 | Valance | 4924940 (replaces 4295705) |
| 6 | Beam | 4295713 |
| 6 | Beam | 4295721 |
| 8 | Reinforcement | 4295937 |
| 8 | Reinforcement | 4295945 |
| 10 | Corner filler panel | 4296372 |
| 10 | Corner filler panel | 4296380 |
| 11 | Nut | 11900451 (replaces 7977929) |
| 12 | Bracket | 4957486 |
| 13 | Rubber washer | 8537623 (replaces 4296356) |
| 13 | Washer | 8537623 |
| Lock washer | 7971518 | |
| 14 | Tank hatch | 5185749 (replaces 4555546) |
| 14 | Tank hatch | 5185749 (replaces 4766580) |
| 15 | Hexagon screw | 92153149 (replaces 7983000) |
| 16 | Cover | 4306619 |
| 17 | Clip nut | 4858643 (replaces 4087672) |
| 18 | Air evacuation | 4230330 |
| 20 | Crossmember | 30557273 (replaces 4295739) |
| 21 | Crossmember | 4295747 |
| 22 | Reinforcement | 5330253 (replaces 4295879) |
| 22 | Reinforcement | 5330261 (replaces 4295887) |
| 22A | Rivet nut | 9130829 (replaces 7399454) |
| 23 | Bracket | 4296117 |
| 23 | Bracket | 4296125 |
| 24 | Bracket | 4295648 |
| 25 | Bracket | 30557278 (replaces 4296059) |
| 25 | Bracket | 30557279 (replaces 4296067) |
| 26 | Support plate | 30557280 (replaces 4296075) |
| 26 | Support plate | 30557281 (replaces 4296083) |
| 27 | Bracket | 30557282 (replaces 4296091) |
| 27 | Bracket | 30557283 (replaces 4296109) |
