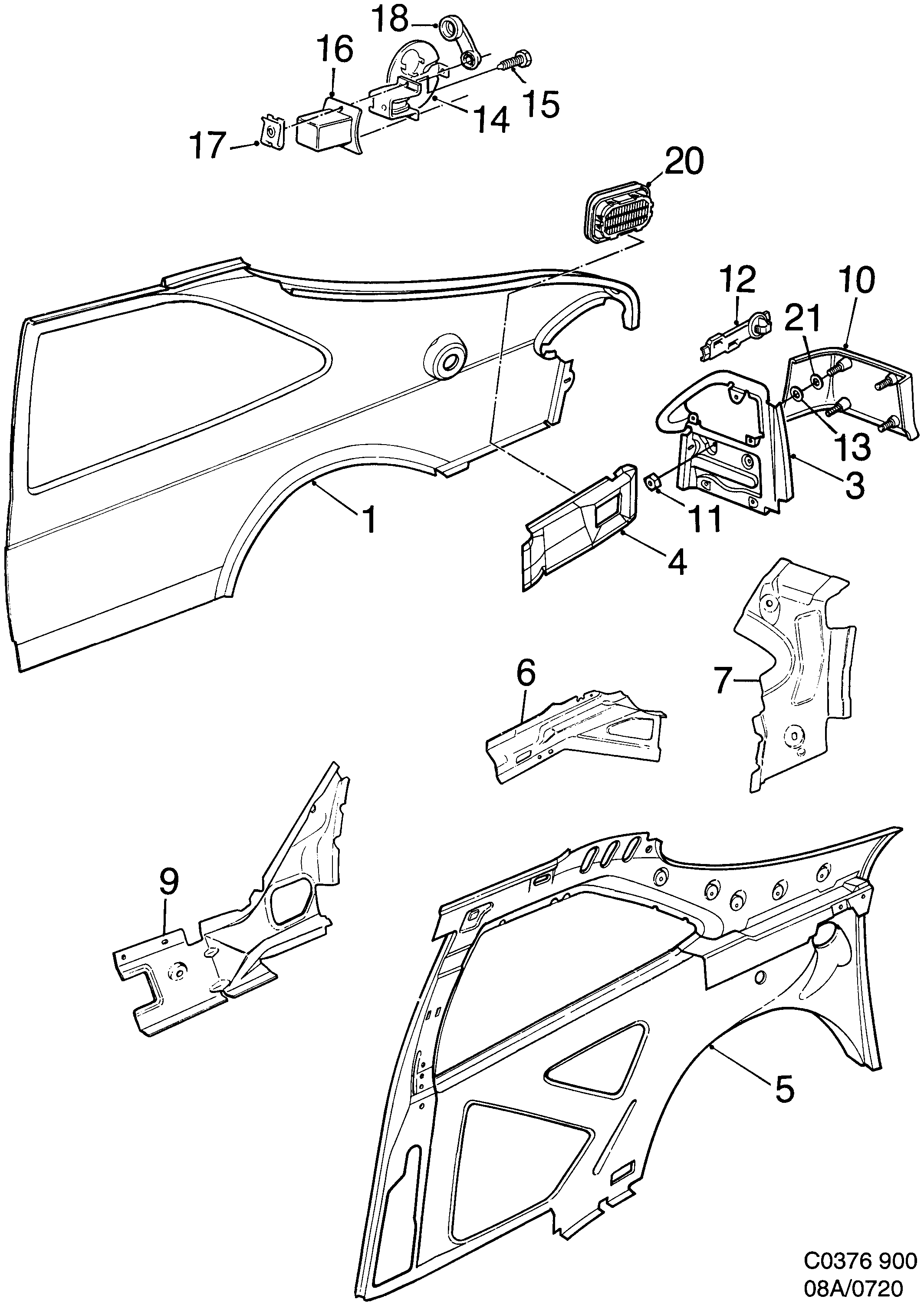

Group 8a Car body, external, section 720
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 4339073 |
| 1 | Valance | 4921607 (replaces 4339081) |
| 3 | Attaching frame | 4337853 |
| 3 | Attaching frame | 4337861 |
| 4 | Filling-in plate | 4337879 |
| 4 | Filling-in plate | 4921524 (replaces 4337887) |
| 5 | Valance | 4470639 (replaces 4339115) |
| 5 | Valance | 4470639 (replaces 4339123) |
| 5 | Valance | 4298691 |
| 5 | Valance | 4298709 |
| 6 | Reinforcement | 4339214 |
| 6 | Reinforcement | 4339222 |
| 7 | Reinforcement | 4339230 |
| 7 | Reinforcement | 4339248 |
| 9 | Reinforcing plate | 4339255 |
| 9 | Reinforcing plate | 4339263 |
| 10 | Corner filler panel | 4332912 |
| 10 | Corner filler panel | 4332920 |
| 10 | Corner filler panel | 4296372 |
| 10 | Corner filler panel | 4296380 |
| 11 | Nut | 11900451 (replaces 7977929) |
| 12 | Bracket | 4957486 |
| 13 | Rubber washer | 8537623 (replaces 4296356) |
| 13 | Washer | 8537623 |
| Lock washer | 7971518 | |
| 14 | Tank hatch | 5185731 (replaces 4493748) |
| 14 | Tank hatch | 5185731 (replaces 4766572) |
| 15 | Hexagon screw | 92153149 (replaces 7983000) |
| 16 | Cover | 4306619 |
| 17 | Clip nut | 4858643 (replaces 4087672) |
| 20 | Air evacuation | 4230330 |
