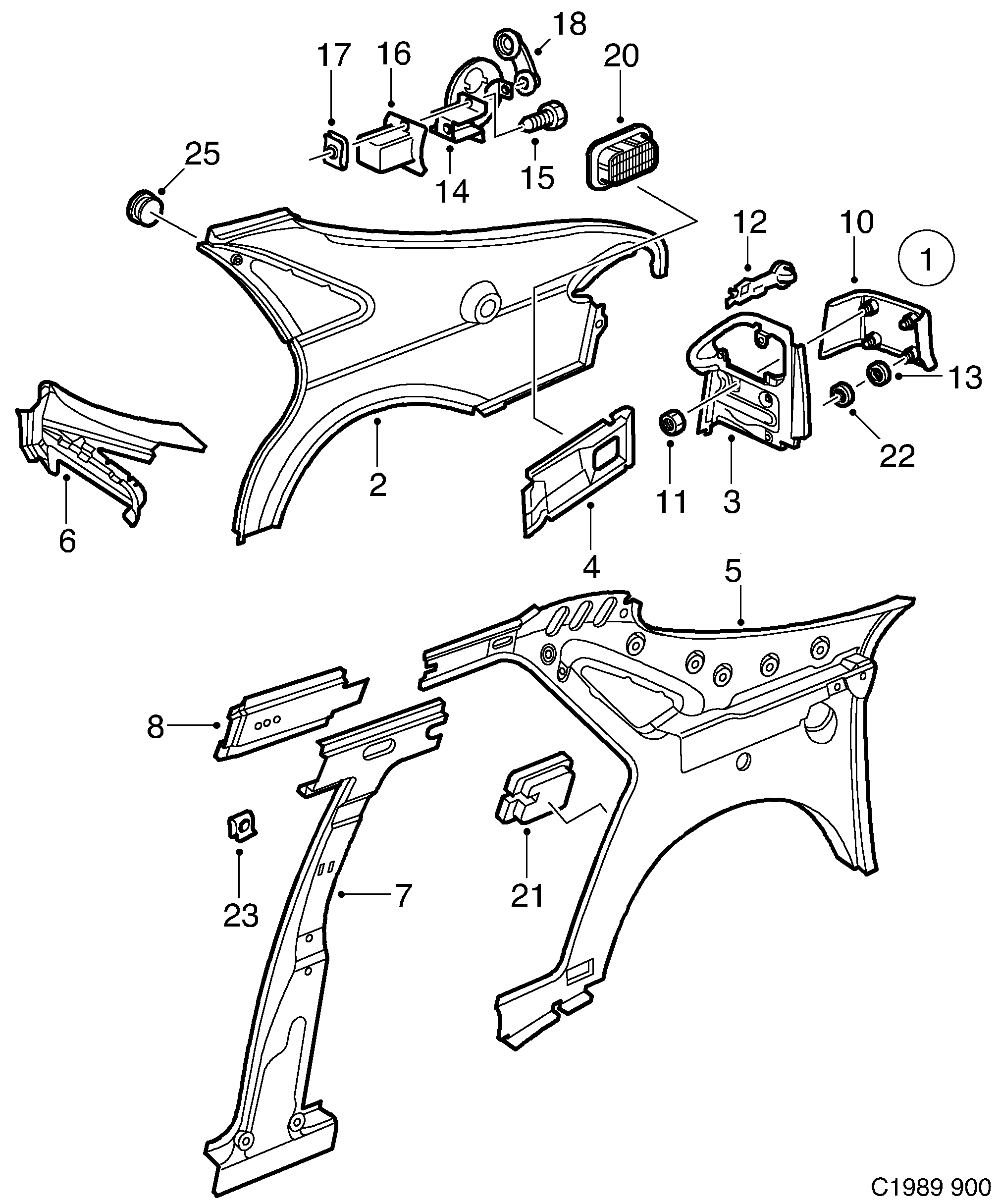

Group 8a Car body, external, section 690
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 4338117 |
| 1 | Valance | 4541579 (replaces 4338125) |
| 2 | Valance | 4337838 |
| 2 | Valance | 4337846 |
| 3 | Attaching frame | 4337853 |
| 3 | Attaching frame | 4337861 |
| 4 | Filling-in plate | 4337879 |
| 4 | Filling-in plate | 4921524 (replaces 4337887) |
| 5 | Valance | 4338018 |
| 5 | Valance | 4338026 |
| 6 | Reinforcement | 4337911 |
| 6 | Reinforcement | 4337929 |
| 7 | B-pillar | 4338794 |
| 7 | B-pillar | 4338802 |
| 8 | Cover plate | 4339297 |
| 8 | Cover plate | 4339305 |
| 10 | Corner filler panel | 4332912 |
| 10 | Corner filler panel | 4332920 |
| 10 | Corner filler panel | 4296372 |
| 10 | Corner filler panel | 4296380 |
| 11 | Nut | 11900451 (replaces 7977929) |
| 12 | Bracket | 4957486 |
| 13 | Rubber washer | 8537623 (replaces 4296356) |
| 13 | Washer | 8537623 |
| 13A | Lock washer | 7971518 |
| 14 | Tank hatch | 5185731 (replaces 4493748) |
| 14 | Tank hatch | 5185731 (replaces 4766572) |
| 15 | Hexagon screw | 92153149 (replaces 7983000) |
| 16 | Cover | 4306619 |
| 17 | Clip nut | 4858643 (replaces 4087672) |
| 20 | Air evacuation | 4230330 |
| 21 | Seal | 4340196 |
