Saab 900 1997-1998 Bow 1, 2, 3, 4 and 5

Group 8a Car body, external, section 480

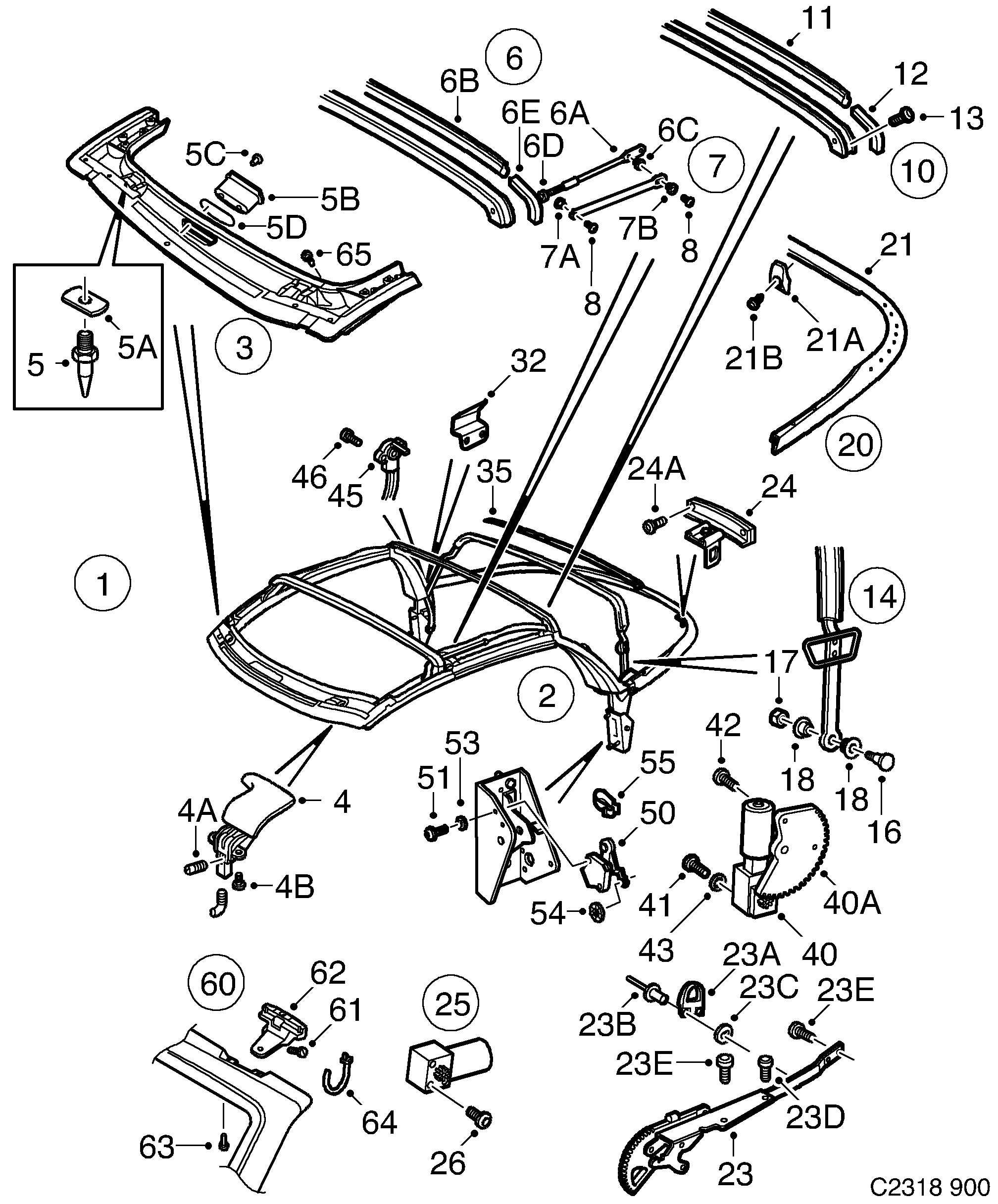

Saab 900 Bow 1, 2, 3, 4 and 5 diagram

Pos	Article	Part No.
1	Top cloth	4856217
1	Top cloth	4856225
2	Top stack	4857173
3	Bow	4696571
4	Lock	4698213
4	Lock	4698221
4A	Screw	4859781
4B	Screw	4555629
5	Locating pin	4766895
5A	Nut	4859799
5B	Pocket	4859765
5C	Screw	7974421
5D	Sealing shape	4901393
6	Bow	4850749
6A	Link arm	4697280
6A	Link arm	4696811
6B	Sealing shape	4901385
6C	Bushing	4696829
6D	Nut	4901153
6E	Tape	4857645
7	Link arm	4697298
7B	Bushing	4767455
8	Bolt	4696837
10	Bow	4850756
13	Screw	92151821 (replaces 8059552)
14	Bow	4851796
16	Bolt	4555843
17	Lock nut	55557005 (replaces 7965767)
18	Bushing	4556106
20	Bow	4850780
21	Bow	4696902
21A	Guide	4697272
21B	Screw	4856993
23	Drive arm	5360169
	Bracket	4850798
	Washer	8073108
23	Drive arm	5360177
	Bracket	4850806
23A	Stop plate	4696886
23B	Rivet	4696894
23C	Washer	8029944
24	Striker	4850814
24	Striker	4850822
25	Electrical motor	4850707
25	Electrical motor	4850616
26	Screw	8059628
32	Cover	4559951
35	Mounting strap	5360540
40	Electrical motor	4850715
40	Electrical motor	4850624
40A	Gear segment	4857264
40A	Gear segment	4857256
42	Screw	4857249
45	Potentiometer	4696985
46	Screw	8055592
50	Potentiometer	4697017
51	Screw	92150458 (replaces 8059263)
53	Washer	4555983
54	Quick nut	4556098
55	Clip	4557658
60	Lock	4695987
61	Screw	4685095
62	Microswitch	4695979
63	Screw	7975451
64	Tie strap	8552663
65	Screw	4767752
	Tape	4695870
