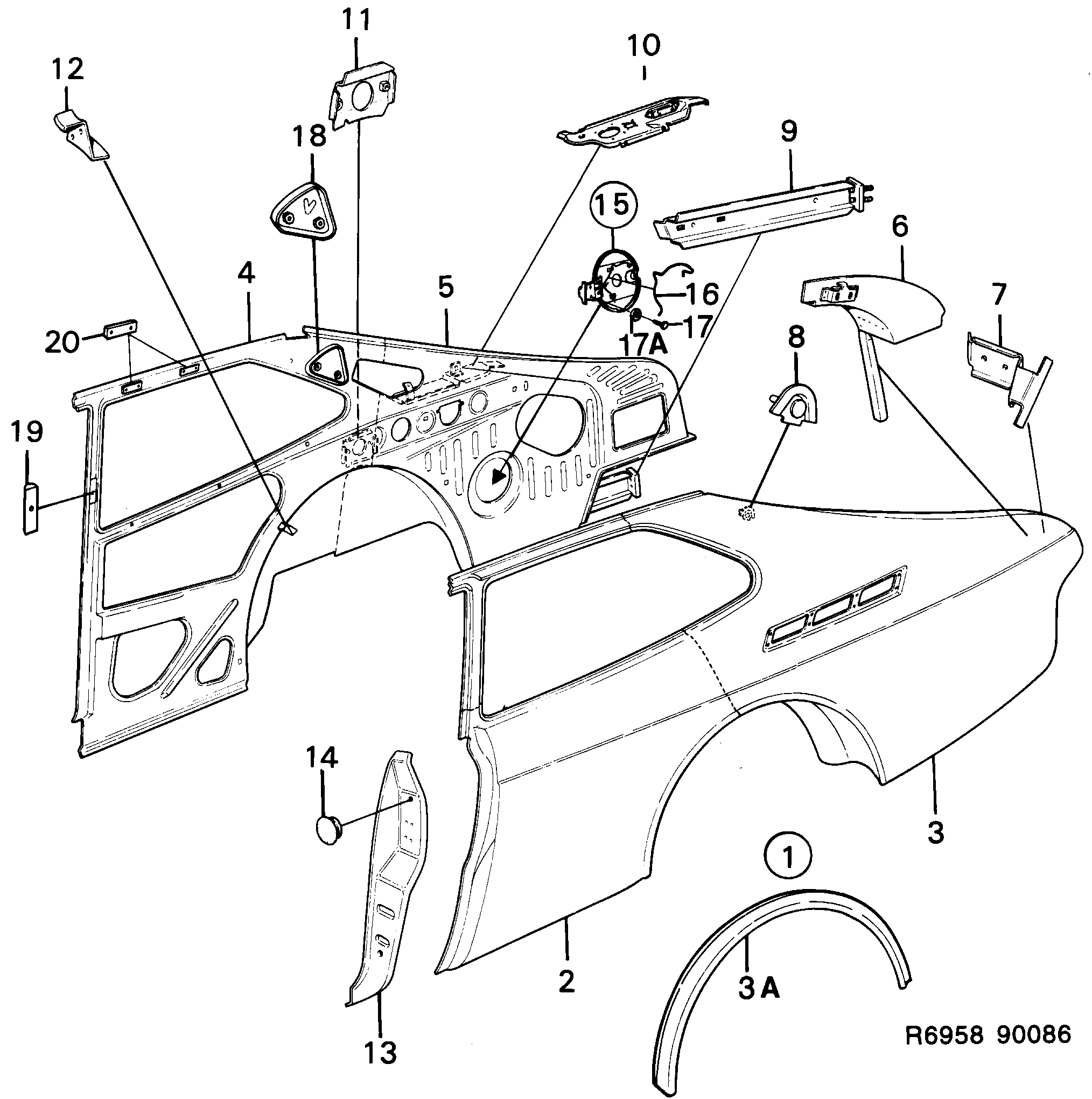

Group 8a Car body, external, section 460
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valance | 9229717 |
| 1 | Valance | 9284043 (replaces 9229725) |
| 2 | Valance | 9228230 |
| 2 | Valance | 9228248 |
| 3 | Valance | 8253155 |
| 3 | Valance | 8253163 |
| 3A | Fender repair part | 7874118 |
| 4 | Valance | 8256786 |
| 4 | Valance | 8256794 |
| 4 | Valance | 6927412 |
| 4 | Valance | 6927420 |
| 5 | Valance | 9289059 |
| 5 | Plate | 8255242 |
| 6 | Plate | 8285462 |
| 6 | Plate | 8285470 |
| 7 | Bracket | 9223777 |
| 7 | Bracket | 9223785 |
| 8 | Bracket | 8283665 |
| 9 | Reinforcement | 9221995 |
| 9 | Reinforcement | 9222001 |
| 10 | Support | 6917116 |
| 10 | Support | 6917124 |
| 11 | Bracket | 8283921 |
| 11 | Bracket | 8283939 |
| 12 | Support | 7601727 |
| 13 | End plate | 7600828 |
| 13 | End plate | 7600836 |
| 14 | Plug | 7038342 |
| 15 | Cover | 8286304 |
| 16 | Spring | 8262537 |
| 17 | Screw | 7972508 |
| 17A | Washer | 8073090 |
| 18 | Reinforcement | 7601552 |
| 18 | Reinforcement | 7601560 |
| 19 | Washer | 7601545 |
| 20 | Mounting bracket | 8209967 |
