Saab 900 1996-1997 Bow 1, 2, 3, 4 and 5

Group 8a Car body, external, section 450

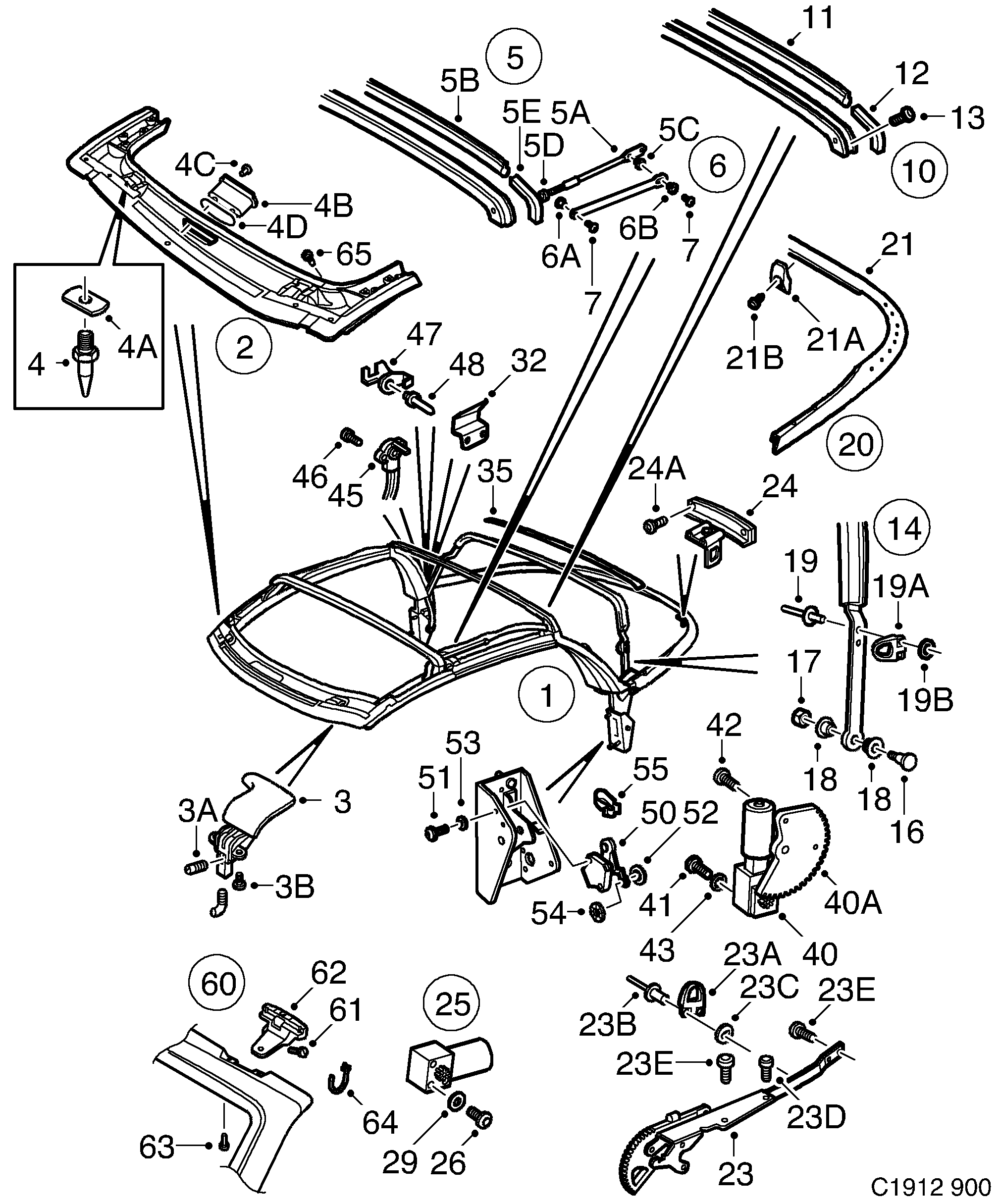

Saab 900 Bow 1, 2, 3, 4 and 5 diagram

Pos	Article	Part No.
1	Top stack	4857173 (replaces 4850848)
2	Bow	4696571
3	Lock	4698213
3	Lock	4698221
3A	Screw	4859781
3B	Screw	4555629
4	Locating pin	4766895
4A	Nut	4859799
4B	Pocket	4859765
4C	Screw	7974421
4D	Sealing shape	4901393
5	Bow	4850749
5A	Link arm	4697280
5A	Link arm	4696811
5B	Sealing shape	4901385
5C	Bushing	4696829
5D	Nut	4901153
5E	Tape	4857645
6	Link arm	4697298
6B	Bushing	4767455
7	Bolt	4696837
10	Bow	4850756
13	Screw	4850764
14	Bow	4851796
16	Bolt	4555843
17	Nut	4556080
18	Bushing	4556106
19	Rivet	4696894
19A	Stop plate	4696886
19B	Washer	8029944
20	Bow	4850780
21	Bow	4696902
21A	Guide	4697272
21B	Screw	4856993
23	Drive arm	5360169
	Bracket	4850798
	Washer	8073108
23	Drive arm	5360177
	Bracket	4850806
24	Striker	4850814
24	Striker	4850822
25	Electrical motor	4850707
25	Electrical motor	4850616
26	Screw	8059628
29	Washer	4555959
32	Cover	4559951
35	Mounting strap	5360540
40	Electrical motor	4850715
40	Electrical motor	4850624
40A	Gear segment	4857264
40A	Gear segment	4857256
42	Bolt	4555850
45	Potentiometer	4696985
46	Screw	4555785
47	Bracket	4559407
48	Rivet	92153060 (replaces 7972516)
50	Potentiometer	4697017
51	Screw	4555637
52	Washer	4555926
53	Washer	4555983
54	Quick nut	4556098
55	Clip	4557658
60	Lock	4695987
61	Screw	4685095
62	Microswitch	4695979
63	Screw	7975451
64	Tie strap	8552663
65	Blind rivet	4696894 (replaces 4556015)
65	Screw	4767752
	Tape	4695870
	Repair kit	5360557
	Bolt	4555868
	Washer	4555991
	Bushing	4556114
	Bushing	4556130
	Plug	4556239
	Bushing	6952014
