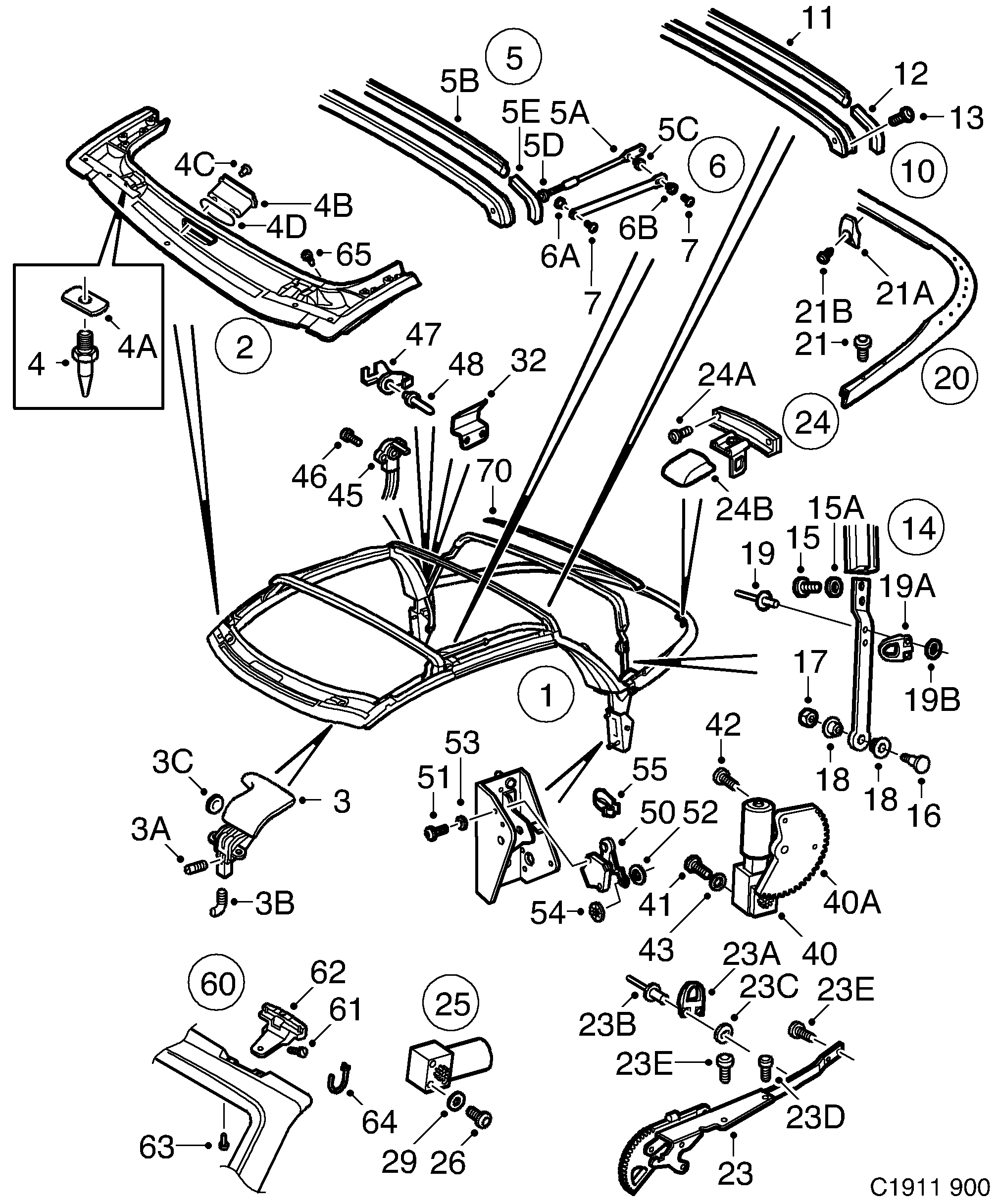

Group 8a Car body, external, section 420
| Pos | Article | Part No. |
|---|---|---|
| 1 | Top stack | 4857173 (replaces 4556486) |
| 2 | Bow | 4696571 (replaces 4556411) |
| 3 | Lock | 4698213 (replaces 4494811) |
| 3 | Lock | 4698213 |
| 3 | Lock | 4698221 (replaces 4494829) |
| 3 | Lock | 4698221 |
| 3A | Screw | 4859781 |
| 3B | Hook | 4556494 |
| 3C | Extension | 4556502 |
| 4 | Locating pin | 4766895 |
| 4A | Nut | 4859799 |
| 4B | 4859765 | |
| 4C | Screw | 7974421 |
| 4D | Sealing shape | 4901393 |
| 5 | Bow | 4850749 (replaces 4697223) |
| 5A | Link arm | 4697280 |
| 5A | Link arm | 4696811 |
| 5B | Sealing shape | 4901385 |
| 5C | Bushing | 4696829 |
| 5D | Nut | 4901153 |
| 5E | Tape | 4857645 |
| Link rod kit | 4767513 | |
| 6 | Link arm | 4697298 |
| 6B | Bushing | 4767455 |
| 7 | Bolt | 4696837 |
| 10 | Bow | 4850756 (replaces 4494753) |
| 13 | Screw | 4555629 |
| 14 | Bow | 4851796 (replaces 4494761) |
| 14 | Bow | 4851796 (replaces 4697512) |
| 14 | Bow | 4851796 (replaces 4850772) |
| 14 | Bow | 4851796 |
| 15A | Washer | 4555967 |
| 16 | Bolt | 4555843 |
| 17 | Nut | 4556080 |
| 18 | Bushing | 4556106 |
| 19 | Rivet | 4696894 |
| 19A | Stop plate | 4696886 |
| 19B | Washer | 8029944 |
| 20 | Bow | 4494787 |
| 21 | Screw | 4555736 |
| 21A | Guide | 4697272 |
| 21B | Screw | 4856993 |
| 23 | Drive arm | 5360169 |
| Bracket | 4850798 | |
| Washer | 8073108 | |
| 23 | Drive arm | 5360177 |
| Bracket | 4850806 | |
| 24 | Striker | 4850814 |
| 24 | Striker | 4850822 |
| 24B | Cover | 4559431 |
| 24B | Cover | 4559456 |
| 25 | Electrical motor | 4850707 |
| 25 | Electrical motor | 4850616 |
| 26 | Screw | 4555710 |
| 29 | Washer | 4555959 |
| 32 | Cover | 4559951 |
| 40 | Electrical motor | 4850715 |
| 40 | Electrical motor | 4850624 |
| 40A | Gear segment | 4857264 |
| 40A | Gear segment | 4857256 |
| 41 | Screw | 8059628 |
| 42 | Bolt | 4555850 |
| 45 | Potentiometer | 4696985 |
| 46 | Screw | 4555785 |
| 47 | Bracket | 4559407 |
| 48 | Rivet | 92153060 (replaces 7972516) |
| 50 | Potentiometer | 4697017 |
| 51 | Screw | 4555637 |
| 52 | Washer | 4555926 |
| 53 | Washer | 4555983 |
| 54 | Quick nut | 4556098 |
| 55 | Clip | 4557658 |
| 60 | Lock | 4695987 |
| 61 | Screw | 4685095 |
| 62 | Microswitch | 4695979 |
| 63 | Screw | 7975451 |
| 64 | Tie strap | 8552663 |
| 65 | Blind rivet | 4696894 (replaces 4556015) |
| 65 | Screw | 4767752 |
| 70 | Mounting strap | 5360540 |
| Tape | 4695870 | |
| Repair kit | 5360557 | |
| Bolt | 4555868 | |
| Washer | 4555991 | |
| Bushing | 4556114 | |
| Bushing | 4556130 | |
| Plug | 4556239 | |
| Bushing | 6952014 |
