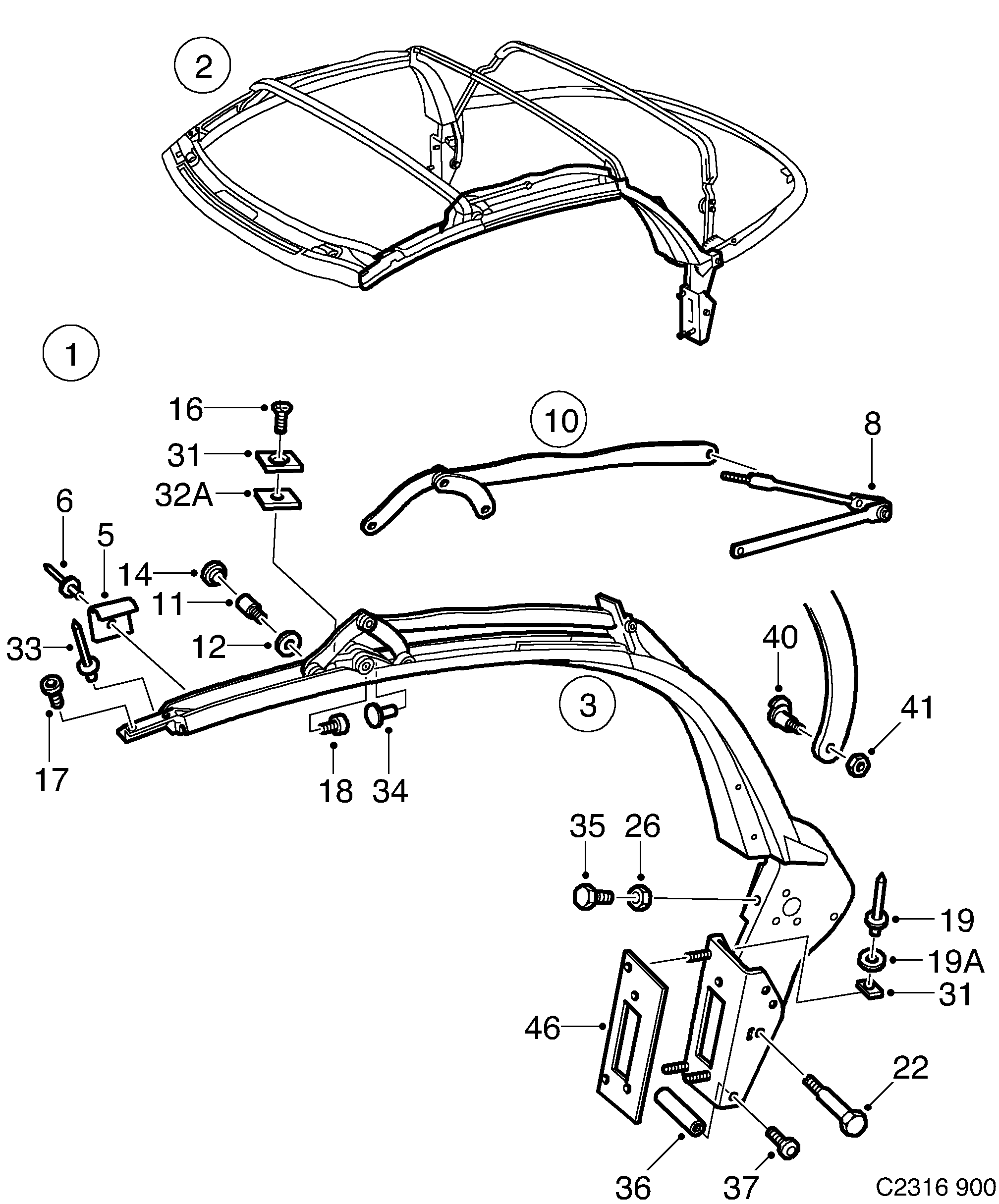

Group 8a Car body, external, section 390
| Pos | Article | Part No. |
|---|---|---|
| 1 | Top cloth | 4856217 |
| 1 | Top cloth | 4856225 |
| 2 | Top stack | 4857173 |
| 3 | Side member | 4857199 |
| 3 | Side member | 4857181 |
| 5 | Guide moulding | 4857652 |
| 5 | Guide moulding | 4857660 |
| 6 | Pop rivet | 4856860 |
| 10 | Control arm kit | 7497936 |
| 10 | Control arm kit | 7497944 |
| 11 | Bolt | 4555868 |
| 12 | Washer | 4555991 |
| 14 | Plug | 4556239 |
| 16 | Screw | 4555769 |
| 17 | Screw | 4555710 |
| 18 | Screw | 4555728 |
| 19 | Pop rivet | 4850608 |
| 19A | Washer | 4856878 |
| 22 | Bolt | 4555876 |
| 26 | Nut | 8074106 |
| 31 | Rubber stop | 4556221 |
| 32A | Spacer washer | 7497738 |
| 33 | Pop rivet | 4850731 |
| 34 | Stop | 4859773 |
| 35 | Screw | 8083933 |
| 36 | Reinforcement | 4850590 |
| 37 | Screw | 4856993 |
| 40 | Screw | 4856936 |
| 41 | Lock nut | 55557005 (replaces 7965767) |
| 46 | Adjusting plate | 4852836 (replaces 4557690) |
