Saab 900 1986-1989 Bow 1, 2 and 3 Convertible

Group 8a Car body, external, section 310

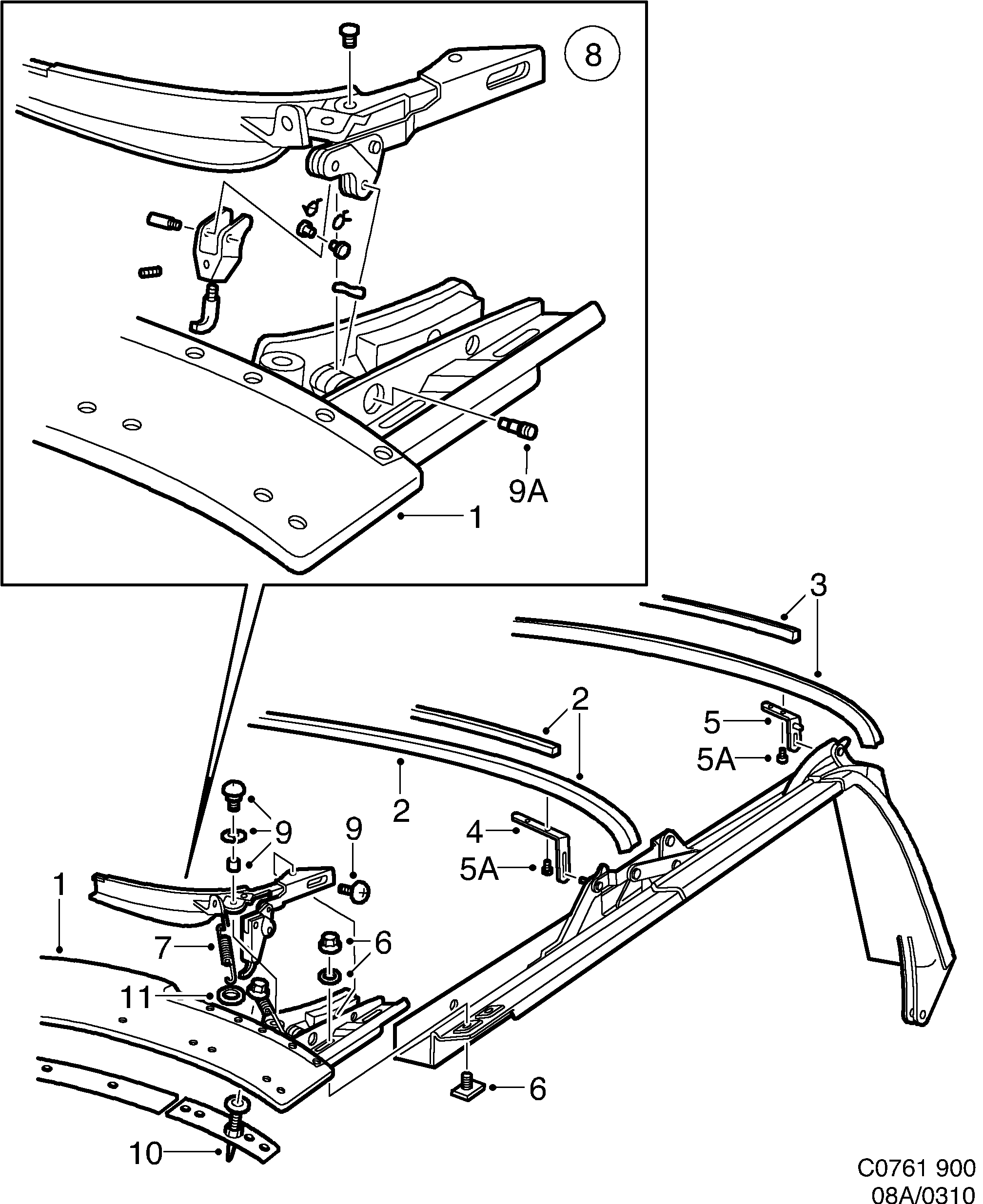

Saab 900 Bow 1, 2 and 3 Convertible diagram

Pos	Article	Part No.
	Roof	6935530
	Roof	6997639
	Roof	6952717
1	Bow	6951107
1	Bow	6952543
1	Bow	6952758
2	Bow	6950166
3	Bow	6950521
4	Bracket	6950042
5	Bracket	6950141
5A	Attaching screw	6950604
	Screw	6952121
6	Mounting kit	6950661
	Screw	6952188
	Washer	6952196
	Nut	6952204
7	Spring	6950463
7	Spring	6953921
8	Lock	6953319 (replaces 6953293)
8	Lock	6953301 (replaces 6953285)
	Hook	6952246
	Screw	6952253
	Pin	6952261
	Spring	6952279
	Rivet	6952329
	Bushing	4696829 (replaces 6952287)
	Hook attachment	6952295
	Bolt	6952170
9	Mounting kit	6950653
	Washer	6952139
	Screw	6952147
	Bushing	6952154
	Screw	6952162
10	Locating pin	6950687
10	Locating pin	6952832
	Washer	6952212
	Locating pin	6952220
	Locating pin	6952733
	Nut	6952238
	Nut	6952824
11	Washer	6996979
	Lock control	6951263
	Lock control	6952618
	Tensioner	6951271
