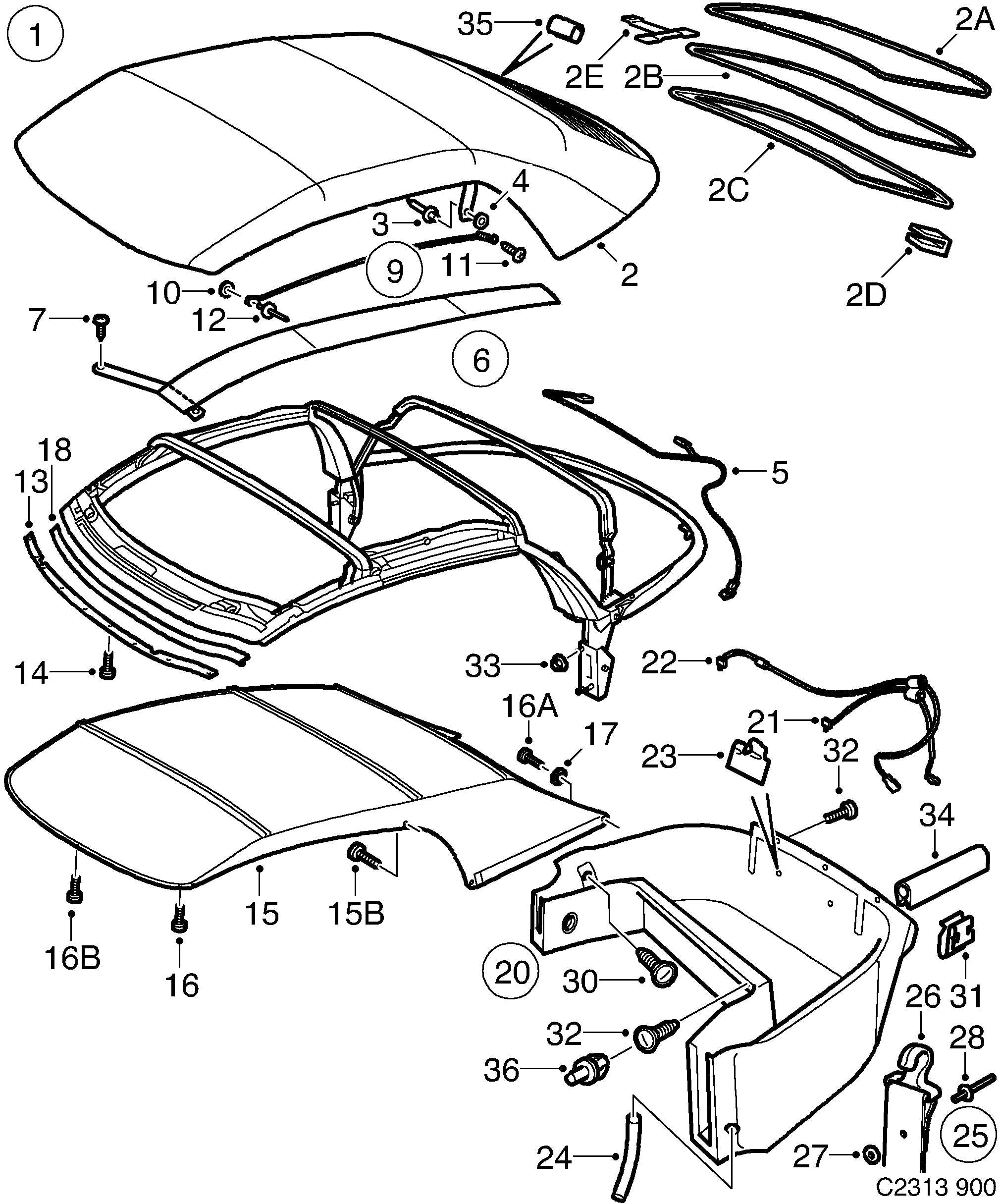

Group 8a Car body, external, section 300
| Pos | Article | Part No. |
|---|---|---|
| 1 | Top cloth | 4856217 |
| 1 | Top cloth | 4856225 |
| 2 | Top cloth | 5361480 |
| 2 | Top cloth | 5361498 |
| 2A | Rear window frame | 5111638 |
| 2B | Rear window | 4857009 |
| 2C | Seal | 5360128 |
| 2D | Clip | 4857272 |
| 2E | Connecting tab | 5182985 |
| 3 | Pop rivet | 4856860 |
| 4 | Washer | 4856878 |
| 5 | Cable harness | 4768644 |
| 6 | Stay pad | 4852430 |
| 6 | Stay pad | 4852448 |
| 7 | Screw | 4555777 |
| 9 | Cable | 4556528 |
| 10 | Washer | 8029944 |
| 11 | Screw | 4555769 |
| 12 | Pop rivet | 4850731 |
| 13 | Holder | 4697546 |
| 15 | Headlining | 5360813 |
| Tape | 4695870 | |
| 15B | Screw | 4767752 |
| Headlining | 4853651 | |
| Screw | 4856977 | |
| Washer | 4856985 | |
| 16 | Screw | 4555751 |
| 18 | Sealing shape | 4558532 |
| 20 | Cloth | 4509956 |
| 20 | Cloth | 4509964 |
| 20 | Cloth | 4509972 |
| 21 | Microswitch | 4603213 |
| 22 | Microswitch | 4603221 |
| 23 | Clip | 4603239 |
| 24 | Draining hose | 4510087 |
| 25 | Hook | 4741971 |
| 26 | Hook | 4510053 |
| 27 | Washer | 8073090 |
| 28 | Pop rivet | 8235178 |
| 30 | Clip | 92152407 (replaces 9668153) |
| 31 | Clip | 4087797 |
| 32 | Clip | 90283614 (replaces 4347449) |
| 33 | Nut | 90191908 (replaces 4345419) |
| 34 | Protecting moulding | 8564973 |
| 35 | Clip | 4853263 |
| 36 | Clip | 4823126 |
| Staple | 6935712 | |
| Tape | 9288127 |
