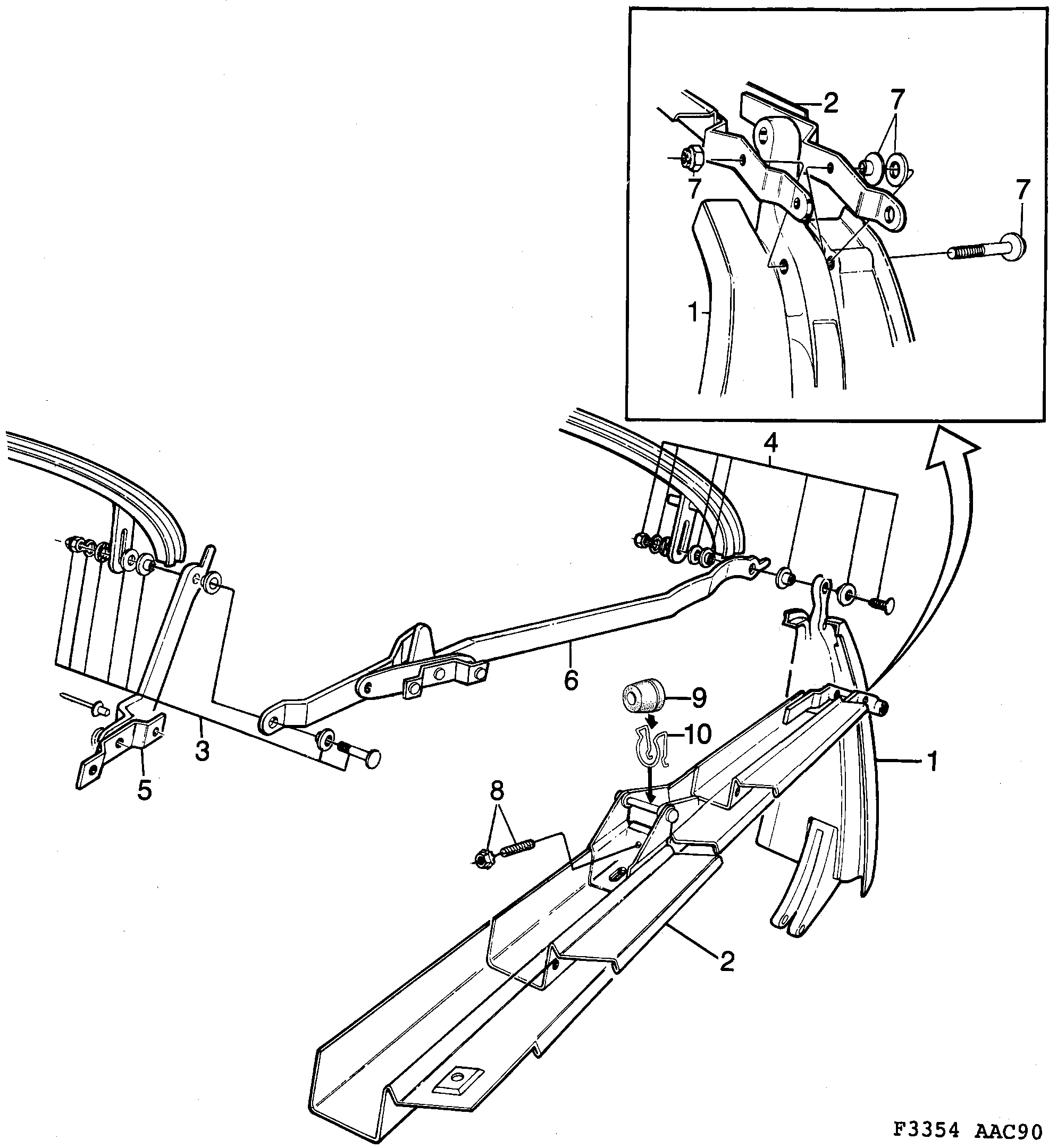

Group 8a Car body, external, section 290
| Pos | Article | Part No. |
|---|---|---|
| Roof | 6999536 | |
| Roof | 4154852 | |
| Roof | 4154928 | |
| 1 | Beam | 6950034 |
| 1 | Beam | 6950026 |
| 2 | Beam | 6950497 |
| 2 | Beam | 6950489 |
| 3 | Mounting kit | 6950679 |
| 4 | Mounting kit | 6950638 |
| Bushing | 6952352 | |
| Washer | 6952360 | |
| Washer | 6952378 | |
| Nut | 6952386 | |
| Screw | 6952410 | |
| Screw | 6952345 | |
| Bushing | 6952428 | |
| Bushing | 6953103 | |
| 5 | Link | 6950133 |
| 5 | Link | 6950125 |
| 6 | Link | 6951321 |
| 6 | Link | 6951313 |
| 7 | Mounting kit | 6950646 |
| Lock nut | 6952022 | |
| Bushing | 6952071 | |
| Screw | 6952394 | |
| Washer | 6952402 | |
| Bushing | 6953517 | |
| 8 | Adjustment screw | 6951305 |
| Nut | 6952436 | |
| Screw | 6952444 | |
| 9 | Rubber bushing | 7513724 |
| 10 | Clamp | 4153839 |
