Saab 900 1986-1989 Sun roof Electrically operated

Group 8a Car body, external, section 220

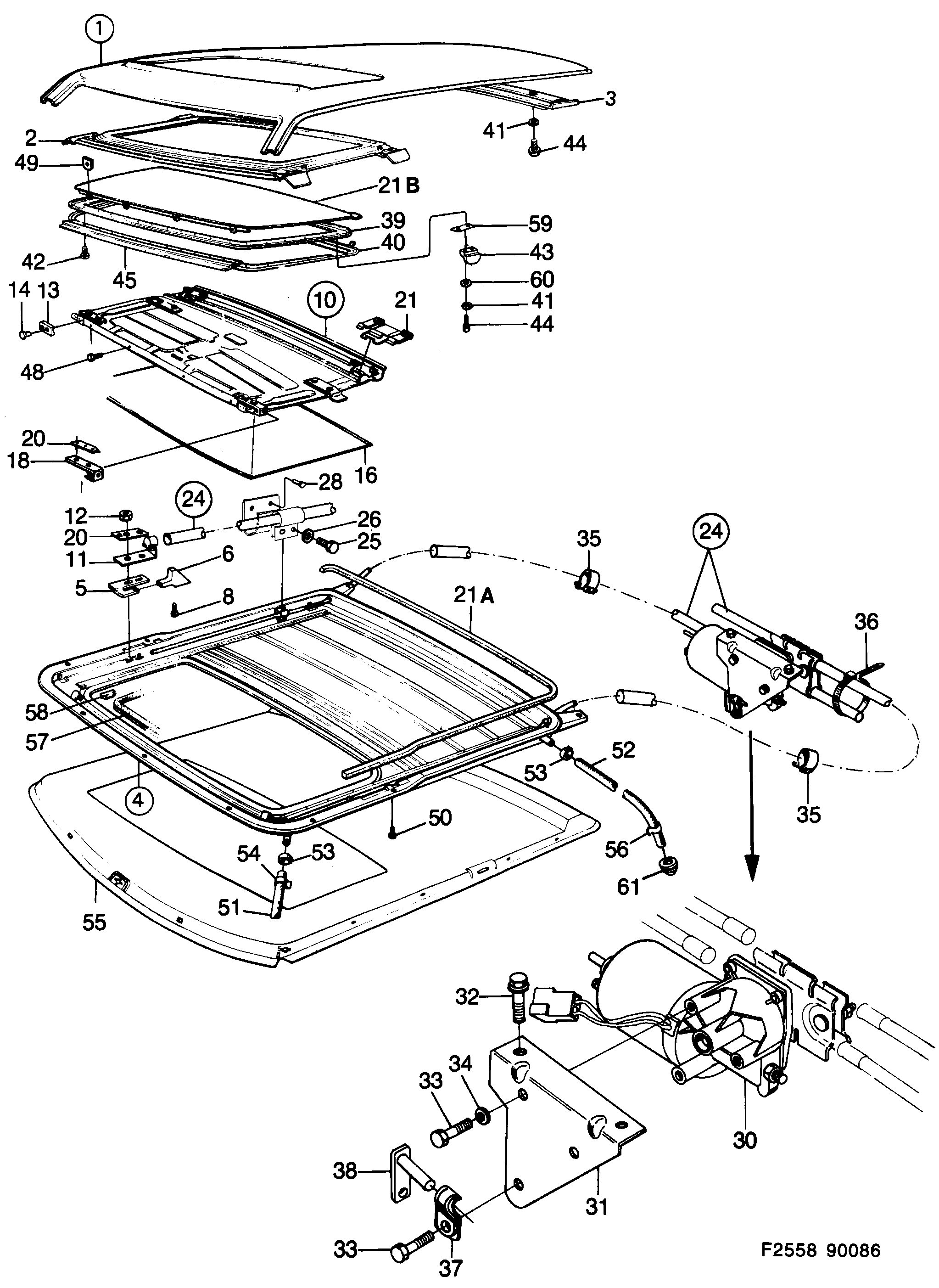

Saab 900 Sun roof Electrically operated diagram

Pos	Article	Part No.
1	Plate	8274433
2	Attachment frame	8283590
3	Rib	8283608
4	Frame	6917389
5	Spring	8248270
5	Spring	8248288
6	Slide dog	9292913
8	Screw	8249633
10	Panel	6917405
10	Panel	6975015
11	Connector	9280736
12	Nut	8288029
13	Stop	6917306
14	Rivet	9280835
16	Upholstery	6917264
16	Upholstery	6975031
18	Support	6937429
20	Washer	8286429
21	Spring	8288193
21A	Sealing strip	8249526
21B	Hatch	9289471
24	Cable	9237439
24	Cable	9237447
25	Screw	9281072
26	Star washer	7915549
28	Rivet	9281098
30	Electrical motor	8579211
31	Bracket	7651896
32	Screw	8267205
33	Screw	9238148
34	Spacer sleeve	9289604
35	Clamp	7108491
36	Tie strap	11900513 (replaces 7971880)
37	Tube clamp	8371551
38	Crank	9282609
39	Sealing strip	9289505
40	Bracket	6917348
42	Screw	7939804
43	Bracket	8248619
44	Screw	92151805 (replaces 8097586)
44	Screw	92151805 (replaces 8059230)
45	Bracket	6917355
48	Screw	7965684 (replaces 7922289)
49	Spacer	8288243
50	Screw	7528953 (replaces 7971757)
51	Draining hose	9223736
52	Draining hose	9223744
52	Draining hose	9223751
52	Draining hose	9227554
53	Hose clamp	90572589 (replaces 7970056)
54	Clip	9228149
54	Clip	9228156
56	Hose clamp	8266843
57	Moulding	9836412
58	Clip	9426420
59	Washer	32000431 (replaces 8029936)
61	Bushing	9223991
