Saab 900 1986-1989 Sun roof Hand-operated

Group 8a Car body, external, section 190

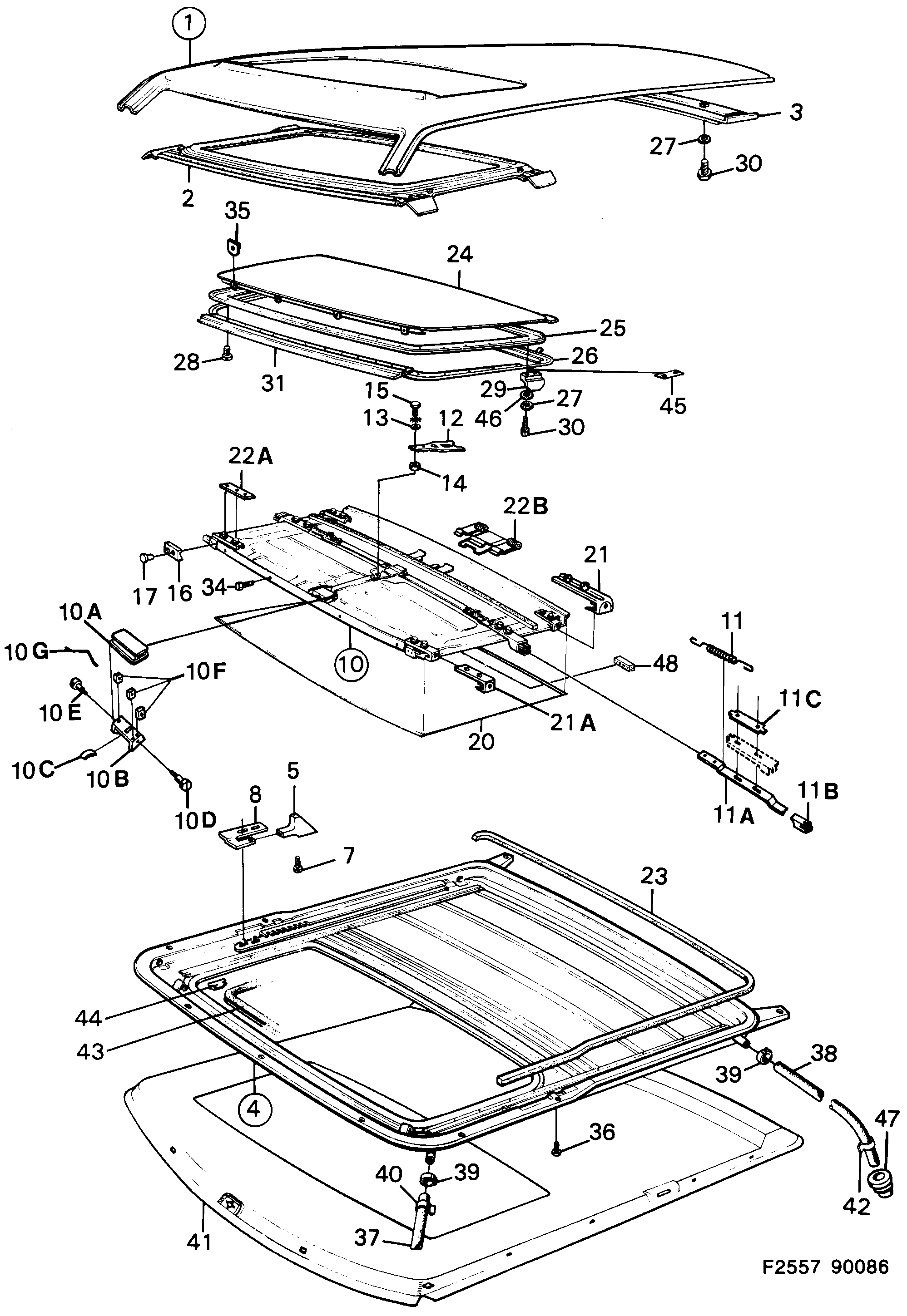

Saab 900 Sun roof Hand-operated diagram

Pos	Article	Part No.
1	Plate	8274433
2	Attachment frame	8283590
3	Rib	8283608
4	Frame	6917223
5	Slide dog	9293010
7	Screw	8249633
8	Spring	8248270
8	Spring	8248288
10	Panel	6915920
10	Panel	6975064
10A	Cover	6917322
10B	Handle	6917330
10C	Spring	8248502
10D	Screw	8248601
10E	Screw	8248726
10F	Nut	8249757
10G	Clamp	8248494
11	Spring	8248577
11A	Latch	8248775
11B	Slide dog	8248437
11C	Striker plate	8288599
12	Lock arm	8248585
13	Washer	8249724
14	Nut	8249682
15	Screw	8249740
16	Stop	6917306
17	Rivet	8248593
20	Upholstery	6917264
20	Upholstery	6975031
21	Support	6937452
21A	Support	6937429
22A	Washer	8286429
22B	Spring	8288193
23	Sealing strip	8249526
24	Hatch	9289471
25	Sealing strip	9289505
26	Bracket	6917348
27	Star washer	7915549
28	Screw	7939804
29	Bracket	8248619
30	Screw	92151805 (replaces 8097586)
30	Screw	92151805 (replaces 8059230)
31	Bracket	6917355
34	Screw	7965684 (replaces 7922289)
35	Spacer	9233537
36	Screw	7528953 (replaces 7971757)
37	Draining hose	9223736
38	Draining hose	9223744
38	Draining hose	9223751
38	Draining hose	9227554
39	Hose clamp	90572589 (replaces 7970056)
40	Clip	9228149
40	Clip	9228156
42	Hose clamp	8266843
43	Moulding	9836412
44	Clip	9426420
45	Washer	32000431 (replaces 8029936)
47	Bushing	9223991
48	Absorber	6937759
