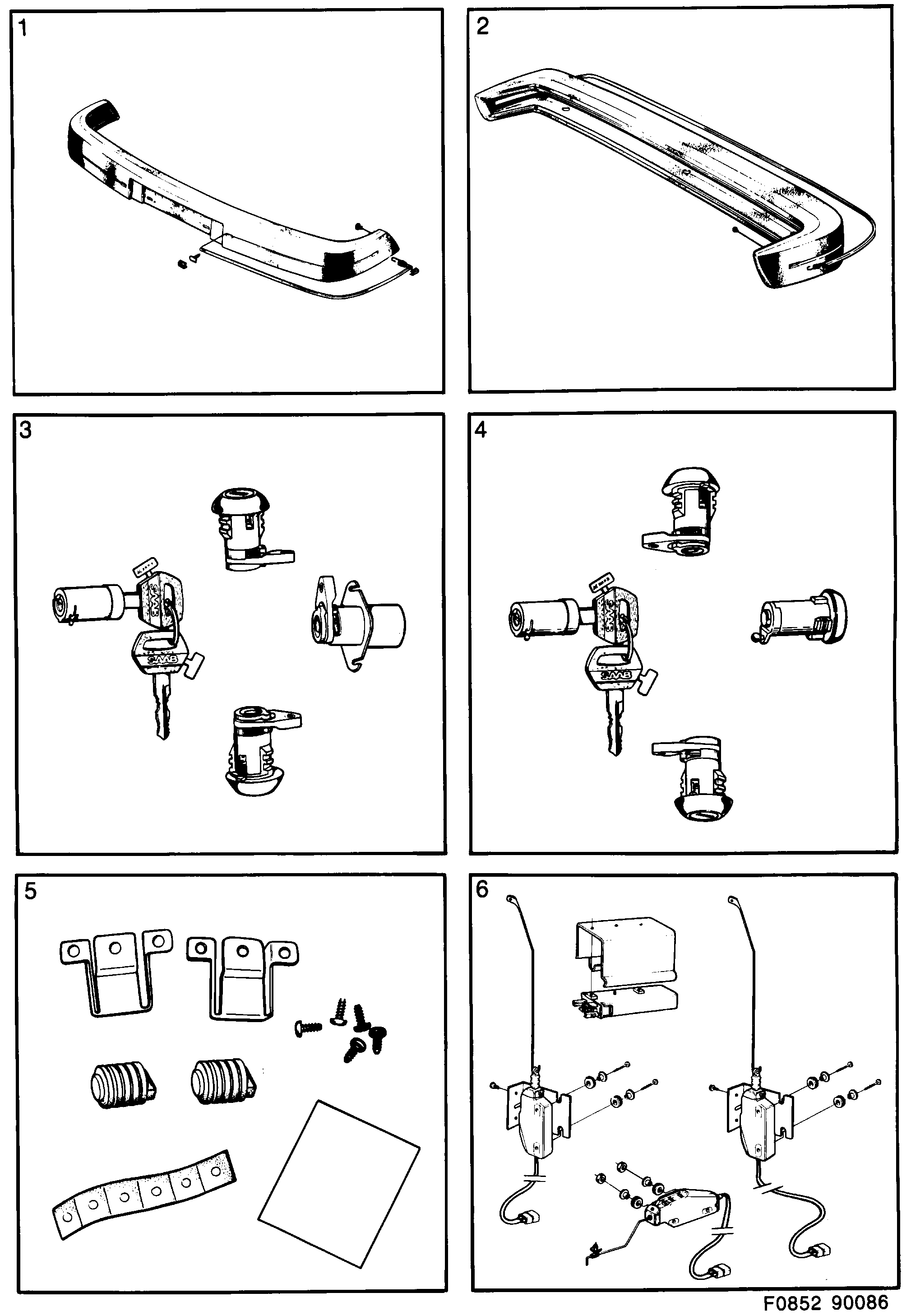

Group 8a Car body, external, section 1810
| Pos | Article | Part No. |
|---|---|---|
| 1 | Decor strip | 8283863 |
| Decor strip | 9292202 | |
| Spring | 9292228 | |
| Clip | 9291998 | |
| Rivet | 7973308 | |
| 2 | Decor strip | 8283871 |
| Decor strip | 9291923 | |
| 3 | Lock cylinder set | 9227927 |
| 4 | Lock cylinder set | 9228008 |
| 4 | Lock cylinder set | 9231002 |
| 5 | Buffer | 6916050 |
| Bracket | 6914576 | |
| Buffer | 6914584 | |
| Screw | 7922727 | |
| Washer | 9230293 | |
| Guard | 6943989 | |
| 6 | Central lock | 8547085 |
| Control device | 8591216 | |
| Electrical motor | 8591224 | |
| Pull rod | 8579914 | |
| Pull rod | 8579922 | |
| Bracket | 8579906 | |
| Pull rod | 8598245 | |
| Pull rod | 8598252 | |
| Bracket | 8598229 | |
| Bracket | 8598237 | |
| Screw | 8059529 | |
| Bushing | 8573966 | |
| Sleeve | 8573958 | |
| Screw | 7973597 | |
| Pull rod | 8574501 | |
| Bracket | 8575391 | |
| Screw | 7972441 | |
| Electronic unit | 9529975 | |
| Attaching brace | 8591414 | |
| Screw | 7971344 | |
| Protection | 8591422 | |
| Tie strap | 11900513 (replaces 7971880) | |
| Clamp | 7108491 | |
| Clamp | 9730995 | |
| Cable harness | 8591307 | |
| Cable harness | 8546939 | |
| Cable harness | 8591273 | |
| Cable harness | 8546897 | |
| Cable harness | 8591240 | |
| Connector housing | 9501685 | |
| Connector housing | 9503277 | |
| Connector housing | 9503319 | |
| Connector housing | 9503327 | |
| Connector housing | 8561623 | |
| Protecting bushing | 7326093 | |
| Cable terminal | 8503286 | |
| Clip | 8565855 | |
| Attaching brace | 9564170 | |
| Spacer washer | 9564345 | |
| 6 | Central lock | 8547127 |
| Cable harness | 8547168 | |
| Screw | 8059537 | |
| 6 | Central lock | 8547119 |
| Electrical motor | 8591232 | |
| Nut | 8074098 | |
| Cable harness | 8546913 | |
| 6 | Central lock | 8547150 |
| Handle | 6941306 | |
| 6 | Central lock | 8547093 |
| Pull rod | 8578221 | |
| Clip | 8461675 | |
| Bracket | 8598211 | |
| Bracket | 9551151 | |
| Sleeve | 7085541 | |
| Cable harness | 8591281 | |
| Cable harness | 8546905 | |
| 6 | Central lock | 8547135 |
| Screw | 8019895 | |
| Screw | 92153146 (replaces 7972607) | |
| 6 | Central lock | 8547101 |
| Electronic unit | 8591208 | |
| 6 | Central lock | 8547143 |
