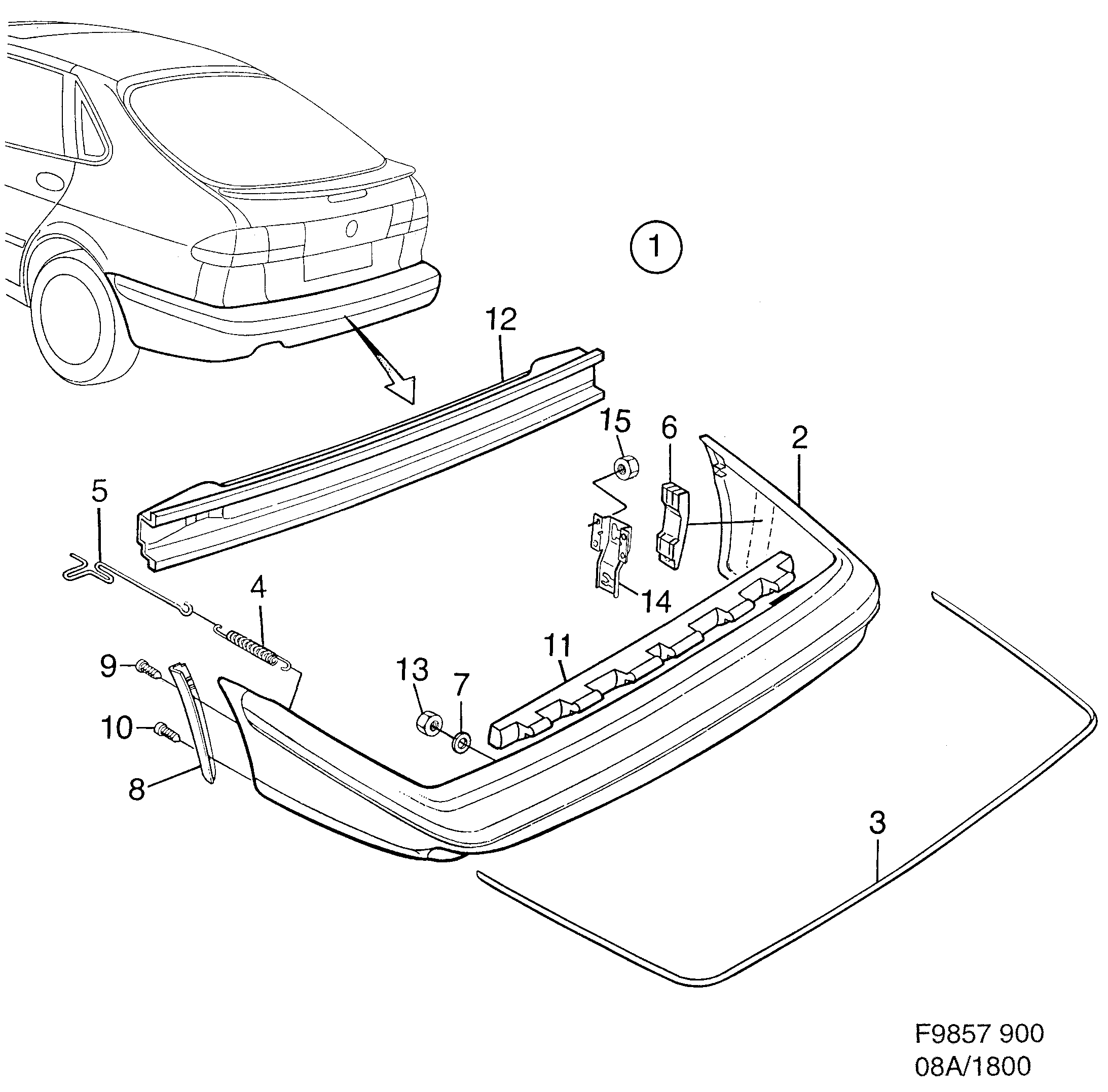

Group 8a Car body, external, section 1800
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 4480117 |
| 1 | Bumper | 4953097 |
| 1 | Bumper | 4240107 |
| 2 | Cover | 4480125 |
| 2 | Cover | 4953154 |
| 2 | Cover | 4248605 |
| 3 | Decor strip | 4248795 |
| 3 | Decor strip | 4914834 |
| 4 | Tension spring | 4399770 |
| 5 | Bracket | 4481057 |
| 6 | Retainer | 4398616 |
| 6 | Retainer | 4398624 |
| 7 | Seal | 9234055 (replaces 6992325) |
| 8 | Cover | 4480778 |
| 8 | Cover | 4480760 |
| 9 | Screw | 92150118 (replaces 7970536) |
| 9 | Pop rivet | 4481834 |
| 10 | Screw | 7968084 |
| 11 | Support | 4484960 |
| 12 | Bumper rail | 4373510 |
| 13 | Nut | 7967979 |
| 14 | Bracket | 4398632 |
| 14 | Bracket | 4398640 |
| 15 | Hexagon nut | 11900452 (replaces 7977952) |
